Getting Connected

Unpacking
Prior to beginning the connection process, carefully remove the unit from its shipping box. It is recommended to
reserve the original shipping material in the event that the unit needs re-shipping. Included in the box you will find
the Sub-1200, this instruction manual and an AC power cord.
Subwoofer connections
There are a couple of methods for connecting your Sub-1200 to your audio system. One method uses MDP
speaker cables, the other method uses RCA interconnect cables. Looking at the rear panel of the Sub-1200, you
will see two sets of MDP speaker terminals, one labeled 'HI-LEVEL IN', the other 'HI-LEVEL OUT', and two sets
of RCA jacks labeled 'LINE IN' and 'LINE OUT'. The configuration of your existing system will determine how you
will connect the Sub-1200.

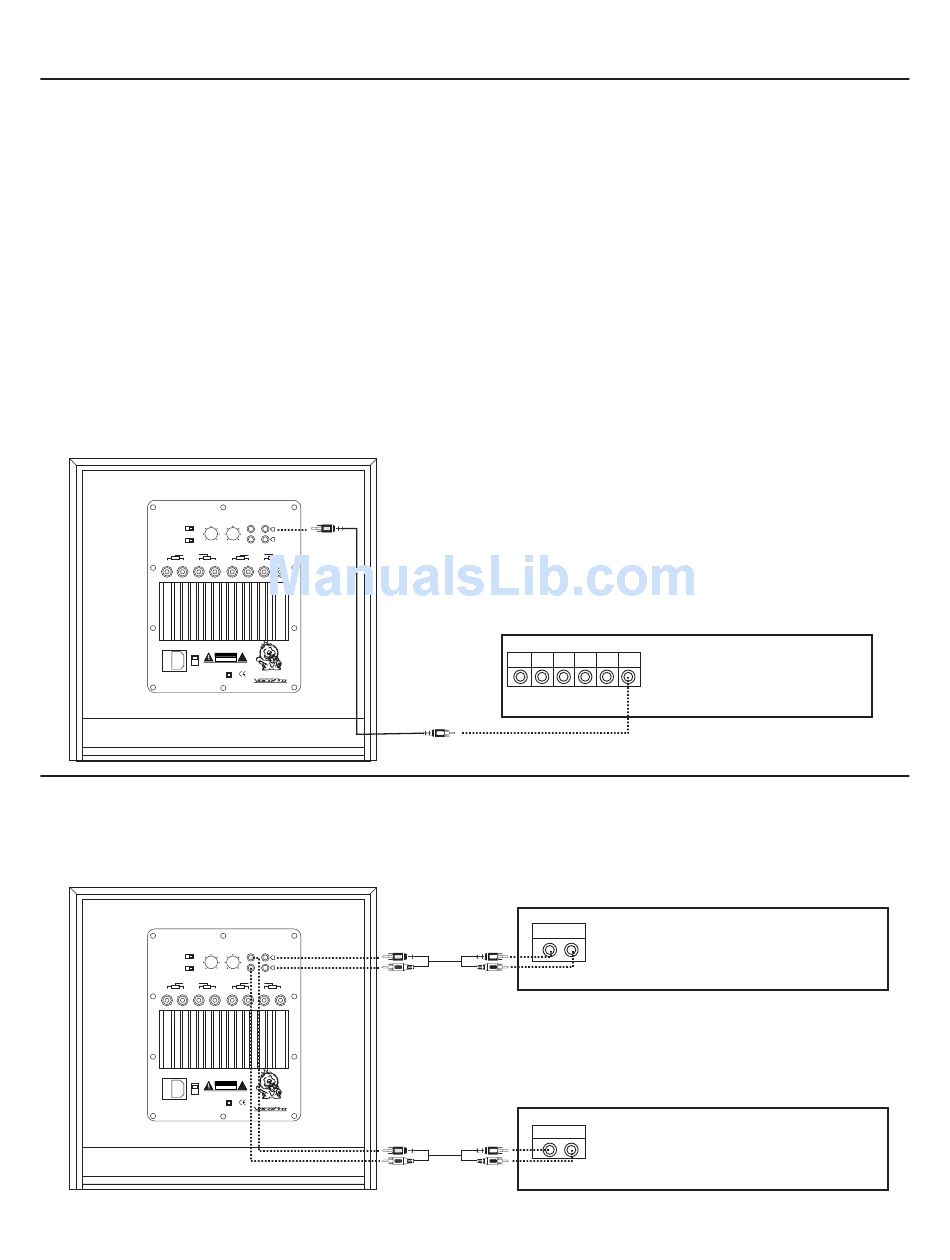

Connecting to a Dolby Digital or DTS system
All Dolby Digital and/or DTS processors have a subwoofer/LFE output. If you decide to use a subwoofer/LFE
output connection (mono) to the Sub-1200, connect an RCA-plugged patch cable from the subwoofer/LFE output
to either the "L" or "R" channels of the 'LINE IN' jacks (RCA) on the Sub-1200.
0 PHASE 180
OFF AUTO
POWER
HI LEVEL OUT
LEFT
+ -
Connecting to a system with separate components
If you only have one set of pre-amp outputs on your amplifier/mixer and need to send the signal to the Sub-1200
as well as another amplifier/mixer, first send the signal to the Sub-1200 via the 'LINE IN' (RCA) jacks, and then
from the 'LINE OUT' (RCA) jacks, connect a patch cable to the 'AUDIO INPUT' jacks on your amplifier/mixer.
0 PHASE 180
OFF AUTO
POWER
HI LEVEL OUT
LEFT
+ -
7
R
ON
L
LEVEL CROSSOVER
LINE OUT LINE IN
FREQUENCY
HI LEVEL IN
RIGHT LEFT RIGHT
- + + - - +
115V
CAUTION
!
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
230V
LA VERNE CALIFORNIA U.S.A.
WWW.VOCOPRO.COM
R
ON
L
CROSSOVER
LEVEL
LINE OUT LINE IN
FREQUENCY
HI LEVEL IN
RIGHT LEFT RIGHT
- + + - - +
115V
CAUTION
!
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
230V
LA VERNE CALIFORNIA U.S.A.
WWW.VOCOPRO.COM
Line In
FL FR SL SR C S
Subwoofer Out
AUDIO OUT
Line In
Line Out
AUDIO IN
AMP/MIXER
AMP/MIXER
AMP/MIXER
