FEATURES:
• 200 Watts of Powerful Low-end Bass for Rich and Full-spectrum Audio Experience
• 15" Long-throw Coated Woofer for Great Sound and Durability
• Adjustable Crossover for Variable Low-pass Filtering
• Low-level RCA & High-level MDP Inputs/Outputs
• Dual-port Enclosure for Efficient Release of Acoustic Energy and Thermal Build-up
• Small Footprint Design and Recessed Handles for Easy Mobility and Placement
• Feel the Music with Very Low-frequency Performance to 40hz
• Full-toned, Low-distortion and Accurate Low-end Bass Response

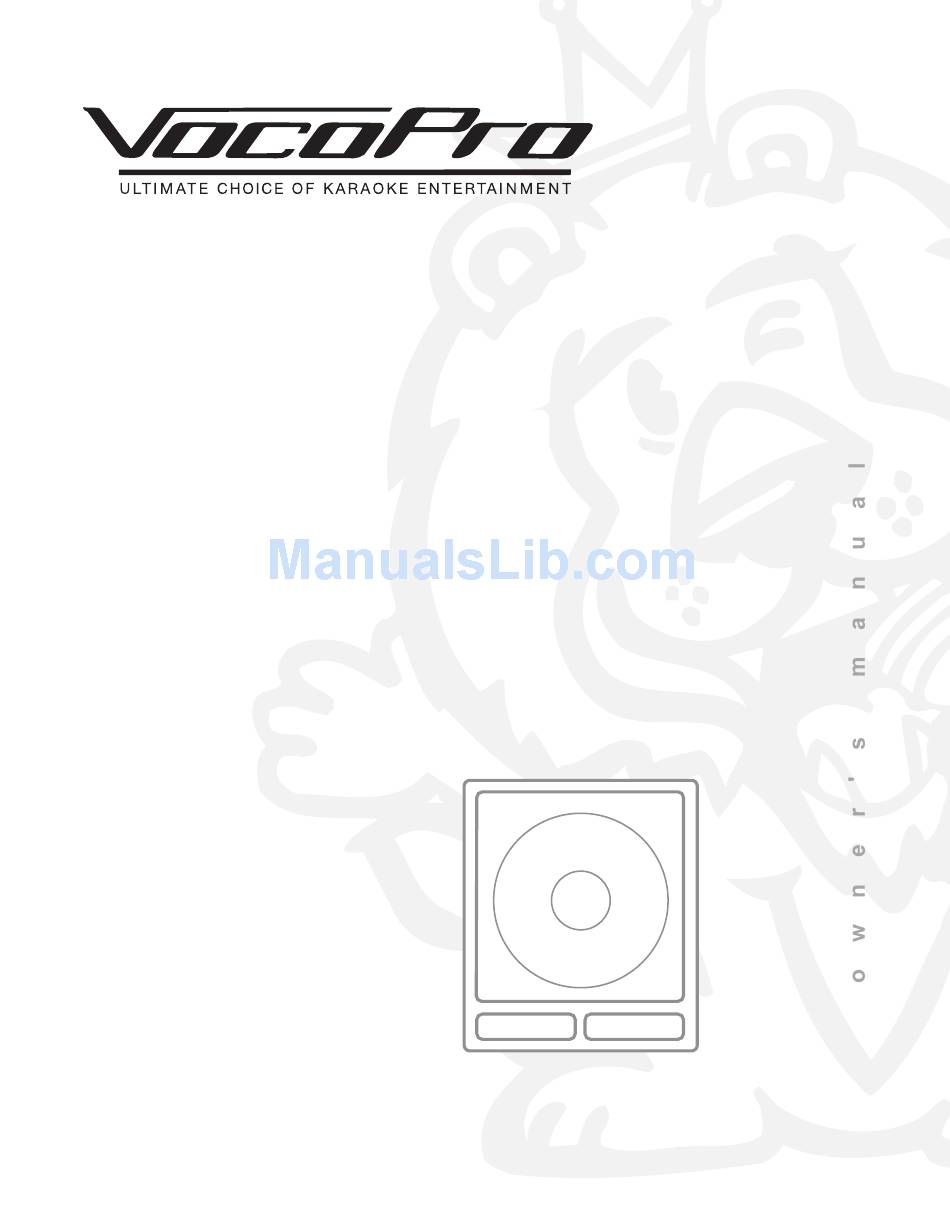

SUB-1500
200W Powered Subwoofer
Advertisement
Table of Contents
Related Manuals for VocoPro SUB-1500
Summary of Contents for VocoPro SUB-1500
- Page 1 • Dual-port Enclosure for Efficient Release of Acoustic Energy and Thermal Build-up • Small Footprint Design and Recessed Handles for Easy Mobility and Placement • Feel the Music with Very Low-frequency Performance to 40hz • Full-toned, Low-distortion and Accurate Low-end Bass Response SUB-1500 200W Powered Subwoofer...
-
Page 2: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 3: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 4: Listening For A Lifetime
Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 5: Table Of Contents
Welcome………………...…………………………….….…………………………... Listening for a Lifetime.……………………………….……………………... Before Getting Started….………………………………………………………... Understanding Subwoofers... Placement Precautions.………………………………….…………... Getting Started...……………………………………... Importance of Location...…………………………………………... Connecting the SUB-1500…………………….……………... Rear Panel Description and Controls... Powering On Test... Advanced Operations...……………………………………... Troubleshooting……………………………………………………………………... Specifications…………………………………………………………………………... SUB-1500 Features • 200 Watts of Powerful Low-end Bass for Rich and Full-spectrum Audio Experience •... -
Page 6: Before Getting Started
The SUB-1500 features a low distortion internal amplifier, a built-in low-pass crossover, a phase switch, high and low level inputs/outputs and a dual voltage switch. The SUB-1500 is designed to handle a variety of connection options, allowing users increased freedom in system integration. - Page 7 Before Gettin Started (cont.) Installation Environment 1. Water and Moisture - Do not use this unit near water - for example near an aquarium or the like. Damp basements should also be avoided. 2. Condensation - Internal moisture may form in the following cases: •...
-
Page 8: Understanding Subwoofers
Understanding Subwoofers Before we get into finding a location for the SUB-1500 and making any connections, we want to be sure we explain some fundamental principles about subwoofer performance. Simply hooking up a subwoofer to an audio system like a loudspeaker can significantly compromise the performance of the subwoofer, and at times even make the system sound worse. -
Page 9: Placement Precautions
The SUB-1500 is not magnetically shielded and may damage a TV if placed in very close proximity. If you suspect or see any color distortion anywhere on a nearby TV, the SUB-1500 may be too close and should be moved away from the TV until the color distortion disappears. -
Page 10: Getting Started
Getting Started Unpacking After unpacking the SUB-1500, you will have the SUB-1500 subwoofer, an AC mains power cable and this quick start guide. It is recommended to keep the original packaging material in the case that re-shipping becomes necessary. SUB-1500... -
Page 11: Importance Of Location
Symmetrical Placement Avoid putting the SUB-1500 the same distance from two walls. For example, if you have a 20' wide room, don't put the SUB-1500 10' from each wall. Similarly, don't put the SUB-1500 at equal distances from the floor to ceiling. - Page 12 However, if you want to place your subwoofer in the proper position, read on. The quickest way to place your SUB-1500 is to wire it up and place it in your favorite listening position, or the position where you'll be listening most of the time.
-
Page 13: Connecting The Sub-1500
Benefit: You are able to connect and benefit from the SUB-1500 without the need of an amplifier with RCA pre-outs. Use if: • Your amp or receiver does not offer line-level or pre-out jacks. -
Page 14: Connecting The Sub-1500
Connecting to a Device with Separate Components If you only have one set of pre-outs on your receiver/mixer and need to send the signal to the SUB-1500 and another device, first send the signal to the SUB-1500 via the LINE IN (RCA) jacks. Next, from the LINE OUT (RCA) jacks, connect a patch cable to the AUDIO INPUT jacks on your other external device. -
Page 15: Rear Panel Description And Controls
CORRECTLY PRIOR TO USING THE SUB-1500, YOU MAY DAMAGE THE UNIT AND VOID YOUR WARRANTY. SELECT 110V for North American based power and 240V for European based power. 10. AC MAINS terminal - For connecting the SUB-1500 to your AC power outlet. -
Page 16: Powering On Test
With the VOLUME control at minimum (fully counter-clockwise) plug your SUB-1500's power cord into any AC compatible wall outlet. The red power indicator LED will stay on as long as the SUB-1500 is plugged-in. If for any reason you do not want your SUB-1500 on, simply place it in AUTO-MODE by moving the switch to AUTO to have it turn itself off after 10 minutes of inactivity, or unplug it. -
Page 17: Advanced Operations
So, again, when the phasing is right, all you need to do is to adjust the SUB-1500 volume level for adjustments. -
Page 18: Troubleshooting
Troubleshooting Problem • No Sound Only from Subwoofer • Too Little Bass • Too Much Bass • Hum Solution • Check the subwoofer's volume setting and all connections. If your receiver has a subwoofer on/off or variable subwoofer output level control, ensure that the subwoofer option it is turned on and that the output level is at maximum.
