CE Kit
Groundsmaster
Model No. 30392
Note: Determine the left and right sides of the machine from the normal operating position.
Safety

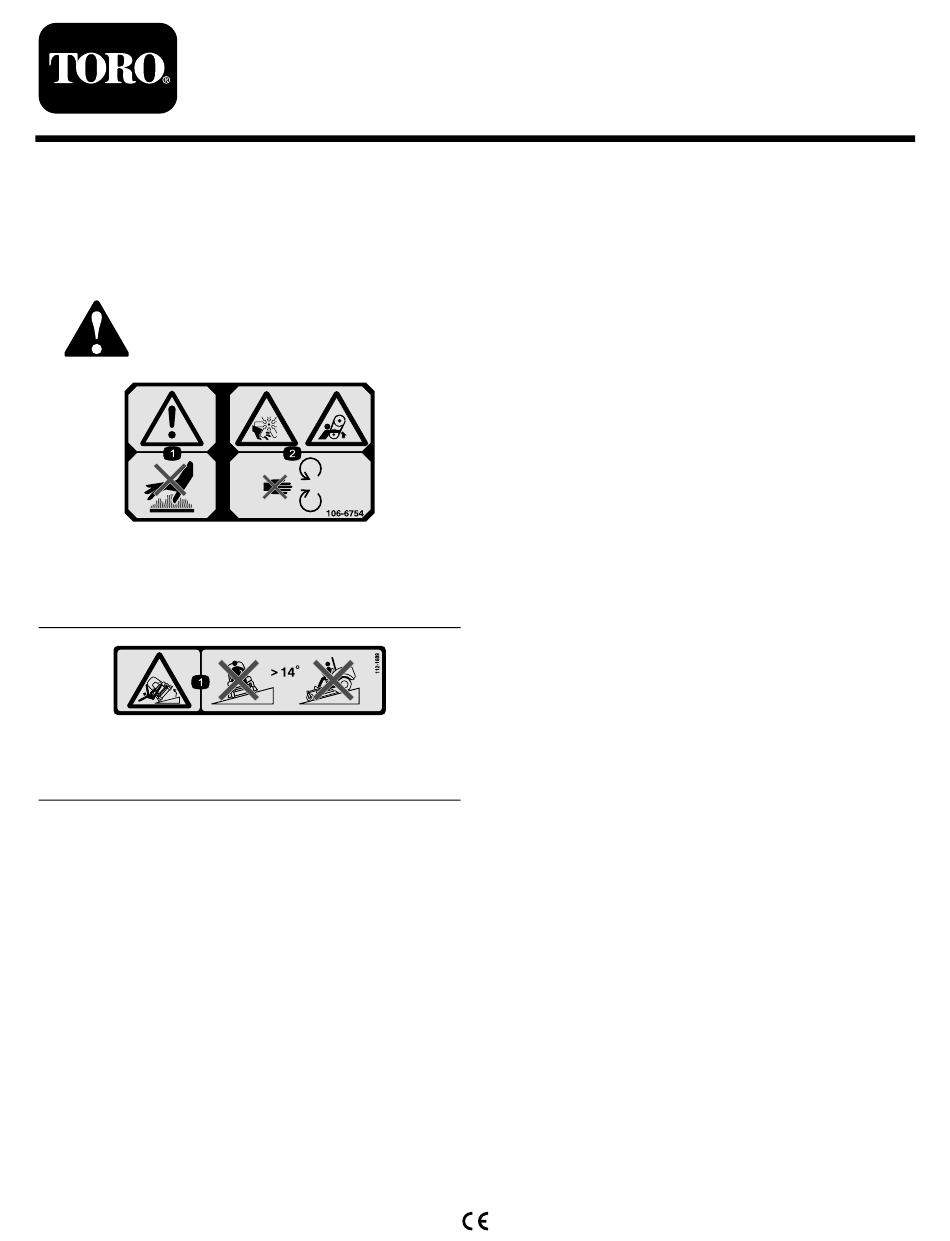

Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of
potential danger. Replace any decal that is damaged or lost.
106-6754
1. Warning—do not touch the hot surface.
2. Cutting/dismemberment hazard, fan and entanglement
hazard, belt—stay away from moving parts.
112-1689
1. Tipping hazard—do not operate on slopes greater than 14
degrees.
© 2009—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
7200/7210 Traction Unit
Register at www.Toro.com.
Form No. 3363-652 Rev A
Installation Instructions
Original Instructions (EN)
Printed in the USA.
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Toro 30392
Summary of Contents for Toro 30392
- Page 1 Form No. 3363-652 Rev A CE Kit Groundsmaster ® 7200/7210 Traction Unit Model No. 30392 Installation Instructions Note: Determine the left and right sides of the machine from the normal operating position. Safety Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
-
Page 2: Table Of Contents
Installation Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Latch locator bracket Bolt (5/16 x 3/4 inch) Lock nut (5/16 inch) Locking latch Install the locking latch. Hood support Bolt (5/16 x 2 inches) Washer (5/16 inch) Lock nut (5/16 inch) Floor locking latch... -
Page 3: Procedure
Installing the Hood Locking Latch Parts needed for this procedure: Latch locator bracket Bolt (5/16 x 3/4 inch) Lock nut (5/16 inch) Locking latch Hood support Bolt (5/16 x 2 inches) Washer (5/16 inch) Lock nut (5/16 inch) Procedure 1. Unlatch and raise the hood. Use the prop rod to hold it in place. - Page 4 G004787 Figure 1 3. Latch locator bracket 1. Hole in the face of the metal frame 5. Locking latch, catch facing forward support 2. Lock nut (5/16 inch) 4. Bolt (5/16 x 3/4 inch) 6. Locking nut 10. Install the catch plate to the left hand frame member, directly below the installed latch, at the existing holes as shown in Figure 2.
-
Page 5: Washer (5/16 Inch)
Figure 2 1. Left frame member 4. Washer (5/16 inch) 2. Catch plate 5. Lock nut (5/16 inch) Figure 3 3. Bolt (5/16 x 2 inches) 1. Hole in floor plate 3. Latch 2. Locking latch Note: The bolts should be approximately centered in the slots of the catch plate. -
Page 6: Clamp
2. Measure up, from the support edge, along the rail 5. With the hood handle in the approximate position 1-1/2 inches (3.8 cm) (Figure 4). Install the clamp shown in Figure 4 mark the second spot to drill 4.8 around the rail at this location. inches (12.2 cm) from the initial drilled hole. -
Page 7: Bolt (5/16 X 1-1/4 Inches)
Securing the Belt Covers Securing the Seat Plate Parts needed for this procedure: Parts needed for this procedure: Bolt (5/16 x 1-1/4 inches) Bolt (5/16 x 1-1/4 inches) Retaining nut (5/16 inch) Procedure Push nut Install a bolt in the seat plate to the secure it. Locate the Procedure hole in the front, right side of the seat plate, in front of the Operator’s Manual tube (Figure 6). -
Page 8: Safety Decal, 112-1689
Installing the Decals Parts needed for this procedure: Safety decal, 112-1689 Safety decal, 106-6754 Procedure Install each decal as follows: 1. Thoroughly clean the area where you will install the decal. G004790 Figure 8 2. Dampen the area with water or mildly soapy water. Install over existing decal at location shown 3.
