Specifications

Specification
WM-345 (NTSC)
Image Device
1/3˝ Interline CCD
Number of Pixels
(H) 510 x 492
Scanning System
525 Lines, 60 Field/Sec
Sync System
Internal Synchronization
Horizontal Resolution
330 TV Line
Video Output
1 Vp-p 75 Ω
B.L.C.
Back Light
Compensation (auto)
White Balance
Auto White Balance
(auto)
Minimum Illumination
1 Lux (F: 2.0)
Electronic Shutter
1/60 ~ 1/100,000 Sec
Built-In Lens
F: 2.97 (option)
Power Consumption
12 V ± 10% DC, 100 mA
Operation Temp.
-10°C ~ +50°C,
RH 95% Max.
Storage Temp.
-20°C ~ +60°C,
RH 95% Max.
Weight
Approx. 134 g
Housing
Aluminum
Accessories
Angle Controller Ring – 3 sets Angle Controller Ring – 3 sets
Fixing Ring – 3 pcs.
Fixing Tube – 1 pc.
2
WM-345C (Pal)
1/3˝ Interline CCD
(H) 500 x 582
625 Lines, 50 Field/Sec
Internal Synchronization
330 TV Line
1 Vp-p 75 Ω
Back Light
Compensation (auto)
Auto White Balance
(auto)
1 Lux (F: 2.0)
1/50 ~ 1/100,000 Sec
F: 2.97 (option)
12 V ± 10% DC, 100 mA
-10°C ~ +50°C,
RH 95% Max.
-20°C ~ +60°C,
RH 95% Max.
Approx. 134 g
Aluminum
Fixing Ring – 3 pcs.
Fixing Tube – 1 pc.

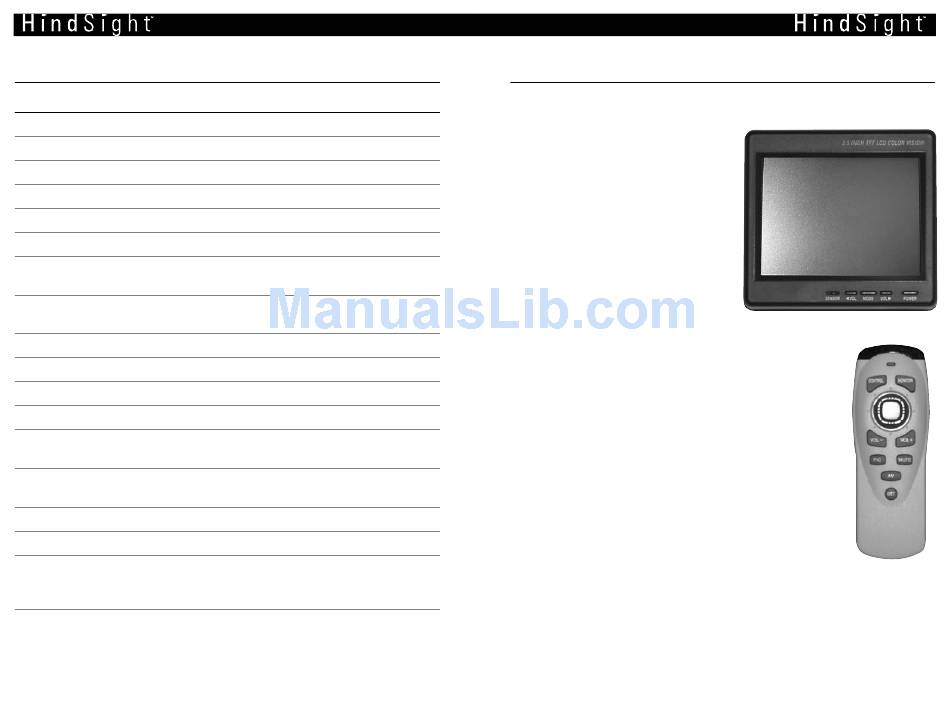

Controls

Monitor Controls:

Sensor: Remote sensor for the

remote control.

Volume (-): Adjusts down with each
function in the menu.
Mode: Switches through the
functions in the menu to select
the desired screen adjustments.
Volume (+): Adjusts up with each
function in the menu.
Power: Turns the monitor on and off.
Remote Control:
Screen Power: Press the 'POWER' button to illuminate
the LCD screen.
Control: Pressing the 'CONTROL' button will allow
source selection by pressing the 'AV' button.
Monitor: Pressing the 'MONITOR' button allows the
following adjustments to be selected.
Adjusting the screen options:
Screen Adjustments: Press the 'PIC' button to select the
desired screen adjustment, then press the 'VOL (-)' or 'VOL (+)' to
change the setting. Each press of the 'PIC' button will cycle to the next
adjustment in the following order: Contrast, Brightness, Color, Tint, Blue
Screen, Power Direct, Color System, Mirror Mode, Mode Selector.
Contrast: Adjusts the differentiation between light and dark.
Brightness: Adjust the overall Brightness of the LCD display.
