Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
If odour continues, discontinue use and
contact your local dealer.

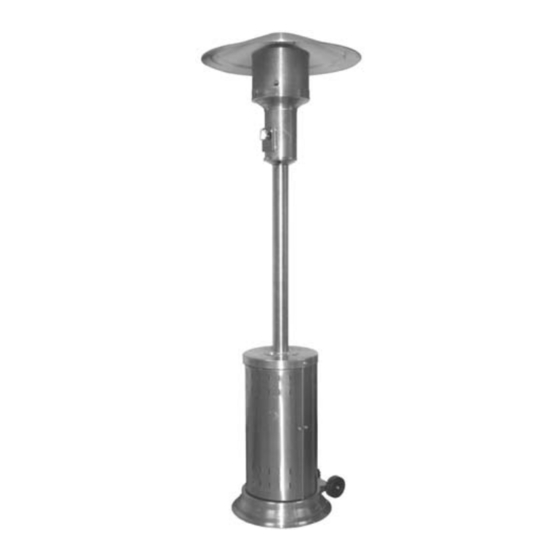

Outback® Patio Heaters
For outdoor use only.
Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually. Check the hose connections are tight and leak test each time
you reconnect the gas bottle.
Patio Heaters
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
A regulator of an approved type is
required to operate this unit. A
regulator of 28-30mbar must be
used for butane and 37mbar for
propane. For more details on
compatible regulators
patio heater, please contact your
local gas supplier.
for
your
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH04 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outback PH04

  • Page 1 Patio Heaters Outback® Patio Heaters A regulator of an approved type is required to operate this unit. A regulator of 28-30mbar must be used for butane and 37mbar for propane. For more details on compatible regulators your patio heater, please contact your local gas supplier.
  • Page 2: Parts List

    A. Parts List Code Part Heater Components Reflector Burner Assembly Knob* Control Panel* Ignition Pushbutton* Hose* Post Table Half Door Base Top Base Support Base Hull Base Wheel Locknut Wheel Wheel Axle Washer Wheel Axle Bracket Hardware (For more details, see Hardware Reference diagram) M6x20 Hex Bolt Large Plain Washer...
  • Page 3 B. Hardware Reference Diagram Specifications subject to change without prior notice. Part B1 (7pcs), Part B2 (7pcs), Part B3 (7pcs) Part B7 (8pcs) Part B4 (6pcs), Part B5 (6pcs) Part B6 (6pcs) Part B1 (1pc) Part B2 (2pcs) Part B3 (1pc) Part B8 (1pc) Part B9 (1pc)
  • Page 4: Tools Needed For Assembly

    C. Assembly TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Philips/crosspoint screwdriver, adjustable spanner or metric spanner set. Remove all packing materials from the components before assembly. Two people are required to perform assembly of the patio heater as it involves handling of large, heavy parts which may be difficult for one person to handle.
  • Page 5 Remove the 4 screws and washers from the lower flange of the burner head. NB - Hose joints should be Fit the door latch (B9) by inserting an M6x20 bolt leak tested during assembly as detailed on P. 8. (B1) through a large plain washer (B2) and spacer (B8).
  • Page 6 Note: please go to step 11 if the table is not included for the model you purchased. From inside the hull, secure the table half (A8) to the base top using the round head bolts (B7). Position one table half (A8) onto the base top. Ensure the notches in the underside of the table correspond Repeat steps 8 and 9 for remaining half of table.
  • Page 7 • Model Bottle Size Do not move the heater while alight. • This appliance must not be left unattended Outback® Propane 10kg when lit. Patio Heater...
  • Page 8: Installation

    Suitable regulators for butane must have an outlet solution of ½ water and ½ soap over all gas pressure of 28-30mbar. For propane, the regulator system joints, including all valve connections, hose should have an outlet pressure of 37mbar. YOU connections and regulator connections.
  • Page 9: Care And Maintenance

    • control knob fully clockwise to the “PILOT” The control can then be turned in an anti- position, turn gas off at the cylinder and wait 5 clockwise direction to the “LOW” or “HIGH” minutes before repeating manual lighting position. DO NOT ATTEMPT TO TURN THE procedure.
  • Page 10: Technical Specifications

    Do not let For reference and correspondence, record your serial children tamper with the bottle. Heavy duty number here. (See sticker on side of patio heater.) Outback® patio heater covers are available from your local Outback® stockist. I5. Service Serial No.
