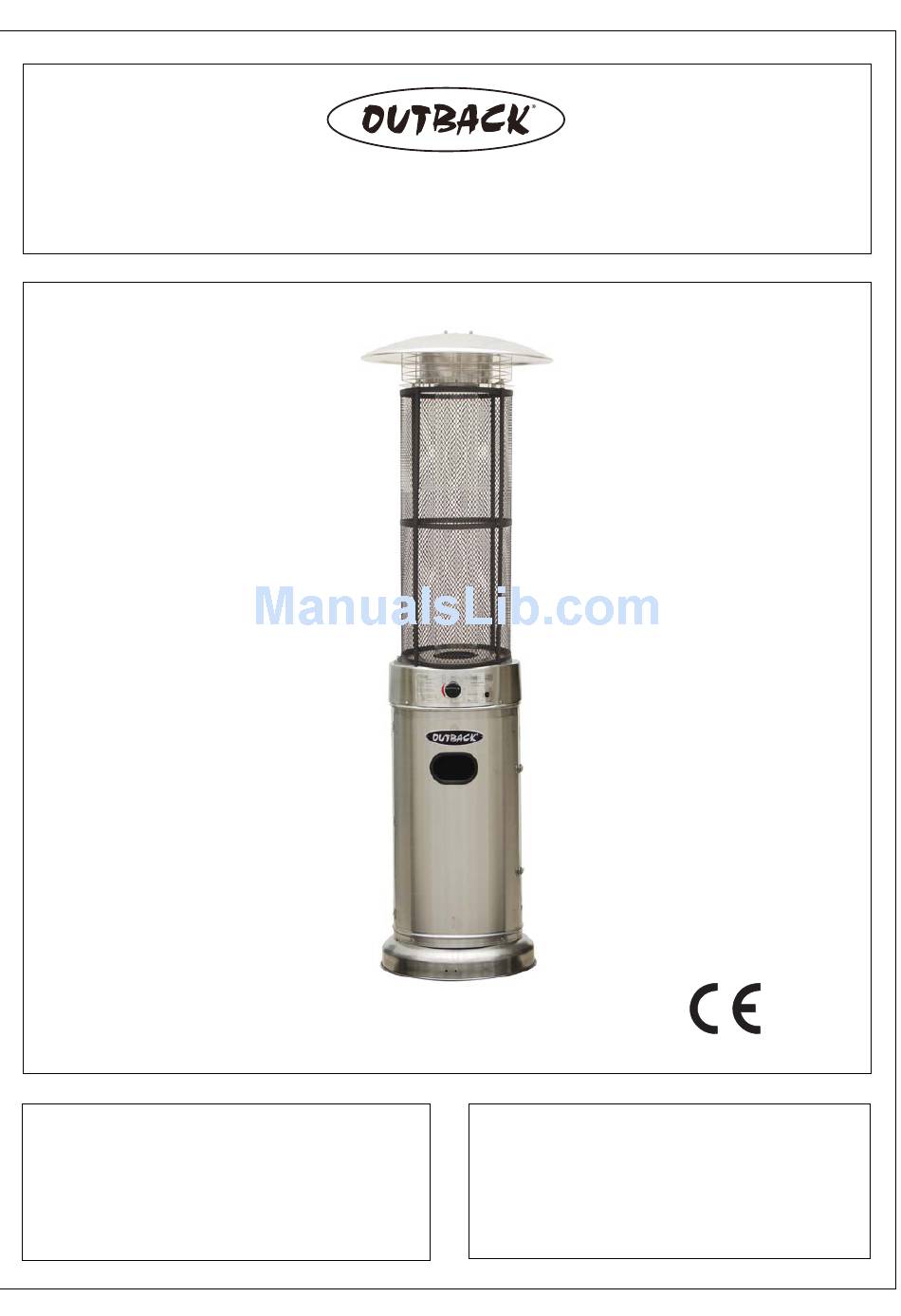

Assembly and Operating Instructions for Outback®
Stainless Steel Column Heater
Drawings are not to scale.
Specifications subject to change
without prior notice.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call your
gas supplier or your fire Department.
OUT370663/PH500
1. Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
2.An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
FOR YOUR SAFETY
17
0063
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outback OUT370663/PH500
Summary of Contents for Outback OUT370663/PH500
- Page 1 Assembly and Operating Instructions for Outback® Stainless Steel Column Heater Drawings are not to scale. OUT370663/PH500 Specifications subject to change 0063 without prior notice. FOR YOUR SAFETY FOR YOUR SAFETY If you smell gas: 1. Do not store or use gasoline or other flammable 1.
- Page 2 WARNlNG SAFETY RULES PLEASE READ THE FOLLOWING SAFETY RULES PRlOR TO OPERATION OF THE HEATER FOR YOUR SAFETY If you smell gas: 1 Shut off gas to the appliance. 2 Extinguish any open flame. 3 If odor continues, immediately call your gas supplier or your fire Department.
- Page 3 warning Read the instructions before installation and use. -This appliance must be installed and the gas cylinder stored in accordance with the regulations in force; -Do not obstruct the ventilation holes of the cylinder housing; -Do not move the appliance when in operation; -Shut off the valve at the gas cylinder or the regulator before moving the appliance;...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Caution ………………………………………………………. Heater Stand and Location ………………………………… Gas Requirements ………………………………………….. Leakage Test ………………………………………………… Operation and Storage ……………………………………... Cleaning and Care ………………………………………….. Parts and Specifications ..………………………………….. Assembly Parts and Procedures ………………………….. Problems Check List ………………………………………... -
Page 5: Caution
CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION. Do not use the patio heater for indoors, as it may cause personal injury or property damage. This outdoor heater is not intended to be installed on recreational vehicles and/or boats. Installation and repair should be done by a qualified service person. -
Page 6: Heater Stand And Location
HEATER STAND AND LOCATION The heater is primarily for outdoor use only. Always ensure that CEILING adequate fresh air ventilation is provided. 100 cm Always maintain proper clearance to non protected combustible materials i.e. top 100 cm and sides 100 cm minimum. Heater must be placed on level firm ground. -
Page 7: Operation And Storage
1. Depress and turn control knob clockwise to OFF position. 2. Fully open gas valve. 3. Depress control knob and turn knob counterclockwise to IGNITE position, then to PILOT position (You should hear a clicking sound). 4. Keep the control knob depressed last for 60 seconds,then turn the control knob back to ‘OFF’position. 5.Repeat step 3 several times until the pilot lights. -
Page 8: Cleaning And Care
CLEANING AND CARE • Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive. • Remove debris from the burner to keep it clean and safe for use. • Cover the burner unit with the optional protective cover when the heater is not in use. PARTS AND SPECIFICATIONS 535 mm Reflector... - Page 9 A. Construction and characteristics Transportable terrace/garden heater with tank housing. Casing in steel with powder-coating or in stainless steel. Gas hose connections with metal clamp (screw caps for Germany). Heat emission from reflector. B. Specifications Use propane,butane or their mixtures gas only. Max.
-
Page 10: Assembly Parts And Procedures
ASSEMBLY PARTS Tools needed: Philips screwdriver w/ medium blade Spray bottle of soap solution for leakage test Parts List: Reflector Upper Protective Mesh Mesh Heating Body Gas Hose Cylinder Housing Base Wheel QUANTITY Reflector Upper Protective Mesh Mesh Heating Body Gas Hose Cylinder Housing Base... - Page 11 ASSEMBLY PARTS HARDWARE CONTENTS (shown actual size) Wing nut Washer Φ6 Stud Ground Fixer Screw M5 X 10 Qty. 3 Qty. 3 Qty. 15 Qty. 3 Qty. 11 Wrench Philips Bolt M6 x 10 Nut M6 Qty. 1 screwdriver Qty. 6 Qty.
- Page 12 ASSEMBLY PROCEDURES 1. To protect heater from strong wind, anchor the base securely to the ground with screws. Reverse the base, fix the ground fixer to the base with bolt M6X10 and washer Φ6 like picture shows. Secure the ground fixer with nut M6 Fix another two ground fixer with bolts and nuts, and reverse the base.
- Page 13 3. Assemble the heating body. Secue the heating body to the tank housing using 4pcs screw M5X10. Hardware Used Screw M5X10 Philips screwdriver 4. Assemble the mesh. Secure the mesh to the Heating Body using 3pcs screw M5X10. Hardware Used Screw M5X10 Philips screwdriver...
- Page 14 5. Assemble the upper protective mesh to the heating body directly. CAUTION: Do not hang clothing or any other flammable materials from the heater, or place on or near the heater. HOT! DO NOT TOUCH! CAUTION-HOT SURFACE HOT WHILE IN OPERATION DO NOT TOUCH KEEP CHILDREN, CLOTHING FURNITURE AND FLAMMABLES AWAY...
- Page 15 7. Connect the gas hose and regulator after that connect the regulator to the gas cylinder. WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. After the cylinder is placed inside the heater, secure the cylinder with block belt tightly.
-
Page 16: Problems Check List
PROBLEMS CHECK LIST PROBLEM PROBABLE CAUSE SOLUTION Pilot will not light Gas valve may be OFF Turn the gas valve ON Tank fuel empty Refill LPG tank Opening blocked Clean or replace opening Air in supply system Purge air from lines Loose connections Check all fittings Pilot will not stay on... - Page 17 OUTBACK® WARRANTY OUTBACK® heater are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
