Raw Thrills PAC-MAN TICKET MANIA Service Bulletin

Raw Thrills has identified an aesthetic issue associated with the Pac-Man Ticket Mania™
42" Game. As a result, Raw Thrills is issuing a kit to fix the control panel illumination
problems on games with serial numbers in the ranges listed above. Under normal
conditions, it is likely for there to be unintended illumination underneath the control
panel plastic. The foam washers included in this kit sent with this bulletin must be
installed as shown in the instructions below.

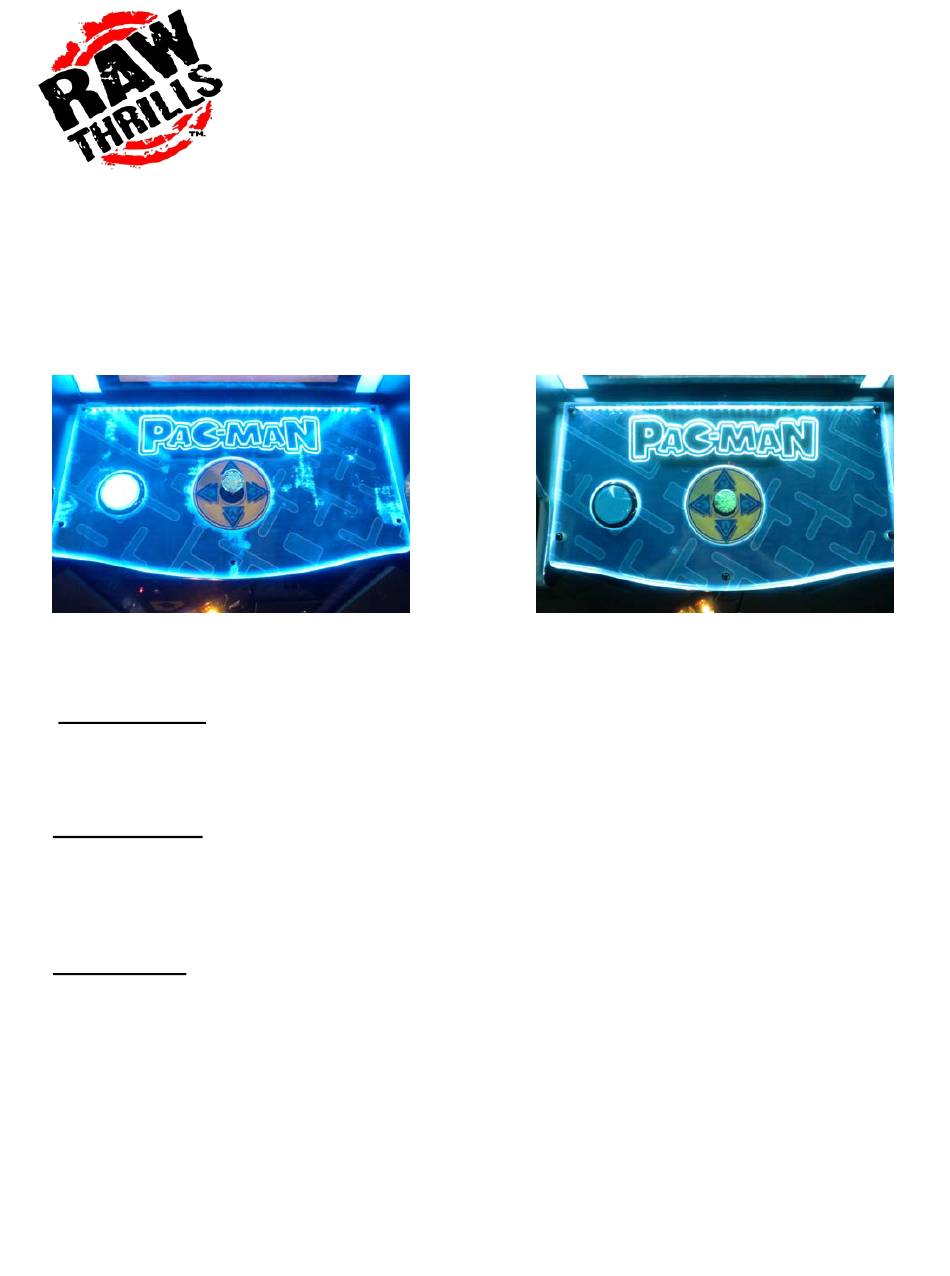

Figure A - Pre-Kit Illumination
For Additional Assistance, Please Contact Joe Blackwell of Namco at 847-264-5614.

Kit Description:

(9) ADHESIVE-BACKED FOAM WASHERS
(1) INSTALLATION INSTRUCTION SHEET

Required Tools:

(1) DRILL OR 1/4" SCREWDRIVER WITH T-27 TAMPERPROOF TORX & PHILLIPS BIT
(1) 3/8" SOCKET WRENCH
(1) PAIR OF GLOVES (FOR HANDLING OF CLEAR CONTROL PANEL PLASTIC)

PROCEDURE:

1. REMOVE START BUTTON AND JOYSTICK PLATE ASSEMBLY
•
OPEN COIN DOOR, AND LOCATE THE HARNESS FOR THE START BUTTON
AND JOYSTICK AND TRACE IT BACK TO THE CONNECTOR WHICH LEADS
TO THE I/O BOARD. UNPLUG THIS CONNECTION, WHICH CAN MOST
EASILY BE DONE FROM THE LOWER BACK DOOR (PHILLIPS BIT
SCREWDRIVER MAY BE NEEDED IF SHIPPING SCREWS ARE STILL
INSTALLED ON DOOR). AFTER UNPLUGGING THE CONNECTION, REMOVE
THE START BUTTON AND JOYSTICK SIDE OF THE HARNESS FROM ANY
WIRE CLAMPS SO THAT IT CAN BE REMOVED FROM THE GAME EASILY.
SERVICE BULLETIN
PAC-MAN TICKET MANIA
(Serial #: RT02400E01-RT02400E99, RT02401E00-RT02401E99, RT02402E00-RT02402E50)
IMPORTANCE: HIGH
– FOAM WASHER KIT
™
Figure B - Post-Kit Illumination
