040-00065-01 REV 2

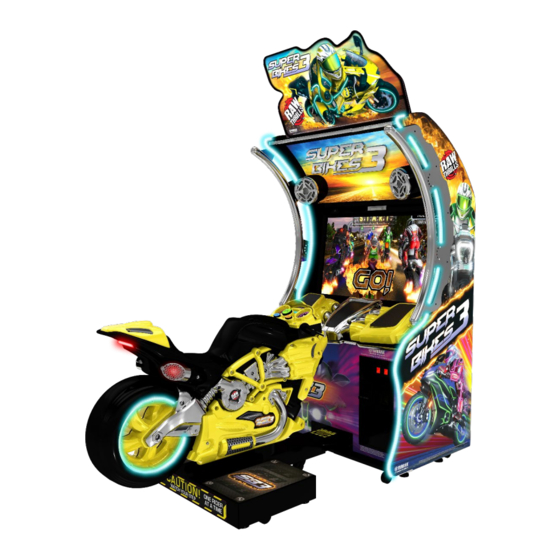

Super Bikes™ 3
Operator's Manual
Yamaha, the Tuning Fork Mark, R6 and likeness thereof including the color Yamaha Blue, Niken and the likeness thereof,
MT-10 and the likeness thereof are trademarks of Yamaha Motor used under license.
Software™ & © 2019 Raw Thrills, Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super Bikes 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Raw Thrills Super Bikes 3

  • Page 1 Yamaha, the Tuning Fork Mark, R6 and likeness thereof including the color Yamaha Blue, Niken and the likeness thereof, MT-10 and the likeness thereof are trademarks of Yamaha Motor used under license. Software™ & © 2019 Raw Thrills, Inc. All Rights Reserved.
  • Page 2 This Page Left Blank Intentionally...
  • Page 3: Table Of Contents

    Super Bikes™ 3 Table of Contents Safety ................................5 Operation ..............................5 Transporting .............................. 5 Handling Components ..........................5 Disconnect Power ............................. 5 Grounding ..............................5 Electrical Shocks ............................5 Monitor ..............................5 Power Cord ............................... 5 Surge Suppressor ............................5 Water and Other Liquid Sources .......................
  • Page 4 Super Bikes™ 3 Test Menus .............................. 14 Main Menu ............................14 Diagnostics ............................15 Pricing Adjustments Cash ........................16 Pricing Adjustments Tokens ........................ 17 Pricing Adjustments Swipes ........................ 18 Game Settings ............................. 19 System Settings ........................... 20 Audits ..............................21 Resets ..............................
  • Page 5: Safety

    Super Bikes™ 3 Safety Operation Before operating game, read this manual. Failure to properly install and operate this game could result in malfunction or accident. Operate the game in accordance with the manual. Transporting The cabinet is very heavy. Because the monitor is high, the cabinet is also very top-heavy. Use appropriate care when moving or transporting cabinet.
  • Page 6: Water And Other Liquid Sources

    AC line cord. Contact your local distributor. Your warranty, when applicable, lasts 60 days from your purchase date. You may not reproduce this document or any of its contents without written authorization from Raw Thrills, Inc. Specifications For reasons such as performance, this product’s specifications may change without notice. Federal patent, copyright and other intellectual property laws protect the content, devices and design of the game and its equipment.
  • Page 7: Product Specifications

    Super Bikes™ 3 Product Specifications Electrical Power United States, International and Japan Operating AC Current: 5/2.5 AMPS Voltage: 115/230~VAC 50/60Hz Temperature 50° F to 104° F (10° C to 40° C) Humidity Must not exceed 95% relative humidity Dimensions Cabinet: Height: 79.17”...
  • Page 8: Setup

    Super Bikes™ 3 Setup Unpack Materials 1. Place the shipping crate(s) on a flat, stable surface. 2. Cut the banding straps and remove the cardboard lids. 3. Lift off the large cardboard containers surrounding the cabinet assembly and remove any shipping cleats.
  • Page 9: Cabinet Assembly

    Super Bikes™ 3 Cabinet Assembly Note: 2 people are required, and ladders are recommended. Marquee assembly is top heavy and can tip over! 1. Place cabinet in desired floor location. Remove upper back door and carefully place such that it will not fall over or be damaged.
  • Page 10: Card Reader Installation And Setup

    Due to the rising popularity of aftermarket debit card systems for cashless or coinless operation of amusement machines (i.e. Embed, Intercard, Semnox), this Super Bikes 3 cabinet is equipped with UCL compatible harnessing to ensure that the installation process is easier and less prone to miswiring.
  • Page 11: Check Electrical Settings

    Super Bikes™ 3 Check Electrical Settings 1. Verify the voltage in the nearest AC outlet. 2. Verify the AC outlet ground connection is present and working. Startup Game 1. Plug the line cord into an AC outlet. 2. Turn the main cabinet power switch on. 3.
  • Page 12: Diagnostic And Adjustments

    Super Bikes™ 3 Diagnostic and Adjustments The Service Button Panel has four buttons, three of which can navigate the menu system. The control panel buttons and joysticks/guns can also advance through test menu screens. Navigating the Test Menu Button Action TEST (Not in Test Menu) Enters Test Menu TEST (In Test Menu)
  • Page 13: Basic Functional Test On Initial Power Up

    Super Bikes™ 3 Basic Functional Test on Initial Power Up 1. Enter the Input Test and verify all switch inputs are working. 2. Enter the Monitor Test and verify the monitor is working properly. 3. Enter the Sound Test and verify the audio works and is not distorted. 4.
  • Page 14: Test Menus

    Super Bikes™ 3 Test Menus Main Menu Choose from all available operator settings and menus here. You can use the test menu bracket and volume buttons to navigate. The View, Tunes, and Start buttons as well as the brake are also available to use for easier navigation through these menus.
  • Page 15: Diagnostics

    Blower Test: Test the blower motor. • Meter Test: Test the functionality of the mechanical coin meter inside the cabinet. • QR Test: Test view QR codes to send info to Raw Thrills. • Ticket Test: Test the functionality of the ticket mech. •...
  • Page 16: Pricing Adjustments Cash

    Super Bikes™ 3 Pricing Adjustments Cash Set pricing adjustments. There are three options to choose from: cash, token, and swipes. PRICING ADJUSTMENTS (CASH) FREE PLAY CURRENCY INPUT CURRENCY TYPE COIN VALUE COINS TO PLAY MAX CREDITS E-TICKET MODE EXIT Free Play: Turn free play mode on or off (default off). •...
  • Page 17: Pricing Adjustments Tokens

    Super Bikes™ 3 Pricing Adjustments Tokens Set pricing adjustments. There are three options to choose from: cash, token, and swipes. PRICING ADJUSTMENTS (Tokens) FREE PLAY CURRENCY INPUT CURRENCY TYPE COIN VALUE COINS TO PLAY MAX CREDITS E-TICKET MODE EXIT Free Play: Turn free play mode on or off (default off). •...
  • Page 18: Pricing Adjustments Swipes

    Super Bikes™ 3 Pricing Adjustments Swipes Set pricing adjustments. There are three options to choose from: cash, token, and swipes. PRICING ADJUSTMENTS (Swipes) FREE PLAY CURRENCY INPUT CURRENCY TYPE SWIPE VALUE SWIPES TO PLAY MAX CREDITS E-TICKET MODE EXIT Free Play: Turn free play mode on or off (default off). •...
  • Page 19: Game Settings

    Super Bikes™ 3 Game Settings This menu allows for customization of game settings. GAME SETTINGS AUTOPLAY ENABLED FREE RACE FOR H2H WIN NAME ENTRY/HIGH SCORES QR CODES UPGRADES FEMALES EXIT • Autoplay Enabled: Turn on or off (default off). When on games will play automatically. •...
  • Page 20: System Settings

    Super Bikes™ 3 System Settings This menu allows for customization of various system settings. SYSTEM SETTINGS NETWORK SETTINGS PHOTO CAMERA LANGUAGE LED BRIGHTNESS CABINET COLOR DATE & TIME EXIT • Network Settings: Turn on for linked games (leave off if operating a single game). •...
  • Page 21: Audits

    Super Bikes™ 3 Audits Audit screen help assess game performance, find intermittent problems, decide whether to adjust game difficulty and help maximize game earnings. There are no special menu options for this test menu entry. 21 | P a g e...
  • Page 22: Resets

    Super Bikes™ 3 Resets Resets menu allows for the resetting of various machine settings and audits. RESETS MENU RESET CREDITS RESET TICKETS RESET PRICING ADJUSTMENTS RESET GAME ADJUSTMENTS RESET LEADERBOARDS RESET GAME AUDITS RESET SYSTEM AUDITS RESET COIN AUDITS RESET ALL AUDITS FACTORY RESTORE EXIT Reset Credits: Reset credits to zero (0).
  • Page 23: Volume

    Super Bikes™ 3 Volume Volume adjustments. VOLUME GAME VOLUME ATTRACT VOLUME CREDIT VOLUME MINIMUM VOLUME EXIT • Game Volume: Adjust the volume during gameplay (from 0 to 30). Attract Volume: Adjust the volume during the attract mode sequences (from 0 to 30). •...
  • Page 24: Calibration

    Super Bikes™ 3 Calibration Calibration of bike hardware. There are no special menu options for this test menu entry. Follow on screen prompts to calibrate bike hardware. 24 | P a g e...
  • Page 25: Utilities

    Super Bikes™ 3 Utilities Miscellaneous operator tools. UTILITIES COPY AUDITS, LOGS, & SCORES TO USB VIEW MESSAGE LOG VIEW ERROR LOG VIEW ENGINE LOG EXIT • Copy audits, logs, & scores to USB: Copy all audits and diagnostics to USB drive. View Message Log: Examine logged messages from the game.
  • Page 26: System Information

    Super Bikes™ 3 System Information This screen allows you to see various information about the software and hardware. • Serial Number Software Revision • • Build Date • RIO PCB RIO Firmware • • Dongle Version Cabinet Type • • Game Template There are no special menu options for this test menu entry.
  • Page 27: Choosing The Right Pricing Adjustments For Your Location

    Super Bikes™ 3 Choosing the Right Pricing Adjustments for Your Location Card Swipe Locations Make Sure Your Game is Set to Swipes Mode: • 1. Hold the Test Button for 2 seconds to enter the Test Menu. 2. Select “Pricing Adjustments” from the menu. 3.
  • Page 28: Pc Hardware

    Super Bikes™ 3 PC Hardware Your Super Bikes uses a HP Elitedesk 705 G3 MT computer with a GeForce GTX 1050 graphics card. Listed below are the recommended BIOS settings for the computer. NOTE 1 WARNING: DO NOT ENTER THE BIOS SETTINGS MENU! Modifying the BIOS settings will cause your game to stop functioning.
  • Page 29: Pc Hard Drive Recovery

    Super Bikes™ 3 PC Hard Drive Recovery Symptoms requiring a PC hard drive recovery include: • File test reports bad or missing files. Game fails to finish loading during setup. • After resetting the AC power, an error is reported. •...
  • Page 30: Troubleshooting

    Super Bikes™ 3 Troubleshooting Warning: Review the Safety section before making any adjustments to the game. Problem Possible Cause Solution Game not plugged in. Plug game into AC outlet. Game not turned on. Turn on main power switch. Check and replace fuse. See Game fuse is blown.
  • Page 31 Super Bikes™ 3 Problem Possible Cause Solution To test a USB port, turn off the game, disconnect the device from the port, and then connect the game dongle to the port. PCB connected to faulty USB Neither buttons nor audio Reboot the game.
  • Page 32 Super Bikes™ 3 Problem Possible Cause Solution Check external DC supply and Faulty power supply. the PC supply. Constant low audio hum. Check all ground wires in Open ground. cabinet. Ensure AC wall outlet is properly grounded Game does not load. PC Drive test reports “bad”...
  • Page 33 Super Bikes™ 3 Problem Possible Cause Solution Find dongle cable and reseat in Dongle missing or disconnected. USB port. Dongle Not Present Insert dongle cable in different Faulty USB port. USB port. Incorrect setting in Pricing Adjust pricing settings. Adjustments. Disconnect cabinet from AC power.
  • Page 34: Technical Support

    Super Bikes™ 3 Technical Support For an authorized distributor near you, check the Raw Thrills website at www.rawthrills.com Betson’s Raw Thrills Technical Support Hotline Phone: 1-800-753-2513 FAX: 1-201-438-5019 Email: rtsupport@betson.com 34 | P a g e...
  • Page 35: Electrical And Mechanical Illustrations

    Super Bikes™ 3 Electrical and Mechanical Illustrations 35 | P a g e...
