Raw Thrills T-Rex Safari Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

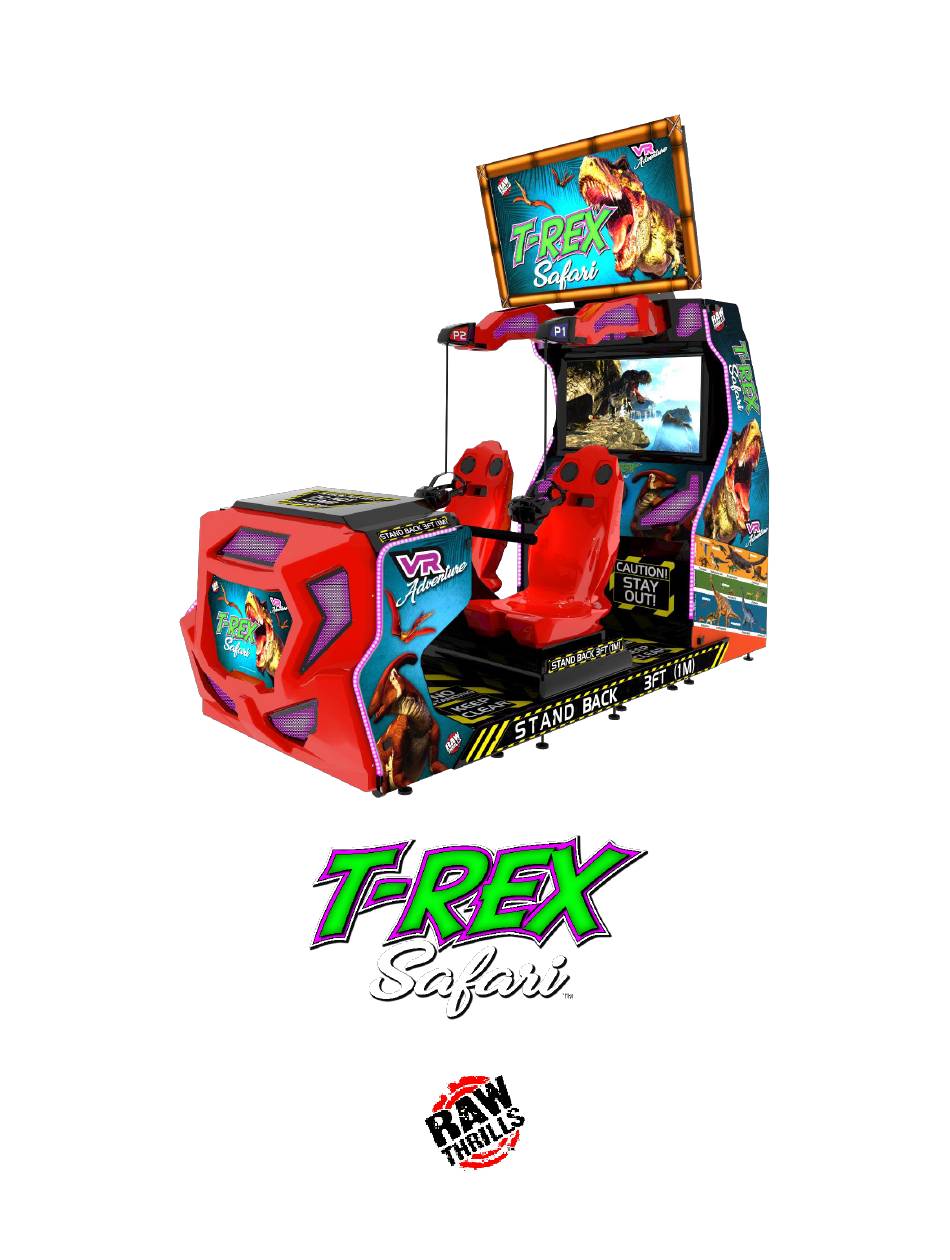

R90-12-10 REV01
T-Rex Safari™
Operator's Manual
Software™ © 2024 Raw Thrills, Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-Rex Safari and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raw Thrills T-Rex Safari

Summary of Contents for Raw Thrills T-Rex Safari

  • Page 1 R90-12-10 REV01 T-Rex Safari™ Operator’s Manual Software™ © 2024 Raw Thrills, Inc. All Rights Reserved.
  • Page 2 This Page Left Blank Intentionally...

  • Page 3: Table Of Contents

    T-Rex Safari™ Table of Contents Safety ................................5 Operation ..............................5 Transporting .............................. 5 Handling Components ..........................5 Disconnect Power ............................. 5 Grounding ..............................5 Electrical Shocks ............................5 Monitor ..............................5 Power Selector ............................5 Power Cord ............................... 5 Surge Suppressor ............................
  • Page 4 T-Rex Safari™ Upper Monitor Installation ......................... 10 Headset Arm Setup ..........................12 Positioning Cabinets for Harness and Air Line Connections ............... 13 Joining the Four Cabinets Together ....................14 Monitor Bezel Installation ........................15 Card Reader Installation and Setup ......................17 Check Electrical Settings .........................

  • Page 5: Safety

    T-Rex Safari™ Safety Operation Before operating game, read this manual. Failure to properly install and operate this game could result in malfunction or accident. Operate the game in accordance with the manual. Transporting The upper monitor assembly weighs approximately 95 lbs. and the installation requires a minimum of three people, using two 6-foot step ladders (minimum height).

  • Page 6: Surge Suppressor

    Keep this manual available and ready for use. If the game fails to function properly, turn off the machine and unplug the AC line cord. Contact your local distributor. You may not reproduce this document or any of its contents without written authorization from Raw Thrills, Inc. P a g e...

  • Page 7: Specifications

    T-Rex Safari™ Specifications For reasons such as performance, this product’s specifications may change without notice. Federal patent, copyright and other intellectual property laws protect the content, devices and design of the game and its equipment. CAUTION • This machine features moving parts and should only be serviced by a trained and experienced technician.

  • Page 8: Product Specifications

    T-Rex Safari™ Product Specifications Electrical Power MULTIPLE POWER SUPPLY ENTRIES Warning: Before obtaining access to terminals, all supply circuits must be disconnected. Attention: Avant d’accéder aux bornes, tous les circuits d’alimentation doivent être déconnectés. United States, Canada (ETL) Voltage: 120VAC / 60 Hz...

  • Page 9: Setup

    T-Rex Safari™ Setup Safety Notice Installing this product requires three individuals able to lift heavy objects safely. Two 6-foot step ladders (minimum height) are required as part of the installation process. Make sure that you are familiar with the manual contents, game setup, and operations before you begin the installation process. Do not push or pull on the decorative items such as the monitor bracket or red vacuum formed nose cover to move the game.

  • Page 10: Cabinet Assembly

    T-Rex Safari™ Cabinet Assembly CAUTION UNDER NO CIRCUMSTANCES SHOULD THIS GAME BE OPERATED UNLESS ALL INSTALLATION PROCEDURES HAVE BEEN COMPLETED AND ALL SAFETY FEATURES HAVE BEEN POSITIVELY TESTED AND ARE FULLY FUNCTIONAL! Upper Monitor Installation The upper monitor assembly weighs approximately 95 lbs. and the installation requires a minimum of three people, using two 6-foot step ladders (minimum height).
  • Page 11 T-Rex Safari™ 4. Make sure the brackets are mated properly and install two bottom 6MM x 20MM VESA mount screws and washers (fig. c items A, below) in the lower back mounting brackets and then install remaining six 1/4-20 x 3/4' perimeter screws and washers (fig. c items B, below).

  • Page 12: Headset Arm Setup

    T-Rex Safari™ Headset Arm Setup 1. Remove the right cover plate (fig. f item C, below). Remove the 1/2-13 x 7" bolt from the slotted hole of the bracket arm with a 3/4" socket (fig. f item A, below). 2. Rotate the arm up 90 degrees and replace the 7" bolt into the higher slotted position (make sure the bolt is snug but do not over tighten, otherwise the under-arm brackets will not fit.

  • Page 13: Positioning Cabinets For Harness And Air Line Connections

    T-Rex Safari™ Positioning Cabinets for Harness and Air Line Connections 1. Align the cabinets for harness and air line connections (fig. h below). fig. h 2. From the spacer cabinet, lift up the door and prop open with the attached prop bar.

  • Page 14: Joining The Four Cabinets Together

    T-Rex Safari™ Joining the Four Cabinets Together 1. Make sure all cables, harnesses, and air lines are connected, and push the cabinets together so there is minimal space between each one. Take care to ensure that all cables, harnesses, and air lines are not pinched between the cabinets when joining.

  • Page 15: Monitor Bezel Installation

    T-Rex Safari™ Monitor Bezel Installation Remove the adhesive backing from one side of each of the (12) hook & loop strip pairs and apply them to the red metal monitor frame as shown below (3 places on each side). Moni Peel the adhesive backing from the other side of the (3) bottom row strip pairs.
  • Page 16 T-Rex Safari™ Peel the adhesive backing from the other side of the (3) side row strip pairs. Align the side bezel art panel (606-02201-01) with the bottom bezel art panel (606-02200-01) and push firmly to secure the panels to the hook & loop adhesive as show below.

  • Page 17: Card Reader Installation And Setup

    Due to the rising popularity of aftermarket debit card systems for cashless or coinless operation of amusement machines (i.e., Embed, Intercard, Semnox), this T-Rex Safari™ cabinet is equipped with UCL compatible harnessing to ensure that the installation process is easier and less prone to miswiring.

  • Page 18: Check Electrical Settings

    T-Rex Safari™ Check Electrical Settings 1. Verify the voltage in the nearest AC outlet. 2. Verify the AC outlet ground connection is present and working. ***Recommended: Separate 20A breakers to prevent capacity overload*** ***Recommended: UPS*** Startup Game 1. Plug the two line cords into an AC outlet (Recommended: plug the line cords into separate 20A breakers to prevent capacity overload).

  • Page 19: Headset Calibration Guide

    T-Rex Safari™ Headset Calibration Guide ***MACHINE IS NOT OPERATIONAL WITHOUT FIRST CALIBRATING THE HARDWARE*** 1. In the test menu, select the “Calibration” menu item. (see below) 2. In the Calibration menu, select “Headset Calibration”. (see below) 19 | P a g e...
  • Page 20 T-Rex Safari™ 3. Press Test to begin calibration. (see below) 4. Hold Player 1 headset in the player head position. (see below) 20 | P a g e...
  • Page 21 T-Rex Safari™ 5. Press Test again to start Player 1 calibration. (see below) (IMPORTANT: MAKE SURE THE HEADSET CAMERAS ARE NOT COVERED, images a (front) & b (left and right sides) BELOW) image a image b 21 | P a g e...
  • Page 22 T-Rex Safari™ 6. Then wait 20 seconds for the calibration process to initialize, during that time please make sure player 1 headset is held in player 1 head position and the headset cameras are not blocked. (see below) 7. The wizard will then instruct you to keep the headset in Player 1 head position while pressing the Test key again.
  • Page 23 T-Rex Safari™ 8. After pressing Test again, the wizard will instruct you to perform the same steps however this time with the player 2 headset. Hold the player 2 headset in player head position and press test, wait 20 seconds and press test again. Perform steps 5-7 with Player 2 headset.

  • Page 24: Diagnostics And Adjustments

    T-Rex Safari™ Diagnostics and Adjustments The Service Button Panel has four buttons, three of which can navigate the menu system. Navigating the Test Menu Button Action TEST (Not in Test Menu) Enters Test Menu TEST (In Test Menu) Selects Highlighted Option...

  • Page 25: Basic Functional Test On Initial Power Up

    T-Rex Safari™ Basic Functional Test on Initial Power Up 1. Enter the Input Test and verify all switch inputs are working. 2. Enter the Video Test and verify the monitors are working properly. 3. Enter the Audio Test and verify the audio works and is not distorted.

  • Page 26: Test Menus

    T-Rex Safari™ Test Menus Main Menu Choose from all available operator settings and menus here. You can use the test menu bracket and volume buttons to navigate. MAIN MENU DIAGNOSTICS PRICING ADJUSTMENTS GAME SETTINGS SYSTEM SETTINGS AUDITS RESETS VOLUME CALIBRATION...

  • Page 27: Diagnostics

    T-Rex Safari™ Diagnostics Verify or diagnose the operations of all game functions. DIAGNOSTICS INPUT TEST HEADSET STATUS LEAP MOTION TEST VIDEO TEST AUDIO TEST NETWORK TEST CABINET LIGHTS TEST BLOWER TEST CABINET MOTION TEST DRAIN VALVE TEST METER TEST WATCHDOG TEST EXIT •...

  • Page 28: Pricing And Payout Adjustments (Cash)

    T-Rex Safari™ Pricing and Payout Adjustments (Cash) Set pricing and payout adjustments for game operation. PRICING AND PAYOUT ADJUSTMENTS (CASH) FREE PLAY CURRENCY INPUT CURRENCY TYPE COIN VALUE COINS TO PLAY MAX CREDITS NUMBER OF CASH BOXES EXIT • Free Play: Turn free play mode on or off.

  • Page 29: Pricing And Payout Adjustments (Tokens)

    T-Rex Safari™ Pricing and Payout Adjustments (Tokens) Set pricing and payout adjustments for game operation. PRICING AND PAYOUT ADJUSTMENTS (TOKENS) FREE PLAY CURRENCY INPUT CURRENCY TYPE TOKEN VALUE TOKENS TO PLAY MAX CREDITS NUMBER OF CASH BOXES EXIT • Free Play: Turn free play mode on or off.

  • Page 30: Pricing And Payout Adjustments (Swipes)

    T-Rex Safari™ Pricing and Payout Adjustments (Swipes) Set pricing and payout adjustments for game operation. PRICING AND PAYOUT ADJUSTMENTS (SWIPES) FREE PLAY CURRENCY INPUT CURRENCY TYPE SWIPE VALUE NUMBER OF CARD READERS MAX CREDITS NUMBER OF CASH BOXES EXIT •...

  • Page 31: Game Settings

    T-Rex Safari™ Game Settings Adjust game settings for operation. GAME SETTINGS ATTRACT MUSIC VOICEOVER PICKUPS ADDITIONAL PLAYER INSTRUCTIONS EXIT • Attract Music: How often should music play in attract mode. • Voiceover: Enable/disable voiceovers during a race and in the menus.

  • Page 32: System Settings

    T-Rex Safari™ System Settings Adjust system settings for operation. SYSTEM SETTINGS NETWORK SETTINGS HEADSET ENABLED PLAYER 1 HEADSET ENABLED PLAYER 2 LANGUAGE LED BRIGHTNESS BLOWER ENABLED CABINET MOTION ENABLED DATE & TIME TBAR POS P1 Y TBAR POS P1 Z...

  • Page 33: Audits

    T-Rex Safari™ Audits View machine statistics such as games played, money earned, etc. AUDITS SYSTEM AUDITS COIN AUDITS GAME AUDITS EXIT • System Audits: Tracks system information including boots, resets, game times, and more. • Coin Audits: Tracks income related information.

  • Page 34: Resets

    T-Rex Safari™ Resets Reset various machine settings and audits. RESETS RESET CREDITS RESET PRICING ADJUSTMENTS RESET GAME ADJUSTMENTS RESET GAME AUDITS RESET SYSTEM AUDITS RESET COIN AUDITS RESET ALL AUDITS FACTORY RESTORE EXIT • Reset Credits: Reset credits to zero (0).

  • Page 35: Volume

    T-Rex Safari™ Volume Adjust all volume settings. VOLUME GAME VOLUME ATTRACT VOLUME CREDIT VOLUME EXIT • Game Volume: Adjusts the volume level during gameplay. • Attract Volume: Adjusts the volume level during the attract mode sequences. • Credit Volume: Adjusts the volume level of the credit chime only (independent setting of game and attract volume).

  • Page 36: Calibration

    T-Rex Safari™ Calibration Calibrate the VR headsets and cabinet motion. ***MACHINE IS NOT OPERATIONAL WITHOUT FIRST CALIBRATING THE HARDWARE*** CALIBRATION CALIBRATE HEADSET – PLAYER 1 CALIBRATE HEADSET – PLAYER 2 MOTION CALIBRATION EXIT • Calibrate Headset – Player 1: Calibrate tracking of the Player 1 headset.

  • Page 37: Utilities

    T-Rex Safari™ Utilities Miscellaneous operator tools. UTILITIES COPY AUDITS, LOGS, & SCORES TO USB UPLOAD AUDITS, LOGS, & SCORES TO SERVER VIEW MESSAGE LOG VIEW ERROR LOG VIEW ENGINE LOG SYNC ADJUSTMENTS TO ALL CABINETS EXIT • Copy Audits, Logs, & Scores to USB: Copy all audits and diagnostics to USB drive.

  • Page 38: System Information

    T-Rex Safari™ System Information View hardware and software information • Serial Number • Software Rev • Build Date • RIO2 A Serial Number • RIO2 A Firmware Version • RIO2 A Primary MCU Version • RIO2 B Serial Number •...

  • Page 39: Choosing The Right Pricing Adjustments For Your Location

    6. While back in “Pricing Adjustments” menu a. Select “Coins to Play” and set the desired amount of coins per game of T-Rex Safari™ . b. After setting the coins per play, set “Coin Value” to the currency equivalent of your coin, or the coin audits bookkeeping will be incorrect.

  • Page 40: Pc Hardware

    T-Rex Safari™ PC Hardware Your T-Rex Safari™ game uses two HP Z2G5TWR Desktop PC computers. One is the Player 1 PC and the other is the Player 2 PC. (above: HP Z2G5TWR Desktop PC) OTICE WARNING: DO NOT ENTER THE BIOS SETTINGS MENU! Modifying the BIOS settings will cause your game to stop functioning.

  • Page 41: Pc Hard Drive Recovery

    T-Rex Safari™ PC Hard Drive Recovery Symptoms requiring a PC hard drive recovery include: • File test reports bad or missing files. • Game fails to finish loading during setup. • After resetting the AC power, an error is reported.

  • Page 42: Troubleshooting

    T-Rex Safari™ Troubleshooting Warning: Review the Safety section before making any adjustments to the game. Problem Possible Cause Solution Game not plugged in. Plug game into AC outlet. Game not turned on. Turn on main power switch. Check and replace fuse. See Specification section for Game fuse is blown.
  • Page 43 T-Rex Safari™ Problem Possible Cause Solution Bad connection. Check connection to speakers. Volume set too low. Use VOL UP button on Test panel to raise volume Verify all wires are firmly connected to the speakers Faulty wiring. and the audio PCB. Verify that audio PCB is connected to the computer via USB cable.
  • Page 44 T-Rex Safari™ Problem Possible Cause Solution Message on screen: Disconnect and reconnect the USB cable from the Headset USB Loose or disconnected headset to the PC (must be plugged into a USB 3.0 connection not USB cable. port), then reboot the cabinet.
  • Page 45 T-Rex Safari™ Problem Possible Cause Solution Turn PC power switch on. Ensure IEC cable tightly PC not turned on. plugged in. Trace cable back to source to ensure continuity. Check and secure DVI or HDMI connector to Video cable not secure.
  • Page 46 T-Rex Safari™ Problem Possible Cause Solution Leap is sensitive to infrared light, including sunlight, Camera captures please make sure the game is not positioned in the interferences from way of direct or reflected sunlight, and any other external sources. infrared light source.

  • Page 47: Headset Replacement Guide

    T-Rex Safari™ Headset Replacement Guide This procedure can be completed with one person. 1. Shut off power and unplug the main cabinet AC power cords. 2. Remove upper and lower rear doors. Open front PC door to access the test menu switches and front of PC.

  • Page 48: Technical Support

    T-Rex Safari™ Technical Support For an authorized distributor near you, check the Raw Thrills website at www.rawthrills.com Betson’s Raw Thrills Technical Support Hotline Phone: 1-800-753-2513 FAX: 1-201-438-5019 Email: rtsupport@betson.com All Raw Thrills assembly and service videos: rawthrills.com/assembly-and-service-videos/ 48 | P a g e...
