Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on our
social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with your order,
please contact the retailer you purchased the item from. We will work with the retailer
to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop
voucher simply post a picture of your
new product on your preferred social
channels tagging Birlea Furniture and
using the hashtag #ShareYourStyle
and #Birlea. One winner will be
selected at random each month.
To view our full terms and conditions please visit www.birlea.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Birlea Arlo 1 Drawer Bedside
Summary of Contents for Birlea Arlo 1 Drawer Bedside
- Page 1 Birlea product. and #Birlea. One winner will be selected at random each month. To view our full terms and conditions please visit www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.

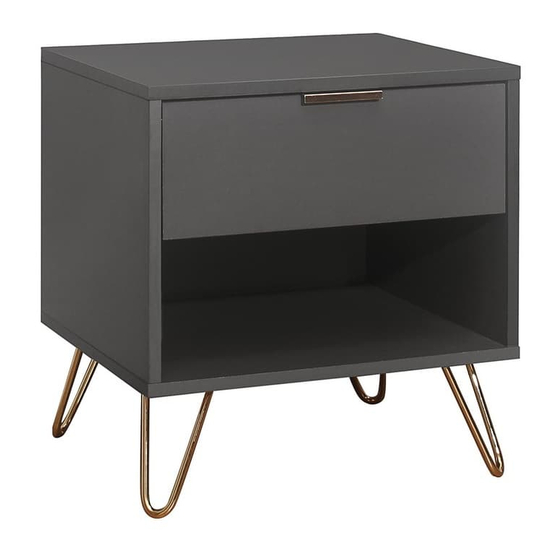

- Page 2 Arlo - 1 Drawer Bedside Assembly Instructions Before you begin... 1. Please check you have received the correct product. 2. Unpack all boxes and lay out each component on the floor. 3. Check your product for any damage that may be immediately obvious. If damage is identified, please contact your retailer.
- Page 3 Parts Right Side Panel (x1) Top Panel (x1) Bottom Panel (x1) Left Side Panel (x1) Drawer Front (x1) Drawer Side (x2) Drawer Back (x1) Back Panel (x1) Drawer Bottom (x1) Hardware Cam Lock (x4) Minifix Screw (x4) Plastic Cap (x4) M8x30mm Wood Dowel (x8) M6x50mm Wood Screw (x4) M4 Allen Key (x1)
- Page 4 Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3. Should you identify any missing components, please contact the retailer you purchased the bed from. Step 2 Firstly, attach 4x Minifix Screw ( ) to 1x Top Panel ( ).
- Page 5 Step 3 Next, attach 1x 14" Drawer Runner - Left ( ) to 1x Left Side Panel ( ) using 3x M3.5x16mm C.B Screw ( ). Next attach 1x 14" Drawer Runner - Right ( ) to 1x Right Side Panel ( ) using 3x M3.5x16mm C.B Screw ( FOR UP 1st HOLE...
- Page 6 Step 5 Attach 1x Left Side Panel ( ) and 1x Right Side Panel (04) to 1x Top Panel ( ) using 4x Cam Lock ( ) and 4x Minifix Screw ( ) pre-attached in the previous step using a Screwdriver (Not Provided). Then cover 4x Minifix Screw ( using 4x Plastic Cap ( Step 6 Attach 1x Bottom Panel (...
- Page 7 Step 7 Attach 1x Back Panel ( ) to the entire body using 12x 5/8 Nail ( ) and a Hammer (Not Provided). Step 8 Attach 4x Metal Leg ( ) to 1x Bottom Panel ( ) using 16x M3.5x16mm C.B Screw ( ) and Screwdriver (Not Provided).
- Page 8 Step 10 Attach 1x 14" Drawer Runner - Left ( ) to the base of the drawer bodies using 3x M3.5x16mm C.B Screw ( ). Then attach 1x 14" Drawer Runner - Right ( ) to the base of the small drawer body using 3x M3.5x16mm C.B Screw ( Step 11 Assemble the drawer's along the drawer slides as shown below.
