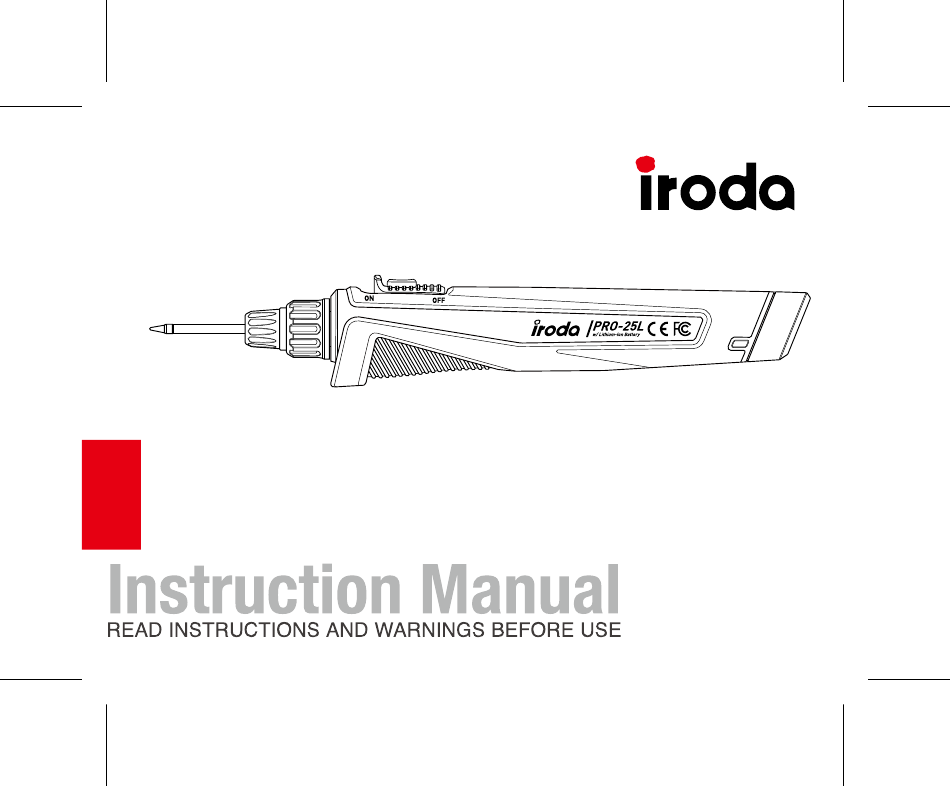

- Page 1 PRO-25LK USB BATTERY RECHARGABLE SOLDERING IRON...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Warnings: • Read instructions before use. • Do not disassemble or modify the battery. The battery contains safety and protection devices which if damaged, may cause the • Work only in a dry area free from flammable materials. battery to generate heat, rupture or ignite. • KEEP AWAY FROM CHILDREN. • If your PRO-25L malfunctions do not try to repair. Contact your • Never touch the tip of a hot soldering iron or attempt to remove dealer or online support for help. solder from the tip with your hands. • Ensure that switch is in the OFF position when the iron is not in use. • Tip remains hot after use for several minutes. Ensure tip is cool before storing the soldering iron.
- Page 3 DESCRIPTION Tooless Tip Power ON / OFF Change Button Switch Locking Soldering Knurled Flat Bevel Co-molded LED Charging -Safety Stand Handle Indicator...
- Page 4 HOW TO USE PRO-25L CHARGING (Fig. 1) 1. Connect the Micro USB connector to the Micro USB port at the end of the PRO 25L. 2. Connect the USB connector to a computer USB port or USB wall charger. LED Light • Charge battery for at least 3.5 hours before use. • The LED indicator Micro USB USB Micro-USB light will turn to Connector Connector Port green when fully charged. Fig.1...
- Page 5 5. Tin wires by heating the bare wire and allowing a small amount of SOLDERING solder to flow onto the tip of the wire. 6. Touch the tapered surface of the tip (not the point) to the joint to • Thoroughly clean and remove oil and other be soldered. Heat joint and allow heat from joint to melt solder. contaminants from parts to be soldered. 7. A llow a small amount of solder to flow into the joint. • Use only small amounts of solder. Excess solder 8. T o ensure a strong joint, do not touch or move the joint until it has can cause a short circuit. cooled completely. Note: The tip assembly can be turned to any 1. Slide ON/OFF Switch to ON position (Fig. 2) desired angle by turning black Knurled Nut. 2. Press and hold the Power Button. The LED light Use pliers to adjust to avoid touching tip. (Fig. 3) will illuminate indicating the iron is on. 3. Allow tip to reach working temperature (about 8 Fig.2 seconds) 4. A pply a small amount of solder to tapered surface of tip. Fig.3...
- Page 6 HOW TO REPLACE TIP SPECIAL WARNING • This product, when used for soldering and similar applications, • Ensure switch is in the OFF position. Allow tip produces chemicals known to the State of California to cause to cool completely before replacing tip. cancer and birth defects or other reproductive harm. • Use only genuine PRO-25L replacement tips. • Do not file tip. SPECIFICATIONS • Always tin tip after every use to avoid oxidation. Dimensions Length (With Cap) 260 mm (10.2 inches) 1. Unscrew old tip by rotating Locking Nut Width 29 mm (1.1 inches) counterclockwise. (Fig. 4) Height 40 mm (1.6 inches) 2. Screw in new tip by rotating Locking Nut Weight 4.6 oz. (130 g) clockwise. (Fig. 4) Battery Capacity 2900 mAH Soldering Tip ≈ 932 °F ± 90 °F (500 °C ± 50 °C) Fig.4...
- Page 7 WARNING: -Read the instructions before using the appliance. CAUTION: -Accessible parts may be very hot. Keep young children away from the appliance. www.pro-iroda.com...
