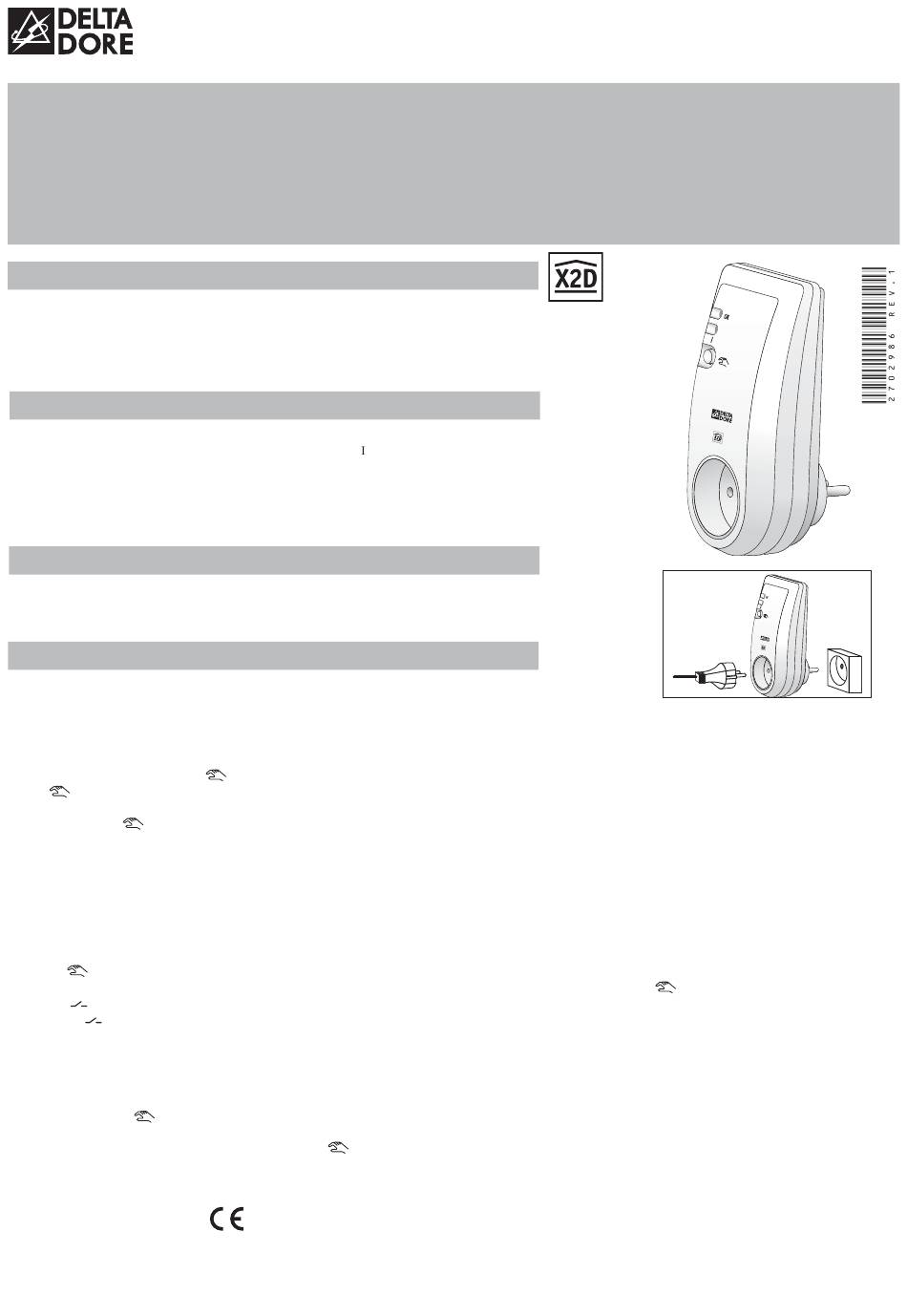

DELTA DORE AC 51115 Quick Start Manual

AC 51115
On/off 1-channel plug-in receiver
compatible with X2D Powerline Carrier systems

1. Presentation

AC 51115 receives information from a programming central control unit by
applying the principle of carrier transmission (use of the existing installation).
Its phone plug socket lets you connect it to a mobile convector (heating), a
control system (lighting, appliance (if controlled power compatible)), etc

2. Technical characteristics

• 230V 50 Hz power supply
• NO contact output, 10A - 230V
• 1 normal operation LED
• 1 output status LED
• 1 configuration or override button
• Phone plug unit: 140 x 72 x 40 mm.

3. Installation

The receiver is inserted directly between the unit to be
controlled and the socket for the corresponding power supply

4. Operation

4.1 Configuration / Reconfiguration

Each receiver is associated with a control channel of the installation's central control unit.
In configuration mode, the central control unit sends its parameter frame, which must be validated on the receiver.
➊
The green "OK" LED is in steady state and the receiver is already configured.
To reconfigure it, press and hold
Press again. The green "OK" LED is lit continuously and the receiver has now been reconfigured.
➋
If the green "OK" LED is flashing, the receiver is not configured.
Press and release . The green "OK" LED is lit continuously. The receiver is configured.

4.2 Operation

If the contact status (red) LED is on, the contact is closed.
If the green "OK" LED is in steady state, information is being received. If it is flashing,
the receiver is not receiving information. You must check that the control unit is correctly transmitting
or reconfigure the unit.

4.3 Suspending automatic management (override)

Pressing changes the output status.
This override will be cancelled the next time a status change is sent by the central control unit or by pressing
If the red LED is flashing, a manual override is "on" whereas the central control unit was requesting a "shutdown".
If the green LED is flashing, a manual override is in "shutdown" whereas the central control unit was requesting "on".

4.4 Switching off the LEDs

The LEDs can be switched off, for example in the case where the receiver is placed in a bedroom.
To do this:
- set the control unit to normal mode
- press and hold the button on the receiver for about 10 seconds, until the LEDs go out.
N.B.: To switch the LEDs back on, press and hold the
Delta Dore hereby declares that the equipment complies with the
essential requirements and other relevant provisions of the
R&TTE Directive 2004/108/CE (Electromagnetic Compatibility)
and 2006/95/EC (Low Voltage safety).
• Consumption: 2VA
• Class insulation
• Operating temperature: 0 °C to +40 °C
• Storage temperature: -10 °C to +70 °C
• Installing in an environment with normal pollution levels
• Relay contact break type: brownout / Type 1.c.
f
or 20 seconds until the green "OK" LED starts flashing, then release.
button on the receiver for about 10 seconds until the LEDs come back on.
The EC declaration of conformity for this equipment is available,
on request, from:
"Technical information" department
DELTA DORE - Bonnemain - 35270 Combourg (France)
E-mail : info.techniques@deltadore.com
Control system
controlled
again.
