Install the Camera

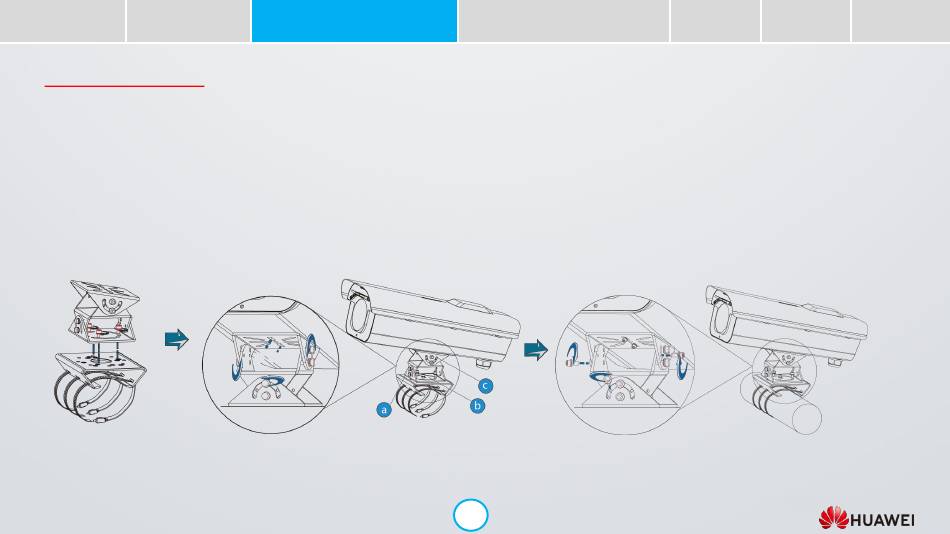

Erect the pole and install the camera above the center of the scene according to the system scheme.
1. Install the universal joint on the pole mount, adjust the horizontal and vertical shooting angles of the camera, and
tighten all screws on the universal joint.
2. Install the camera on the universal joint and tighten the screws. By loosening the screws (indicated by a, b, and c)
on the universal joint, you can adjust the tilt angle, horizontal angle, and vertical angle of the camera.
3. Thread the hose clamps through the installation holes on the pole mount, place them around the beam, and
tighten them up.
