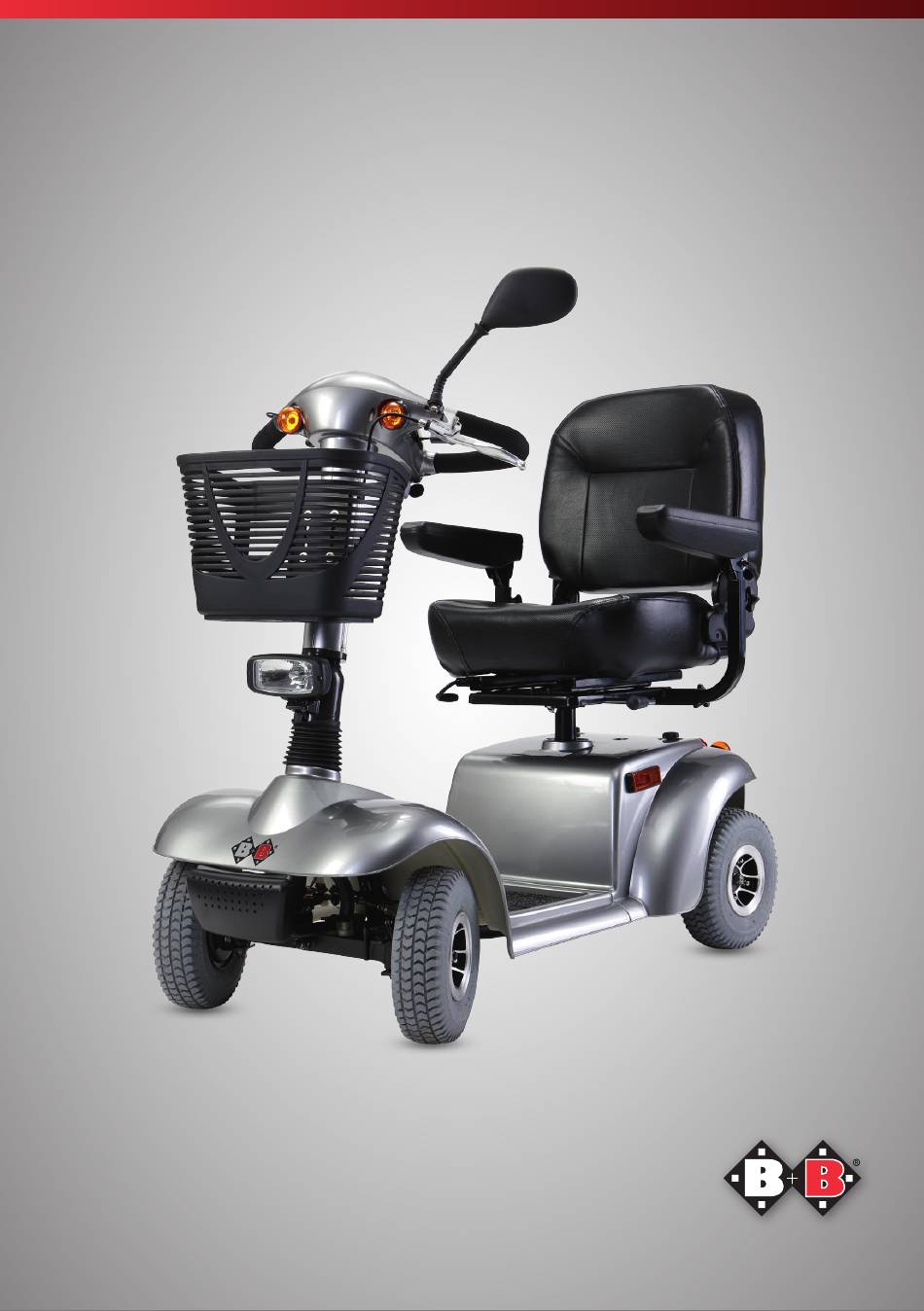

  • Page 1 Instruction Manual Bedienungsanleitung FORTIS Enjoy mobility. Enjoy mobility.

  • Page 2: Table Of Contents

    FORTIS | Scooter Table of content Introduction 1.1. Signs and symbols Important safety instructions 2.1. General safety instructions 2.2. Information on EMC interference 2.3. Brakes 2.4. Safety in vehicles 2.5. Use on Public Roads 2.6. Purpose 2.7. Indications 2.8. Contraindications 2.9.
  • Page 3 FORTIS Scooter | Using the scooter 4.1. Control functions 4.2. Getting in and out 4.3. Driving the scooter 4.4. Pushing mode 4.4.1 Brakes in pushing mode 4.5. Overload switch 4.6. Disengaging the drive unit 4.7. Transporting the scooter Technical data Care instructions for the user 6.1.

  • Page 4: Introduction

    FORTIS | Scooter 1. Introduction Dear user, You have decided on a high-quality Bischoff & Bischoff scooter, and we would like to thank you for your trust. The scooter was designed to offer you many advantages and meet your needs. Thanks to the various adjustment options and optimum adaptability, the scooter can be adjusted according to your individual body size.

  • Page 5: Important Safety Instructions

    FORTIS Scooter | 2. Important safety instructions 2.1. General safety instructions • To avoid falls and dangerous situations, you should first practice driving your new scooter on level, unobstructed ground. We recommend having an assistant with you. • Before operating the scooter, please check that all attached parts are correctly fastened.

  • Page 6: Information On Emc Interference

    FORTIS | Scooter • The rear lights at the scooter must always be visible to other road users. • If possible, wear bright, conspicuous clothing. This will make it easier for other road users to see you. • Please note that the upholstery will heat up if directly exposed to sunlight and may cause injuries to your skin when touched.

  • Page 7: Brakes

    The scooter Fortis is designed for outdoor use by persons with impaired mobility. It is therefore capable of travelling long distances and overcoming obstacles outdoors. The scooter Fortis is classified according to EN 12184 in category C. The maximum load capacity is 135 kg.

  • Page 8: Indications

    • with strongly impaired cognitive abilities 2.9. Declaration of conformity Bischoff & Bischoff GmbH as the manufacturer declares under its sole responsibility that the Fortis scooter complies with the requirements of Directive 93/42/EEC and ISO 7176-14:2008.

  • Page 9: Information About Range

    FORTIS Scooter | 2.10. Information about range The range of the scooter Fortis is 26 km. The range that can be achieved by electric scooters depends on the following factors: • Composition of the carriageway • Way of driving •...

  • Page 10: Description Of Product And Contents

    3. Description of Product and Contents 3.1. Inspection on Delivery All B+B products undergo a proper final inspection in our company and are labeled with the CE mark. The scooter is delivered in a special carton. Keep the carton after un- packing, if possible.

  • Page 11: Type Plate And Serial Number

    Power Wheelchairs (not crash tested) Bischoff & Bischoff GmbH Becker-Göring-Straße 13 D - 76307 Karlsbad Telefon 0700 - 60007070 Model: Fortis Model no.: 8129 Class: C (Outdoor) 2015-09 Max. weight capacity: 135kg Max. speed: 6 km/h EAN 13...

  • Page 12: Contents

    FORTIS | Scooter 3.3. Contents After receipt of the goods, please check the contents for completeness right away. The contents consist of: • outer package • Scooter (ready for use incl. 2 batteries) • Charger • Operating manual 3.4. Summary...

  • Page 13: Basic Adjustments

    FORTIS Scooter | 3.5. Basic adjustments Before using the scooter for the first time, it is necessary to adjust the scooter according to your height. This is essential to ensure that your posture is physiologically correct for driving for extended periods of time without excessive fatigue.

  • Page 14: Back Rest

    FORTIS | Scooter Moving the seat • Pull the lever (on the right below the seat surface, fig. 05) towards you. The seat can now be moved forwards and backwards. • You can now adjust the seat to the required position.

  • Page 15: Armrests

    FORTIS Scooter | 3.5.4. Arm rests The arm rests can be swivelled backwards in order to make it easier to mount and dismount. In addition, the height, distance and angle of support of the arm rests can be adjusted. Height •...

  • Page 16: Using The Scooter

    FORTIS | Scooter 4. Using the scooter After you have adjusted the scooter according to your height, familiarise yourself with the functions of the controller. 4.1. Control Functions The controller is a component of the steering column of your scooter. It contains LED displays and functional elements.
  • Page 17 FORTIS Scooter | Speed setting You can use these buttons (fig. 15) to set the maximum speed. • Turn the switch to the left ( turtle) to reduce the maximum allowed speed. • Turn the switch to the right (rabbit), to raise up to the maximum allowed speed.

  • Page 18: Getting In And Out

    FORTIS | Scooter Indicators (left/right) Use this button (fig. 18) to switch on the left or right indicator on your scooter to signal to other road users that you wish to turn left/right. Pressing the button again turns the indicator off again.

  • Page 19: Driving The Scooter

    FORTIS Scooter | 4.3. Driving the scooter You should make your first journey on a level site with ample space • Ensure that you are sitting correctly on your scooter. Set the speed as low as possible. You can increase the speed when you are more familiar with handling the scooter.

  • Page 20: Pushing Mode

    FORTIS | Scooter • It is necessary to pay attention when reversing. Ensure that your speed is low before reversing. Please keep in mind that you need to steer in the opposite direction when you are reversing. This requires practice. Practice this also on a level site with ample space.

  • Page 21: Brakes In Pushing Mode

    FORTIS Scooter | For safety reasons, the motor drive is locked when the scooter is being operated in pushing mode. Caution! Danger of fatal injury! The drives must only be disconnected on a level surface. 4.4.1. Brakes in pushing mode A manual service brake is attached to your scooter (as described in section 2.3).

  • Page 22: Disengaging The Drive Unit

    FORTIS | Scooter The scooter should now function properly again. If it does not, please contact your mobility dealer or our customer service. 4.6. Disengaging the drive unit In order to save as much space as possible for transport, the drive unit, including the motor and rear wheels, can be disengaged.
  • Page 23 FORTIS Scooter | • You must now lift the front frame and push it forwards in order to disconnect the drive unit. • The drive unit is now disengaged. Perform the operations in the reverse sequence to re-engage it. •...

  • Page 24: Transporting The Scooter

    FORTIS | Scooter 4.7. Transporting the scooter The scooter‘s modular design enables you to transport it, even in vehicles with relatively little stowage space. RISK OF ENTRAPMENT! Ensure that you are aware of the increased risk of entrapment when stowing your scooter.
  • Page 25 • Fixation points on the restraint system (see fig. D) All products approved by B+B for use as seats in vehicles are tested in accordance with ISO 7176-19. The tests in accordance with ISO 7176-19 were performed using restraint systems from AMF-Bruns. The...

  • Page 26: Technical Data

    FORTIS | Scooter 5. Technical data Dimensions and weights Max. load : 135 kg Seat width : 44 - 47 cm Seat depth : 40 - 41 cm Seat angle : 4° Seat height, from foot rest : 50 cm...
  • Page 27 FORTIS Scooter | Tyres Driving wheels : 260 x 85 mm (3.5 bar) Steering wheels : 260 x 85 mm (3.5 bar) Driving characteristics Speed : 6 km/h (forwards) Climbing capacity : 12° Max. obstacle height : 60 mm (with 0.5 m approach to obstacle)

  • Page 28: Care Instructions For The User

    FORTIS | Scooter 6. Care instructions for the user 6.1. Cleaning and disinfection Ensure that the scooter is switched off before starting to clean it. • The frame and the paneling of the scooter can be cleaned with a moist cloth. You can use a mild detergent for more stubborn dirt.

  • Page 29: Check Before Use

    FORTIS Scooter | 6.2. Check Before Use 6.2.1. Brake Inspection Make sure your brakes are operating properly before each use. • Start off carefully and let go of the throttle lever. The scooter must come to a complete stop as usual.

  • Page 30: Checking The Tyres

    FORTIS | Scooter 6.2.3. Inspection of Tyres Before embarking on any journey, check that the tyres are in good condition. • Check the tyre pressure. This should be 3.5 bar. • Carry out a regular check of the tread depth of the tyres once a month.

  • Page 31: Charging

    Scooter | 6.3.1. Charging Only use approved chargers (of the type specified in the Technical data or supplied by the B+B mobiliy dealer) to charge the batteries. Ensure that you also follow the instructions for use of the charger. •...
  • Page 32 FORTIS | Scooter Only use batteries that are approved for this scooter (see Technical data). Ensure that the scooter is switched off before starting to replace the batteries. The batteries are located under the seat of the scooter and are protected by the housing cover.

  • Page 33: Maintenance Tips For Retailers

    A training programme is available for mobility dealers. If you have questions, you can contact the B+B customer service by telephoning +49 (0)700/6000 7070. 8. Storage / Shipping If the scooter is to be stored or shipped, all attachable and unsecured parts must be removed and packed individually in appropriate cartons.

  • Page 34: Use By Others

    FORTIS | Scooter 10. Use by others The Fortis is appropriate for use by others. For use by others, the scooter must first be thoroughly cleaned and disinfected according to the accompanying care and hygiene instructions. The product shall get checked by a qualified mobility dealer for general condition, wear and shall get repaired if necessary.
  • Page 35 Tip! In spite of careful research and editing, incorrect information may have crept into our operating manuals. The current version of each instruction manual is ready for download at the B+B website: www.bischoff-bischoff.com Bischoff & Bischoff GmbH | 12.11.2015...
  • Page 36 Bischoff & Bischoff GmbH Becker-Göring-Straße 13 D-76307 Karlsbad www.bischoff-bischoff.com...

This manual is also suitable for:

8129
