PEAKnx Controlpro Short Manual page 11

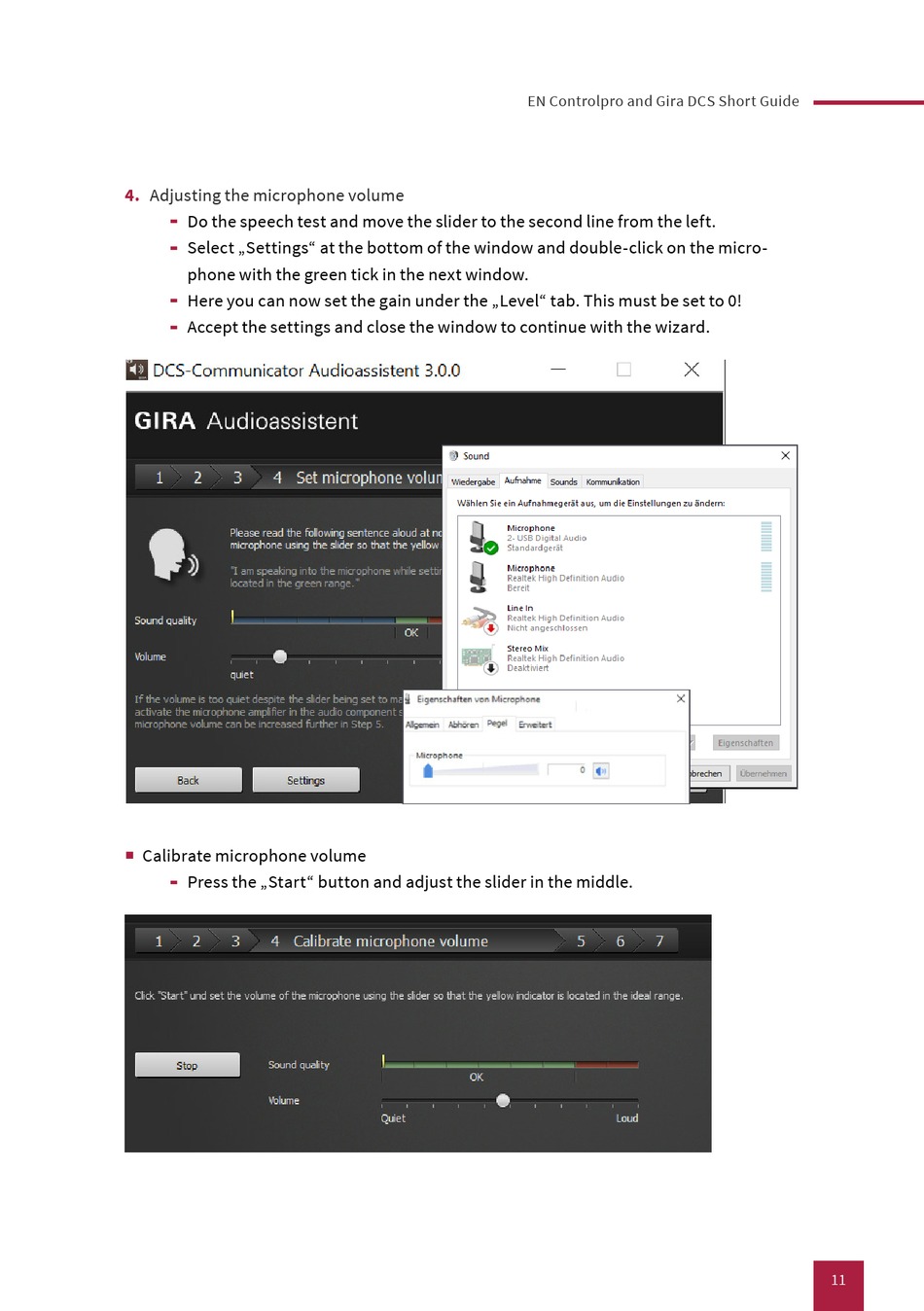

4. Adjusting the microphone volume
ж
Do the speech test and move the slider to the second line from the left.
ж
Select „Settings" at the bottom of the window and double-click on the micro-
phone with the green tick in the next window.
ж
Here you can now set the gain under the „Level" tab. This must be set to 0!
ж
Accept the settings and close the window to continue with the wizard.
■
Calibrate microphone volume
ж
Press the „Start" button and adjust the slider in the middle.
EN Controlpro and Gira DCS Short Guide
11
