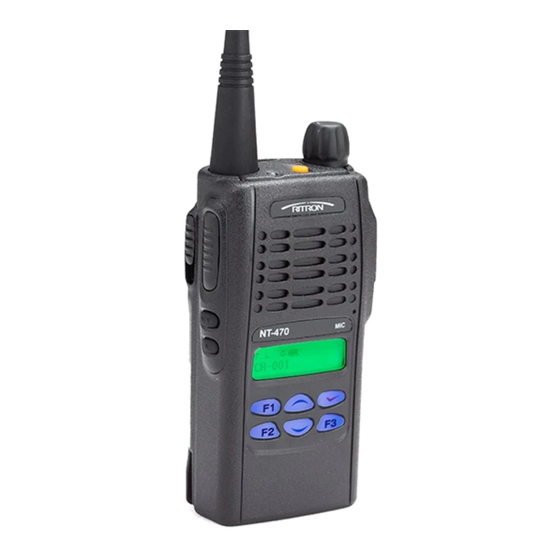

Ritron NT Series User Manual

Ritron NT Series User Manual

Professional two-way radio
Hide thumbs Also See for NT Series:

Advertisement

Quick Links

Professional Two-Way Radio
NT Series User Manual
Canadian Models:
NT-174, (VHF) 136 -174MHz, 5W/2W
Industry Canada: 1084A-NT174
NT-470, (UHF) 403 -470MHz, 4W/2W
Industry Canada: 1084A-NT470
IP 65 Certified Resistance to Water/Dust
505 W. Carmel Drive, Carmel, IN 46032 • Phone: 317.846.1201 • Email: sales_info@ritron.com
© 2020 Ritron, Inc. All rights reserved. Ritron is a registered trademark of Ritron, Inc. All other trademarks are the property of their
respective owners. Ritron PN: 14500101 CAN
Analog, Narrow Band Capable
255 Channels
Narrow Frequency Channel Steps
VHF: 2.5/12.5 KHz
UHF: 2.5/6/25/12.5KHz
CTCSS/CDCSS Encode/Decode
Selective Signaling Encode/Decode:
DTMF, Selcal and 2-Tone (300-3000Hz)
LCD Dot Matrix 14 Character Display
Radio Status Icons
Scrambler
Priority and Normal Channel Scan
6 Programmable PF Buttons
Loud Audio Output – 1000mW
MIL STD 810F
Temperature/Humidity/Shock/Vibration
800-USA-1-USA (872-1-872)
www.ritron.com
Default Frequencies and Settings
Dear Customer,
Thank you for your purchase of the NT Series radio. Each NT-174 and
NT-470 radio comes pre-programmed with the *2 factory default chan-
nel frequencies listed below. The frequencies cannot be changed via the
keypad buttons. Other factory default radio settings i.e. Programmable
Function Buttons are listed on Page 6 to 10.
If your company currently has a license on frequencies other than the
default settings, the NT radio can be PC programmed to custom
frequencies using optional Ritron PC software, other settings can also
be re-configured. Please contact Ritron, Inc. toll free at 800-872-1872
for information on "custom" radio programming services.
Please be advised that operation on the factory default frequencies
require that you obtain a Canadian Operator License BEFORE USE.
NT-174 (VHF)
Default Frequency Settings - Operating band *136-174MHz
Ch1 FC # 3 (151.055MHz) Narrow Band - no tone - 2/5 Watts
Ch2 FC # 4 (151.115MHz) Narrow Band - no tone - 2/5 Watts
NT-470 (UHF)
Default Frequency Settings - Operating band *406-470MHz
Ch1 FC # 5 (458.6625MHz) Narrow Band - no tone - 2/4 Watts
Ch2 FC # 8 (469.2625MHz) Narrow Band - no tone - 2/4 Watts
Narrow Band = 12.5KHz bandwidth
Tone = tone codes can be added via the keypad by the radio user.
See page 11 for details.
The standard antenna supplied is cut for operation in the
following frequency bands:
VHF: 150-160MHz
UHF: 450-470MHz
Operation on frequencies outside this range will require a
custom cut antenna.
1.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ritron NT Series

  • Page 1 505 W. Carmel Drive, Carmel, IN 46032 • Phone: 317.846.1201 • Email: sales_info@ritron.com © 2020 Ritron, Inc. All rights reserved. Ritron is a registered trademark of Ritron, Inc. All other trademarks are the property of their respective owners. Ritron PN: 14500101 CAN...
  • Page 2 For pictures of accessories go to: http://www.ritron.com/accessories.html CONTENTS ITEMS INCLUDED PAGE WITH EACH RADIO ACCESSORIES Part No. Default Frequencies & Settings..1 Ear Loop with PTT RHD-16X Included Items.………………...2 & Microphone, 2 Pin Conn RSM-10X Accessories.……………..………..3 Speaker Microphone, 2 Pin...
  • Page 3 • Plug the AC power cord of the capacity and for safe operation. charger into a wall outlet. • The battery is designed for the NT Series charger only. Please • Turn the transceiver off. do not charge the battery with any other brand charger.
  • Page 4 PF buttons. The other features listed can be custom programmed Factory PF Button Default Function Description of Function using special PC software. Contact Ritron for details. Menu #6. Orange Emergency Momentary press will activate Emergency tone. The word...
  • Page 5 Menu Menu Function/Feature Assignable Accessible Function/Feature Assignable Accessible Information Displays firmware resolution Password Prevents unauthorized use of the radio. and current battery voltage At radio turn on user must enter 4 character Group Select When programmed to a programmable password before radio will operate. Password is function button, allows quick access to a group of up to entered using the Up/Dwn scroll buttons and 10 pre-programmed channels.
  • Page 6 Tone Code Tables Function/Feature Menu CTCSS (Continuous Tone Coded Squelch System) Frequency Chart Assignable Accessible Display Display Display Display Freq (Hz) Freq (Hz) Freq (Hz) Freq (Hz) Caller/Group ID Each transmission (16 possible 67.0 110.9 179.9 177.3 codes) is uniquely identified. Receiving radios 71.9 114.8 186.2...
  • Page 7 Push-To-Talk (PTT). Pour recevoir des appels, relâchez le bouton PTT. La transmission à 50% du temps, ou moins, est importante • When worn on the body, always place the radio in a Ritron approved clip, holder, holster, case, or body harness for this product.
  • Page 8 IMPORTANT: This warranty sets forth the full extent of RITRON’s express responsibilities regarding the • Repair of Ritron products should be performed only by Ritron covered products, and is given in lieu of all other express warranties. What RITRON has agreed to do authorized personnel.
