Spektrum SLT3 3CH User Manual

EN

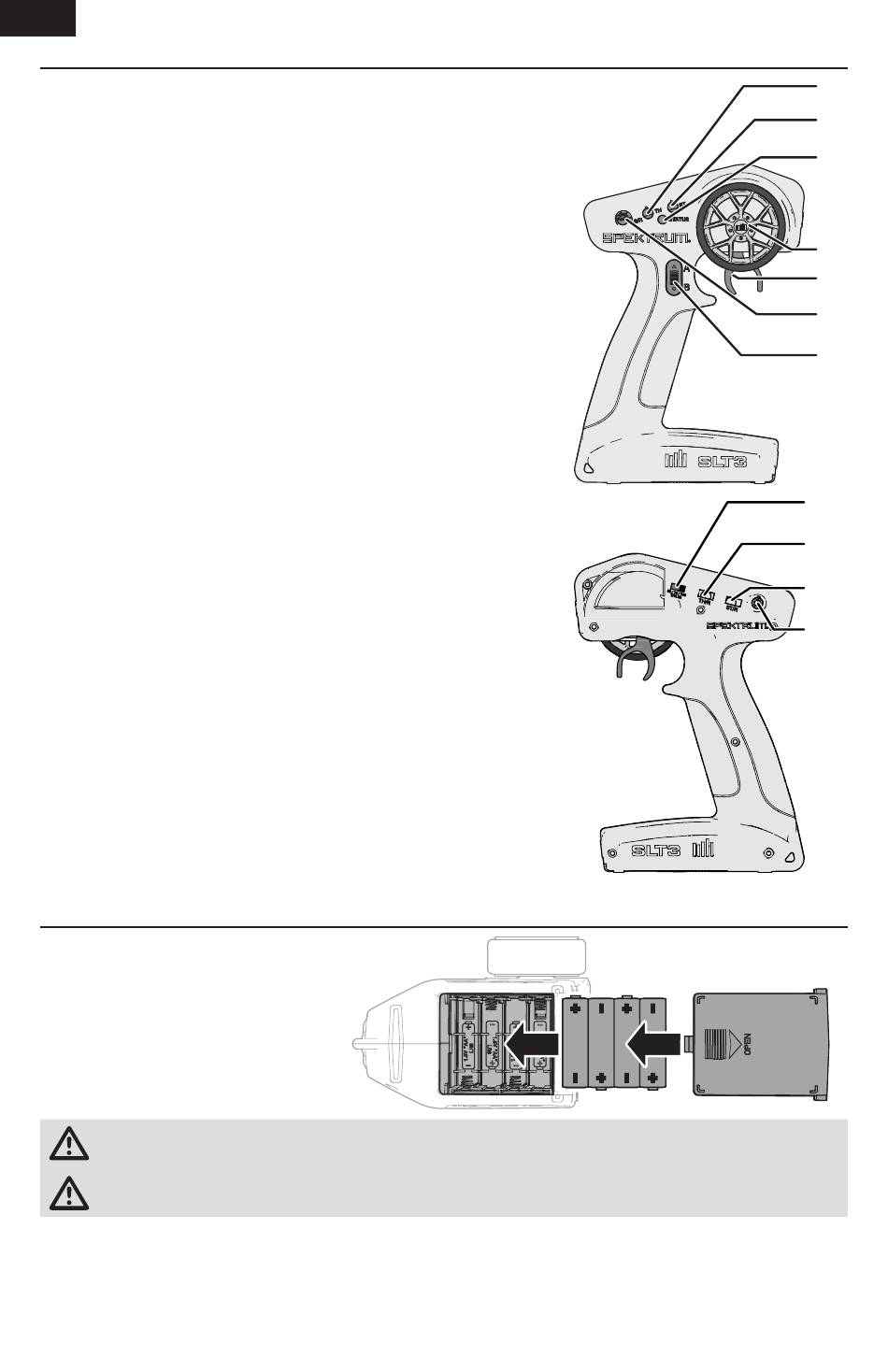

TRANSMITTER FUNCTIONS
Specifications
Power Supply:
4 AA Batteries
Operating Frequency:
Transmit Power:
<100mw
Control Protocol:
SLT
Control
: Proportional Steering and Throttle/Brake with Trim Knobs,
Third Channel with 3 Position Momentary Switch
Auxiliary Functions:
Rate Knob to Change Steering Travel on-the-fly, Programmable Servo
Travel for Steering and Throttle/Brake
A. Throttle Trim
Adjusts the throttle neutral point
B. Steering Trim
Adjusts the steering center point. Normally, the steering trim is adjusted until
the vehicle tracks straight.
C. LED
• Solid red lights: Indicates the power is ON and adequate battery power
• Flashing red lights: Indicates the battery voltage is critically low.
Replace batteries
D. Steering Wheel
E. Throttle/Brake
F. Steering Rate
On-The-Fly knob for travel adjustment on the steering
G. Channel 3
3 position momentary switch, middle position is neutral
For programming press up for A button, press down for B button
H. Throttle Limit
Limits throttle output to 50/75/100%
Select 50% or 75% for less experienced drivers or when you are driving the
vehicle in a small area.
I. Throttle (TH) Servo Reversing
Move the switch to reverse the throttle channel
J. Steering (ST) Servo Reversing
Move the switch to reverse the steering channel
K. Power Button
INSTALLING THE TRANSMITTER BATTERIES
This transmitter requires 4 AA batteries.
1. Remove the battery cover from the
transmitter.
2. Install the batteries as shown.
3. Install the battery cover.
CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries
may cause the batteries to burst, resulting in injury to persons and/or damage to property.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to
national regulations.
2
2.4GHz
3 Position Throttle Limit Switch, Steering
A. A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
SPEKTRUM SLT3 USER GUIDE
