Alfa Network R36 Instructions

802.11 b/g/n repeater and range extender
Hide thumbs Also See for R36:
1
2
3
4
5

Advertisement

Quick Links

Download this manual
The manufacturers instruction are very poor ,so please use the information below to assist in setting up a new WiFi
connection on the R36
These instructions apply only when the R36 has been initially set up.....
Step 1.
Connect the AWUS036H or another compatabile Wireless Network Adapter into the R36's USB port and power on
the R36
Step 2.
I.Using your PC,Ipad or Tablet's wireless network adapter connect to the *R36
II.Once connected to the R36- from a **web browser such as chrome,firefox or Internet explorer navigate to this
web page
http://192.168.2.1

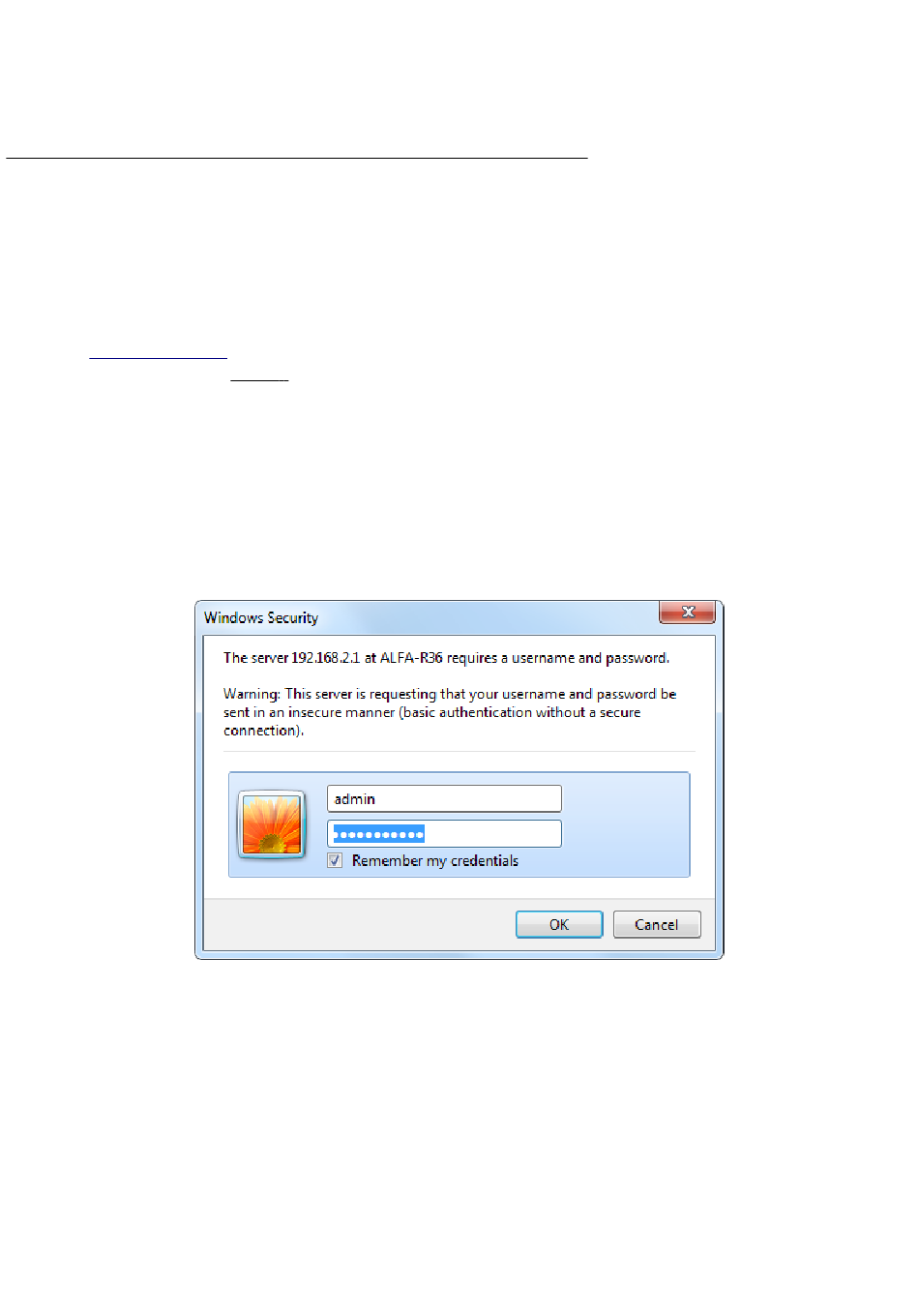

,a small screen will pop up requesting User name and Password ,by default the user
name and password are both admin (User name and password can both be located on the bottom of the R36)
*(The wireless internet connection of the R36 might be called ALFA_AP or something different if you changed the
SSID name when first setting up the R36)
**Their are issues with using older version of Androids default browser (it does not work) (Android 4.X has been
confirmed to work ok) and so please install a different web browser such as firefox mobile to work around this issue

Advertisement

loading

Related Manuals for Alfa Network R36

Summary of Contents for Alfa Network R36

  • Page 1 ,a small screen will pop up requesting User name and Password ,by default the user name and password are both admin (User name and password can both be located on the bottom of the R36) *(The wireless internet connection of the R36 might be called ALFA_AP or something different if you changed the SSID name when first setting up the R36) **Their are issues with using older version of Androids default browser (it does not work) (Android 4.X has been...
  • Page 2 Once logged on ,you will be on the R36's status Tab, here you will see if you already have a working internet connection and if not then this is were you start the process of setting one up How to set up or change to another wireless network On the R36 status page you will see a button called "change profile"...
  • Page 3 Step 4.Click Site Survey (the R36 will now use the external wireless network adapter that is plugged in to the USB port of the R36 (for example AWUS036H Wireless USB adapter) and show the available networks detected. Step 5. Check the bullet point to the left of the SSID of the wireless internet connection you wish to connect to...
  • Page 4 Step 6.Ensure Infrastructure mode is Selected and NOT adhoc in section 7E below Step 7.The required information fields are automatically filled in when you Enable a profile which you had already selected in step 6, (with the exception of any password required if any security has been used on the wireless network) 7a.
  • Page 5 Step 8.click Save (another window should appear asking you "do you want to Save and Activate or Cancel). Select Activate/Save...waiting a few seconds and the R36 will save the profile. 9.On the satus tab you should now have under the Internet Configuration section ..Connected Status as Connected...
