Related Manuals for Alfa Network WiFi CampPro Kit
Summary of Contents for Alfa Network WiFi CampPro Kit

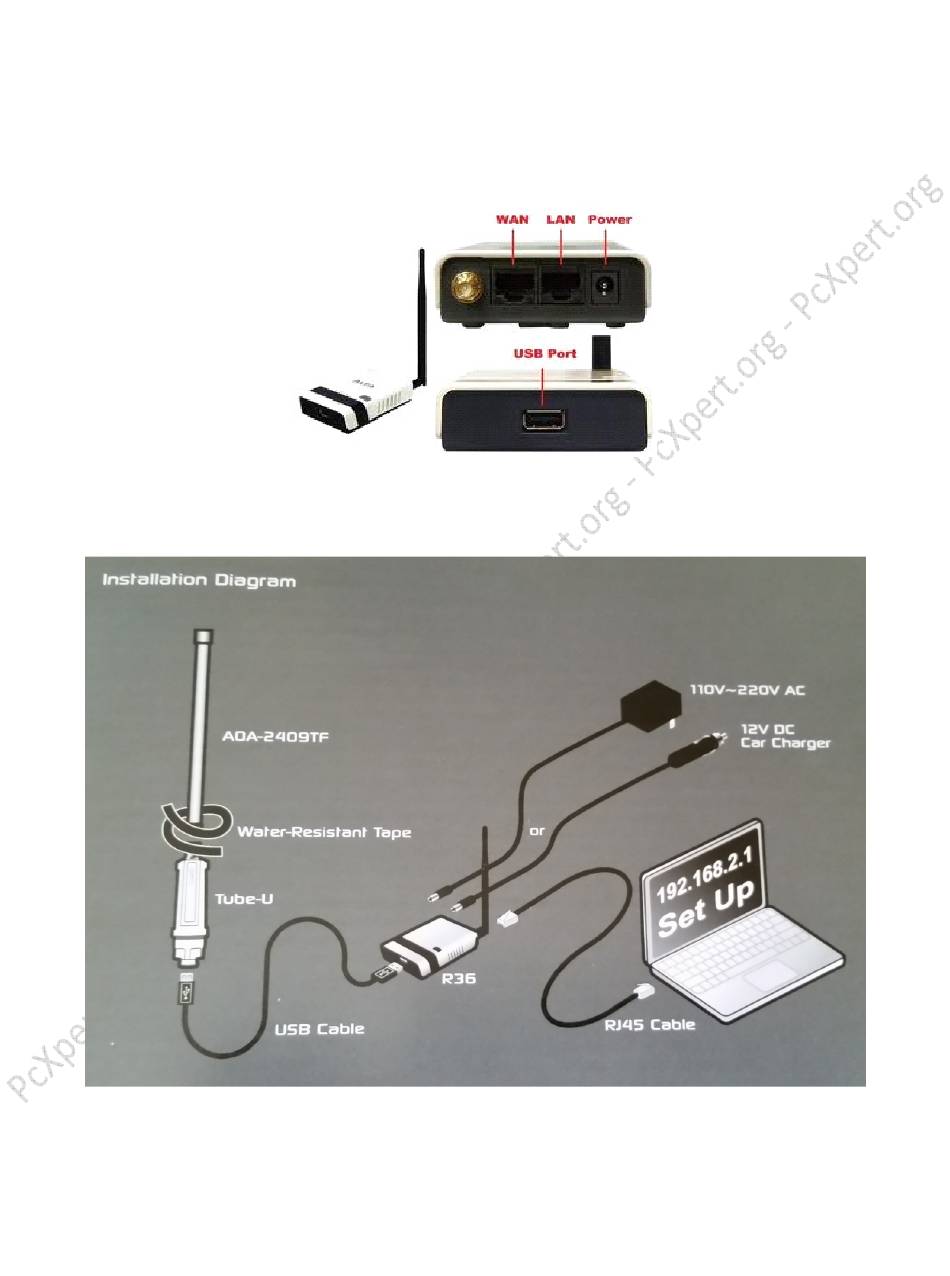

- Page 1 Alfa_WiFi CampPro_Kit Setup Guide Read entire Guide before begin with setup Install Devices as shown below and then connect 110V AC or 12 volt DC Adapter to the power source.
- Page 2 Configuring with a Computer 1. Connect the Rj45 (Network) cable to the computer and other end into the LAN port on the R36 2. Open a Web page using Internet Explorer, Google Chrome, or Firefox and type: http://192.168.2.1 (or 192.168.2.1) in the address bar and press "Enter" If you cannot reach the setup page, restart the Computer, if you use a Laptop, you may need to disable Wifi Radio temporarliy.
- Page 3 Click on « Site Survey » Select The Wi-Fi Network you want to connect to (Do Not select “ALFA_AP”, your own Network) Signal Strenght: (-20)= very Strong (-70)weak...
- Page 4 Enter the Password (Security Key) in the "pass phrase" box and click "Next" If you connect to an unprotected network, (it will not ask for Passphrase) simply click on Next.
- Page 5 Next step may take up to 1 minute until you can see "Connected"...
- Page 6 ALL Done! You’re Online! You can close setup window. If you do NOT see “Connected” begin from start! The R36’s default WiFi Network Name (SSID) is “ALFA_AP” and is open for access to anyone (not password protected) Any Wireless Device can now connect to ALFA_AP Network and surf on internet. Presented by www.pcXpert.org This Guide is free for use but please Do NOT contact us for help if you did not buy the...
- Page 7 Enter password in Pass Phrase line and click “Apply” After setting a password, you will need this password to connect to ALFA_AP...
- Page 8 If you cannot connect to a specific Wifi Network in site survey, you may need to change the R36’s default LAN ip address (192.168.2.1) If the Router you want to connect to uses same LAN address it may be in IP address conflict. Here we change LAN to 192.168.20.1 NOTE;...
- Page 9 ======================================= R36 Firmware Upgrade: If you need to upgrade Firmware for R36 router. http://www.alfa.com.tw/download.php (use Internet Explorer) select & download / save firmware on computer as shown here...
- Page 10 After Firmware download, follow upgrade instructions here: http://www.alfa.com.tw/faq_show.php?sn=4 Other Helpful links: http://www.alfa.com.tw/faq.php...
