Velopex Intra-X User Manual page 12

4 VELOPEX INTRA-X
User Guide

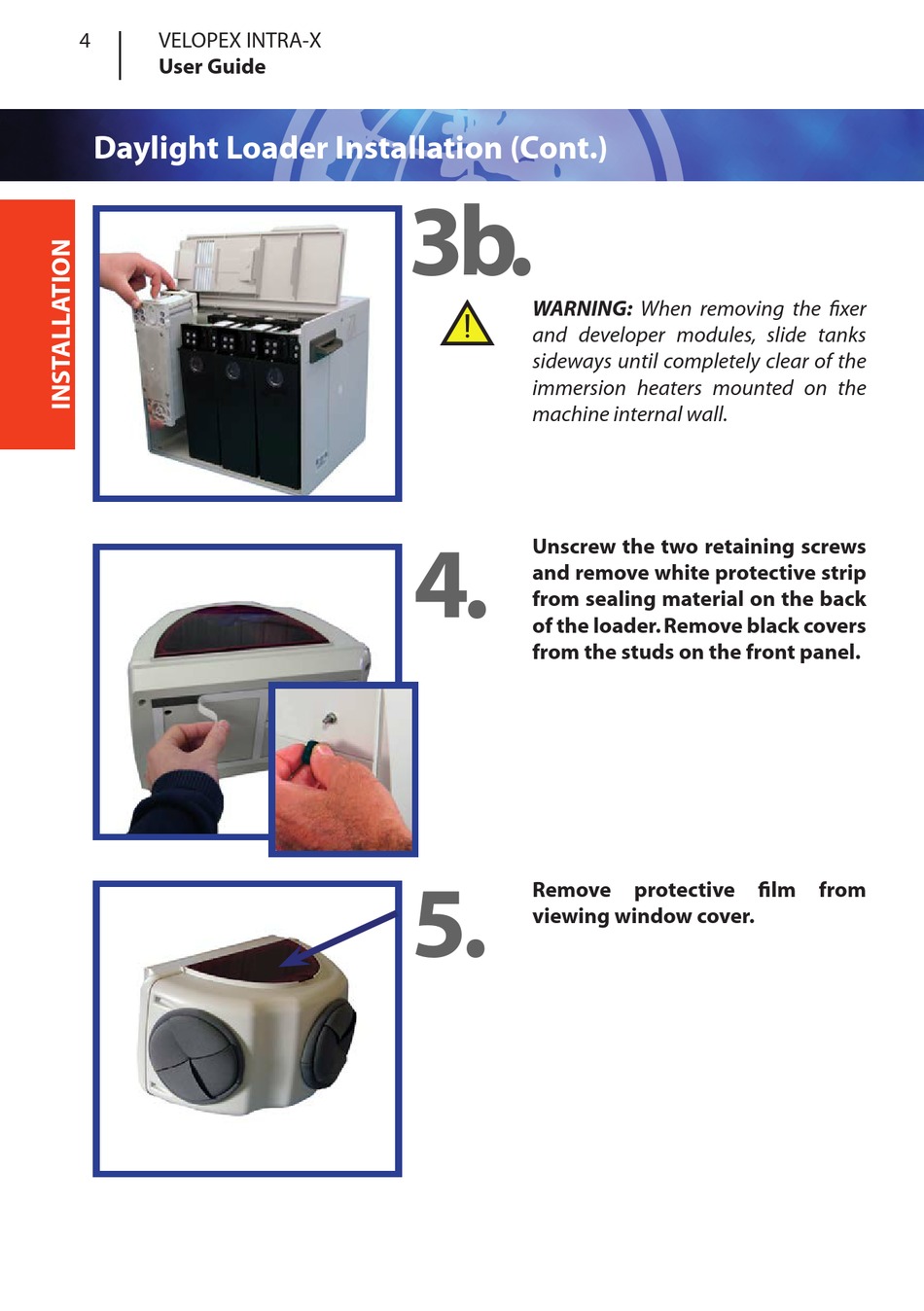

Daylight Loader Installation (Cont.)
3 b .
WARNING: When removing the fixer
and developer modules, slide tanks
sideways until completely clear of the
immersion heaters mounted on the
machine internal wall.
4 .
Unscrew the two retaining screws
and remove white protective strip
from sealing material on the back
of the loader. Remove black covers
from the studs on the front panel.
5 .
Remove protective film from
viewing window cover.
