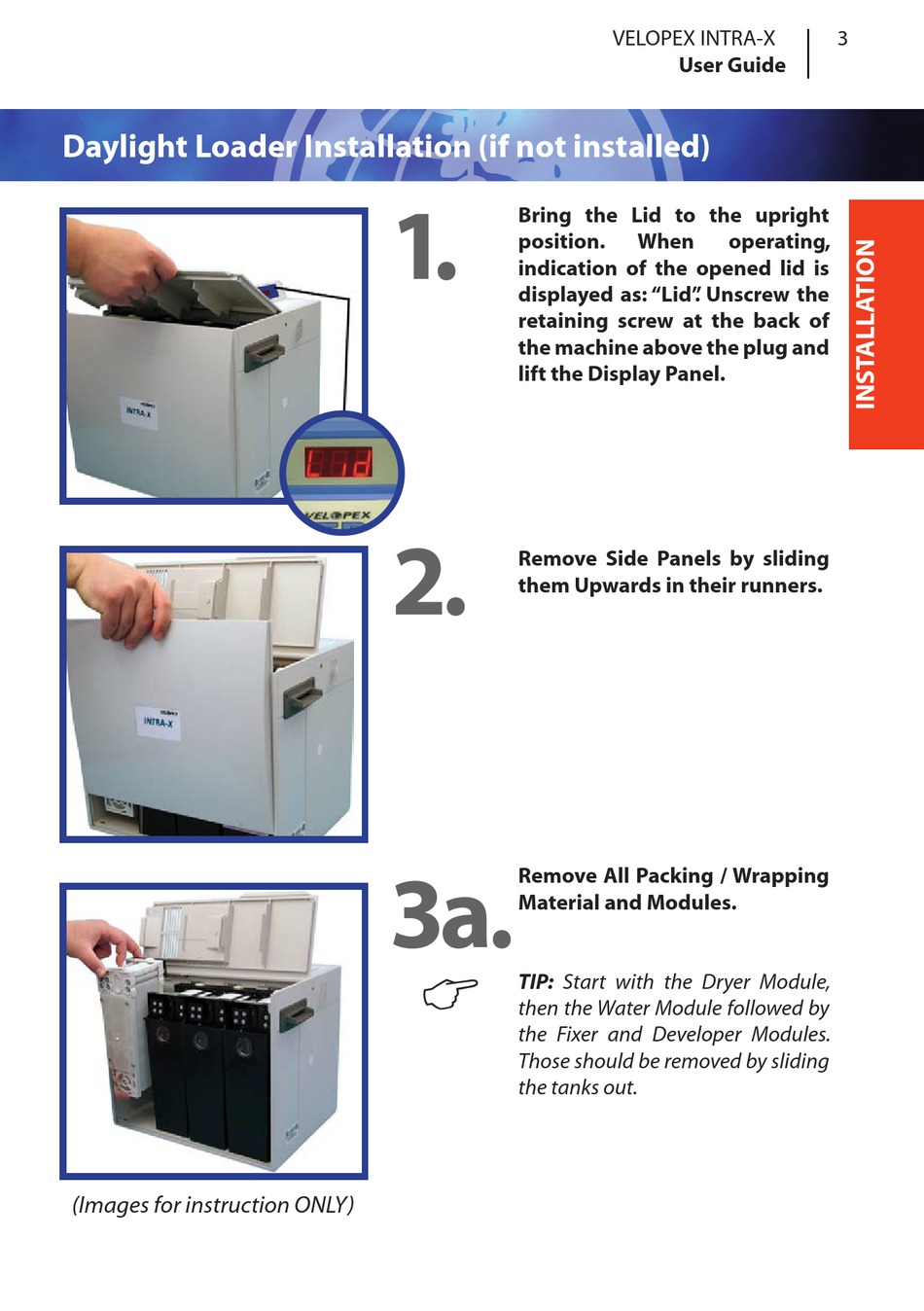

VELOPEX INTRA-X 3
User Guide
Daylight Loader Installation (if not installed)
1.
Bring the Lid to the upright
position. When operating,
indication of the opened lid is
displayed as: "Lid" . Unscrew the
retaining screw at the back of
the machine above the plug and
lift the Display Panel.
2 .
Remove Side Panels by sliding
them Upwards in their runners.
3a.
Remove All Packing / Wrapping
Material and Modules.
TIP: Start with the Dryer Module,
then the Water Module followed by
the Fixer and Developer Modules.
Those should be removed by sliding
the tanks out.
(Images for instruction ONLY)
