Summary of Contents for ARMTEL ACM-IP2

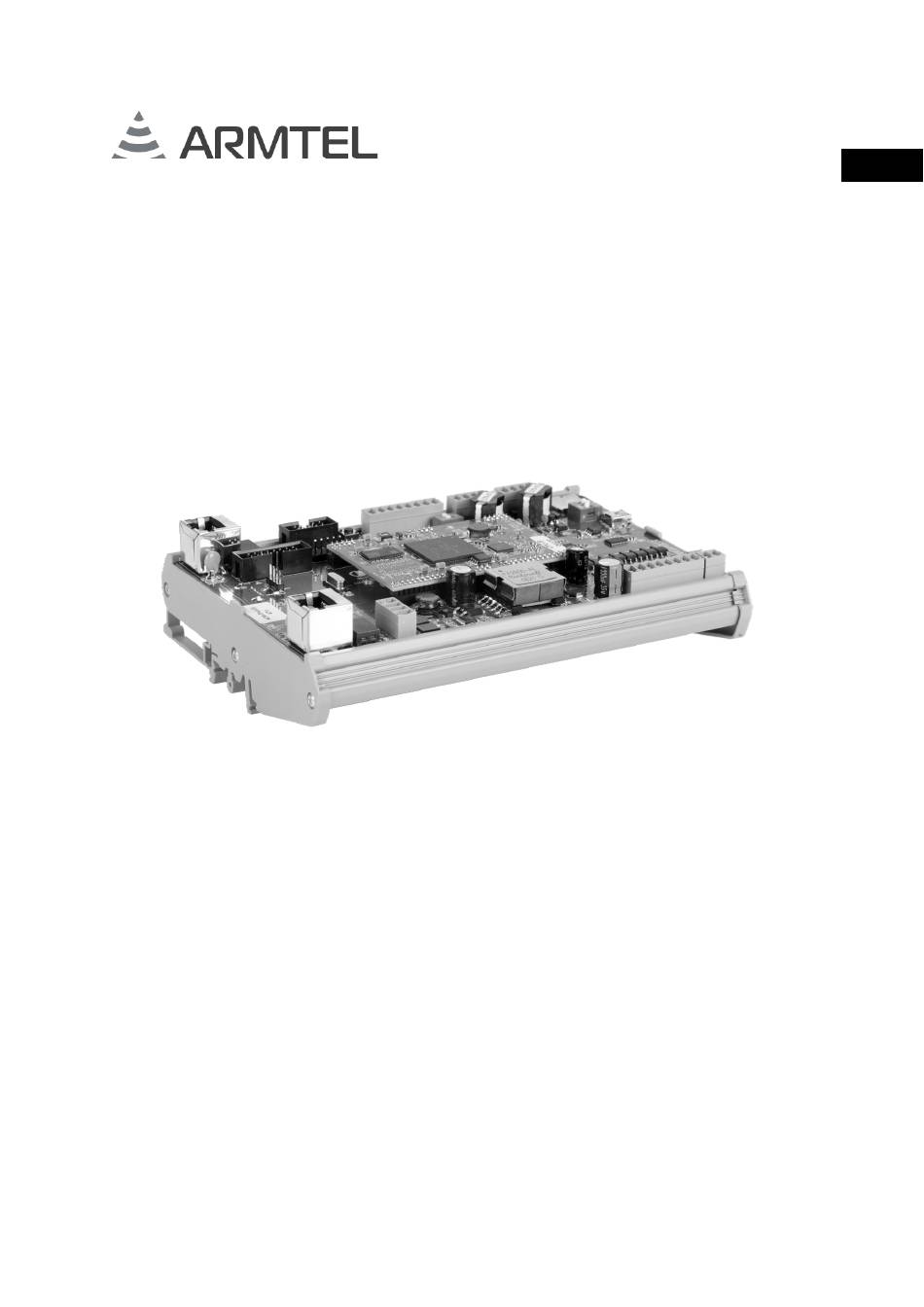

- Page 1 ACM-IP2 Analogue subsystems module RMLT.465275.006PP Product Passport Version identification: RMLT.465275.006-____ Serial number: _______________ Document version 13 26.30.11.190 2020...
- Page 2 © Armtel info@armtel.com...
-
Page 3: Table Of Contents
ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport CONTENTS 1 Product essentials and technical information ......................2 2 Scope of supply ................................. 8 3 Operation lifetme and Manufacturer (Supplier) warranties................9 4 Packing certificate................................11 5 Acceptance certificate ..............................11 6 Notes for Product operation and storage ......................12 7 Waste recovery ................................ -
Page 4: Product Essentials And Technical Information
Product identification: RMLT.465275.006 Manufacturer: Armtel LLC www.armtel.com 1.1 ACM-IP2 is designed for use in distributed and centralized digital Intercom and Public Address / General Alarm communication systems (based on allotted SIP server) at industrial and transportation facilities. АСМ-IP2 enables to use analogue equipment and to interact with automation and alarm units. - Page 5 − Х22 – negative potential on the load line, for example, the relay windings; − Х42 – micro-SD card slot with card installed. a) elements view b) bottom view Figure 1 – ACM-IP2 external appearance and overall dimensions armtel.com page 3/16 info@armtel.com...
- Page 6 The operating mode for ADSL-IP2 Adapter (ADSL or Wi-Fi) is set by software during configuration of ACM-IP2. Communication with the ADSL-IP2 Adapter is executed by IP-address, while the input signal via USB-interface is transmitted to ACM-IP2, thus providing communication with the terminal analog units.
- Page 7 5dBi, which enables to place the access point at a distance of up to 100 meters from the adapter or more - depending on the characteristics of the antenna on the access point. 1.3 Main specifications and operational characteristics of ACM-IP2 are given in the Table 1. Table 1 – Main specifications and operational characteristics...
- Page 8 ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport Table 1 – Main specifications and operational characteristics (continuation) Parameter Value Parameters of analogue lines Number of analogue lines, pcs. Rated input signal, mV (dB) 775 (0) Rated output signal, mV (dB) Signal/noise ratio, min, dB...
- Page 9 - 5 to + 55 Indoor use. АСМ-IP2 is installed in communication cabinets, racks located in offices and control rooms 1.4 ACM-IP2 has two versions. Versions of АСМ-IP2 are shown in Table 2. Table 2 - Version identifications of АСМ-IP2 Identification ADSL-IP2 Adapter RMLT.465275.006...
-
Page 10: Scope Of Supply
ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport 2 SCOPE OF SUPPLY The Scope of supply for ACM-IP2 is provided in Table 3. Table 3 – Scope of supply Quanti- Identification Name Note ty, pcs. RMLT.465275.006* ACM-IP2 Analogue subsystems module Product components RMLT.468158.001... -
Page 11: Operation Lifetme And Manufacturer (Supplier) Warranties
3.1.2 The warranty period shall be extended by the length of the period during which the product is at Armtel LLC for diagnosis, repair, replacement of the entire product or components thereof. 3.1.3 The warranty is effective for the product (component parts) handed over by Armtel LLC in exchange for the one received for service, unless otherwise provided for by the contract. - Page 12 3.2.6 Trips made by Armtel LLC engineers to the Customer’s place where the product is located or is to be transported are not included in the warranty obligations of Armtel LLC and shall be paid for by the Customer independently, unless otherwise stated in the contract.
-
Page 13: Packing Certificate
PACKING CERTIFICATE ACM-IP2 Analogue subsystems module RMLT.465275.006-______ ______________________ version serial number ADSL-IP2 Adapter RMLT.468158.001 ______________________ serial number is packed by Armtel LLC according to the requirements of acting technical documentation Аssembly fitter position personal signature printed date, month, year 5 ACCEPTANCE CERTIFICATE ACCEPTANCE CERTIFICATE ACM-IP2 Analogue subsystems module RMLT.465275.006-______ ______________________... -
Page 14: Notes For Product Operation And Storage
Air in the product storage premises must be free of corrosive foreign matter (acid fumes, alkalis). 6.3 ACM-IP2 transportation is allowed as part of a cabinet (rack), in which equipment designed for installation in a cabinet is installed. ACM-IP2 and ADSL-IP2 Adapter (if any) must be snapped onto a DIN-rail. -
Page 15: Waste Recovery
ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport 7 WASTE RECOVERY The product is not subjected to utilization combined with domestic waste and must be delivered to a special center for utilization of electronic products. The operating organization must take full responsibility for the product utilization. -
Page 16: Special Notes
ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport 8 SPECIAL NOTES page 14/16 armtel.com © Armtel info@armtel.com... -
Page 17: Appendix А (Reference) Licenses And Сertificates
ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport APPENDIX А (REFERENCE) LICENSES AND СERTIFICATES armtel.com page 15/16 info@armtel.com © Armtel... - Page 18 ACM-IP2 ANALOGUE SUBSYSTEMS MODULE Product Passport page 16/16 armtel.com © Armtel info@armtel.com...
- Page 19 © Armtel...
- Page 20 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: Russia, 192012, Saint Petersburg, Zaporozhskaya str., 12 building 1, office 1/2 TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
