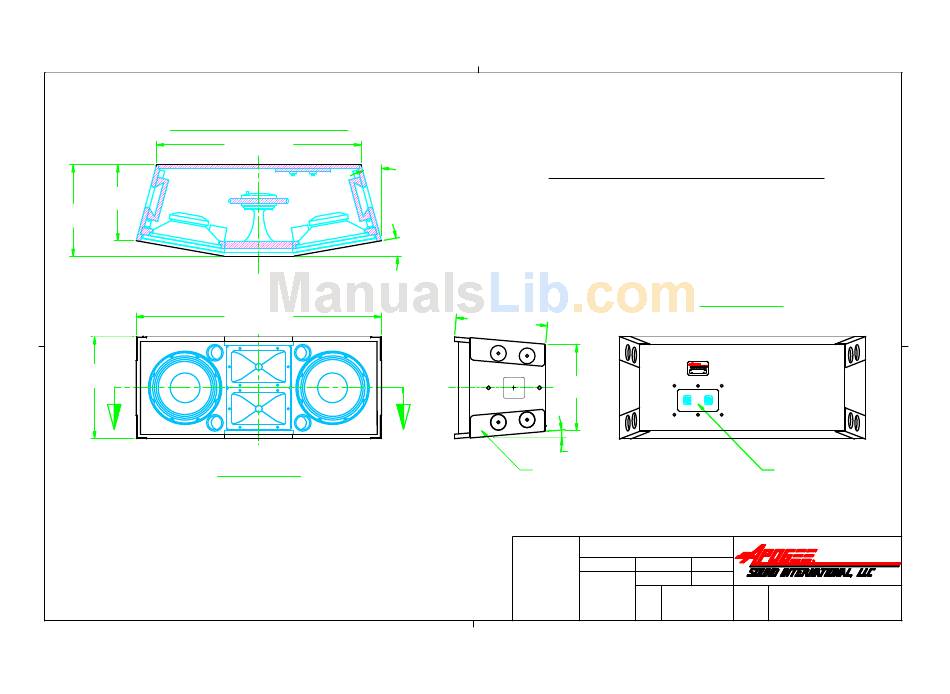

Apogee Loudspeaker ALA-3 Product Dimensions

OVERHEAD SECTION VIEW

29.216 [742.08]
10.793
[274.15]
13.000
[330.20]
35.000 [889.00]
14.500
[368.30]

FRONT VIEW

W/GRILL REMOVED
NOTE: DIMENSIONS ARE IN INCHES & [MILLIMETERS]
ALA-3 LOUDSPEAKER
15?
10?
13.050 [331.46]

TRIM

INFORMATION CONTAINED
IN THIS DOCUMENT IS
THE SOLE PROPERTY
OF APOGEE SOUND
INTERNATIONAL, LLC.
REPRODUCTION OF ALL
OR ANY PART OF THIS
DOCUMENT WITHOUT
WRITTEN CONSENT
FROM APOGEE
SOUND INTERNATIONAL,
LLC. IS PROHIBITED.
FRONT VIEW
TM
ALA-3 LOUDSPEAKER
0 0 0 0 0 0
SERIAL NO. ------
MADE IN USA
12.225
[310.50]
5?
NOT TO SCALE
SCALE DRAWN
1/4
WWE 10/4/00
REVISED
PRODUCT
NUMBER: SIZE DRAWING N0. REVISION
D
ZALA3
101-1300

CONNECTOR PANEL

TM
ALA-3 LINE ARRAY
A
LOUDSPEAKER
