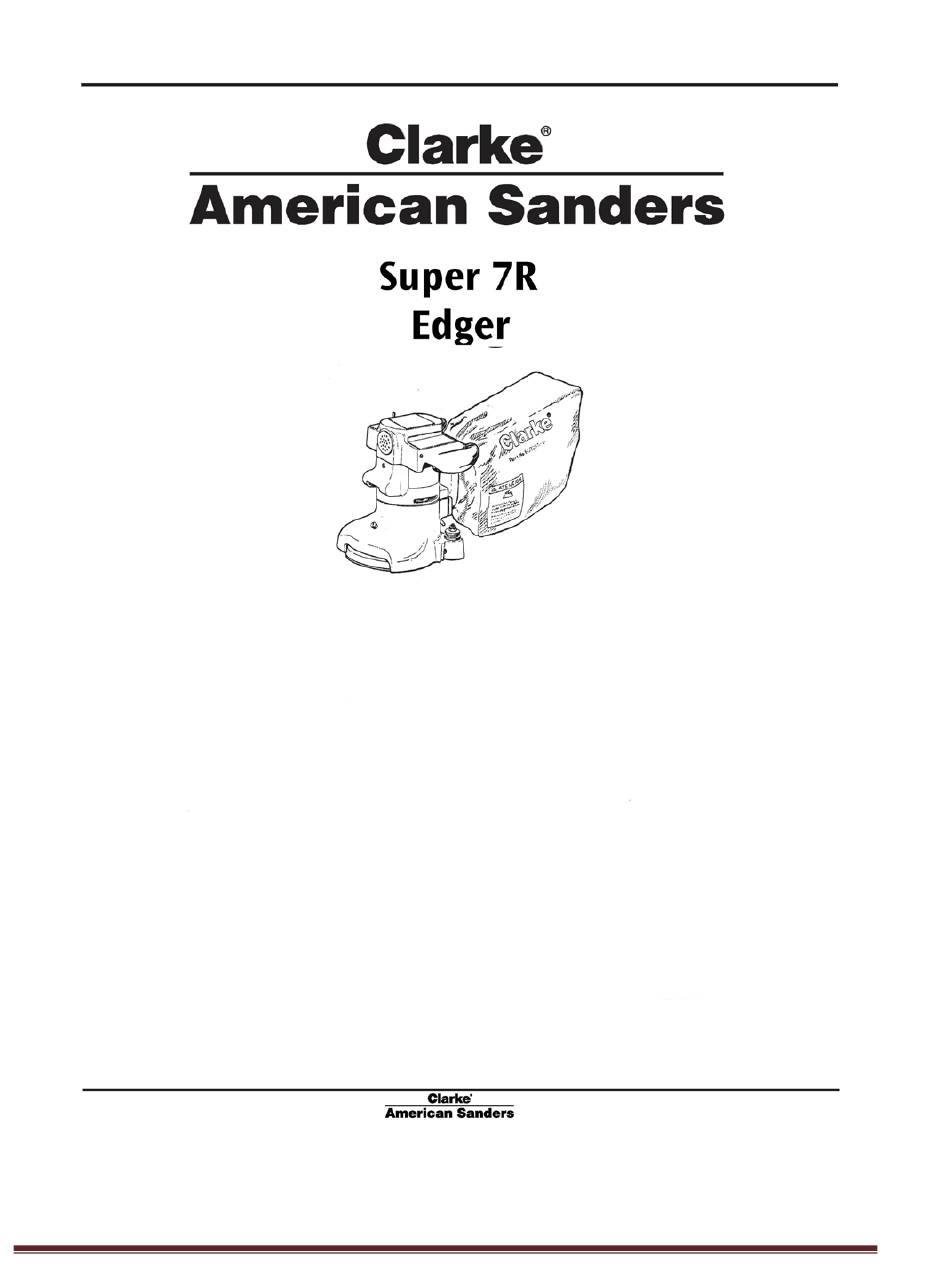

- Page 1 MODELS: 07125A, 07126A, 07013A 56043142 Page 1...
- Page 2 Switch Replacement 1-Remove the two screws (14) securing the switch cover 2-Remove tape from switch to expose wiring connections 3-Disconnect all wires 4-Remove switch retaining nut (3) Assembly Hints Connect the light wires with the incoming power wires on the switch so that the light is on when machine is plugged in Always retape the switch to prevent shorting between metal objects inside machine Pigtail Replacement 1-Remove the two screws (14) securing the switch cover...
- Page 3 Pad Removal and Replacement 1-Remove paper retaining bolt (84) 2-Wedge dust fan (24) with screwdriver or similar object (Fig. 18) 3-Use spanner wrench (Fig. 19) or large screwdriver and hammer (Fig. 20) to remove pad Note: if pad turns freely for a couple of turns and then becomes difficult the pinion gear has loosened instead of the pad and the gear assembly will have to be removed.
- Page 4 Symptom Cause Repair Sander will not No power at outlet Check and repair power supply or move to turn on another outlet Defective cord or plug Check continuity and replace defective part Defective switch Replace switch Broken wire or bad connection Repair or replace brush holder assembly on brush holder assembly Extremely worn motor brushes...
- Page 6 14600 21st Avenue North Plymouth, MN 55447-3408 www.clarkeus.com Phone: 800-253-0367 Fax: 800-825-2753 ©2010 Nilfi sk-Advance, Inc. A Nilfi sk-Advance Brand...
