Yudian AI-710JM Installation And Operation Manual

AI-3502M/3504M/3506M
人工智能温度控制器/工业调节器
1. INSTALLATION
Dimensions and cut-out; panel mounting Dimensions and cut-out; panel mounting
48
48
45
45
75
Panel Mounting:
Remove the square anchor from the instrument.
Insert the instrument from panel front.
To fasten the instrument, put the anchor back
before wiring. The screws may be used for
further tightening.

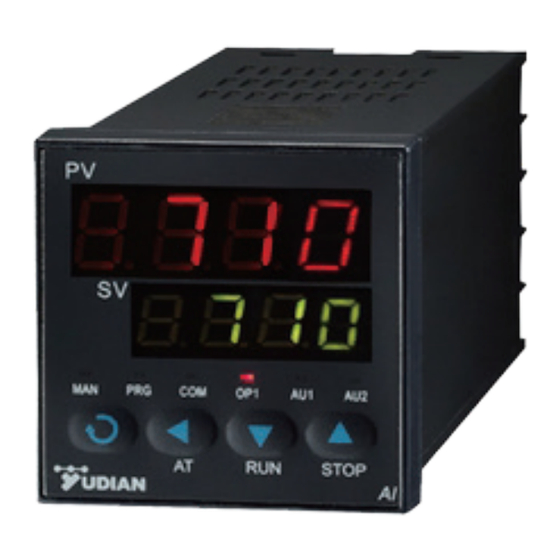

AI-710JM
Artificial Intelligent Temperautre Controller / Industrial Regulator
产品说明书
10
95
75
INSTALLATION AND
OPERATION MANUAL
Software Version 8.2
Revise Date: May 2020
2. TECHNICAL SPECIFICATIONS
Display 2*4 digit LED, Red and Green
eEC
Keys 4 mechanical keys
Accuracy 0.1% full scale (FS)±1 digit
Input Pt100
(adustable digital Sampling time 80ms
filter)
Measurement -100...+300°C
Range
Cold Junction 0.05°C for each 1°C variation
Error
Safety Detection of opening of probe
Temperature Shift ≤35ppm/°C
Regulating On/Off (adjustable hytersis)
Method Artificial Intelligent Regulating
with auto-tuning
Main Output SSR Voltage output 12VDC/30mA
(used to drive solid-state relay)
Action Main output (OUTP) with direct
(heating).
Configuration 4 type of alarm, high limit, low lim-
alarm it, deviation high limit and devia-
tion low limit compared to setpoint.
Maximum 2 loops. Temporarily
disable during first power on.
Power Supply 100~240VAC, -15%, +10% /
50~60Hz; 120~240VDC; or
24VDC/AC, -15%, +10%.
Power ≤0.5W (no output or alarm);
Consumption ≤4W (Maximum)
Opearating and Temperature -10~60°C
Storage Humidity ≤90%RH
Environment
