Yudian AI-508 Operation Instruction

AI-508 ARTIFICIAL INTELLIGENCE TEMPERATURE CONTROLLER
GENERAL
AI-508, an economical and easy operated model of Yudian artificial intelligent industry controller, is specially designed for use in the industries of plastic
machinery, food machinery, packaging machinery, baking machinery and environmental testing equipment. It features:
● Application of artificial intelligence control algorithm with auto tuning function, avoiding the overshoot problem of standard PID algorithm and
achieving precise control.
Multiple thermocouples and RTDs are selectable. Integrated non-linear graduation tables, digital calibration and auto zero technology, and
●
achieving accurate and stable measurement.
Advanced modular structure, conveniently providing various outputs options, and making quick delivery and easy maintenance.
●
universal 100～240VAC power supply.
●
● ISO9001, ISO14001 and CE certified, achieving world class level of quality, anti-interference ability and safety.
MODEL CODE SYMBOL
The type of AI-508T is made up of 5 parts, for example:
AI-508
①
① shows the basal function of instrument
AI-508 economical artificial intelligence temperature controller

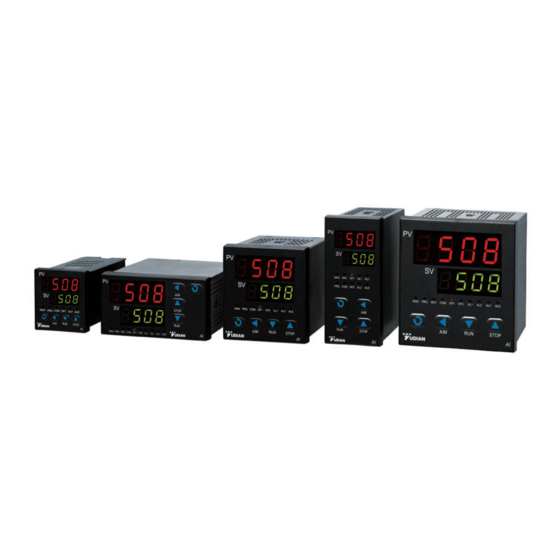

shows the front panel dimension :
②
A Front panel 96×96mm(width×height), cut out 92×92mm, depth behind mounting surface 100mm
D Front panel 72×72mm(width×height), cut out 68×68mm, depth behind mounting surface 95mm
D2 Front panel 48×48mm(width×height), cut out 45×45mm, depth behind mounting surface 95mm
E Front panel 48×96mm(width×height), cut out 45×92mm, depth behind mounting surface 100mm
F Front panel 96×48mm(width×height), cut out 92×45mm, depth behind mounting surface 100mm
shows the module types of main output. Selectable modules are as follows:
③
L1 Relay output module (Capacity: 2A/250VAC, normally open terminal can absorb electrical spark)
L4 Relay output module (Capacity: 2A/250VAC, small volume, normally open terminal can absorb electrical spark)
G SSR voltage output module (30mA/12VDC)
W1 TRIAC no contact normally open discrete output module, suitable for AC contactors up to 80A, and has low interference and long life.
K1 Single phase thyristor zero crossing trigger output module. (can trigger three-phase of TRIAC, a pair of inversely parallel connected SCRs or
TRIAC power module of current 5-500A)
K3 Three phases Thyristor zero crossing trigger output module. (can trigger three-phase of TRIAC, a pair of inversely parallel connected SCRs
or TRIAC power module of current 5-500A)
④ shows the module type of alarm output. Selectable modules are as follows:
N (or none) no module installed
L1 Relay contact output module (Capacity: 2A/250VAC, normal open terminal can absorb spark, support AL1 alarm output)
L2 Relay contact output module (Capacity: 1A/250VAC, small volume, support AL1 alarm output)
L5 Output module of dual normal open relay output (Capacity: 2A/250VAC, support AL1 and AL2 alarm output)
⑤ shows the module type of Auxiliary output (AUX). Selectable modules are as follows:
N (or none) no module installed
L1 Relay contact output module (Capacity: 2A/250VAC, normal open terminal can absorb spark, support AU1 alarm output)
L2 Relay contact output module (Capacity: 1A/250VAC, small volume, support AU1 alarm output)
L5 Output module of dual normal open relay outputs(Capacity: 2A/250VAC, support AU1 and AU2 alarm output)
Note1: For instrument of dimension D2, because of its limited volume, when L1 or L5 module is installed in the ALM socket, L1 can't be installed in the
OUPT socket, but L4, which is smaller, can be installed instead.
Note2: K3 can't be installed in instruments with dimension D or D2. There is no ALM socket in D2 instruments. L5 module can't be installed in the
ALM socket of instrument with dimension D.
Operation Instruction Version 7.0
A G L2 L2
② ③ ④ ⑤
