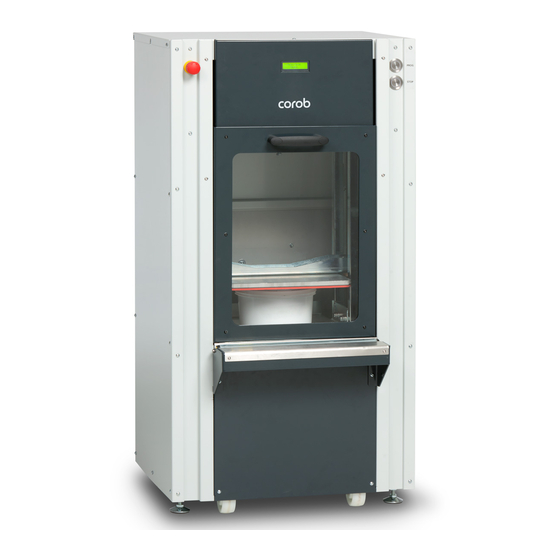

corob EVOSHAKE 500 V2 User Manual

corob EVOSHAKE 500 V2 User Manual

Vibrational shaker

Advertisement

EVOSHAKE 500 V2
Vibrational Shaker
User manual
V1.0 - RC (10/2019)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOSHAKE 500 V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for corob EVOSHAKE 500 V2

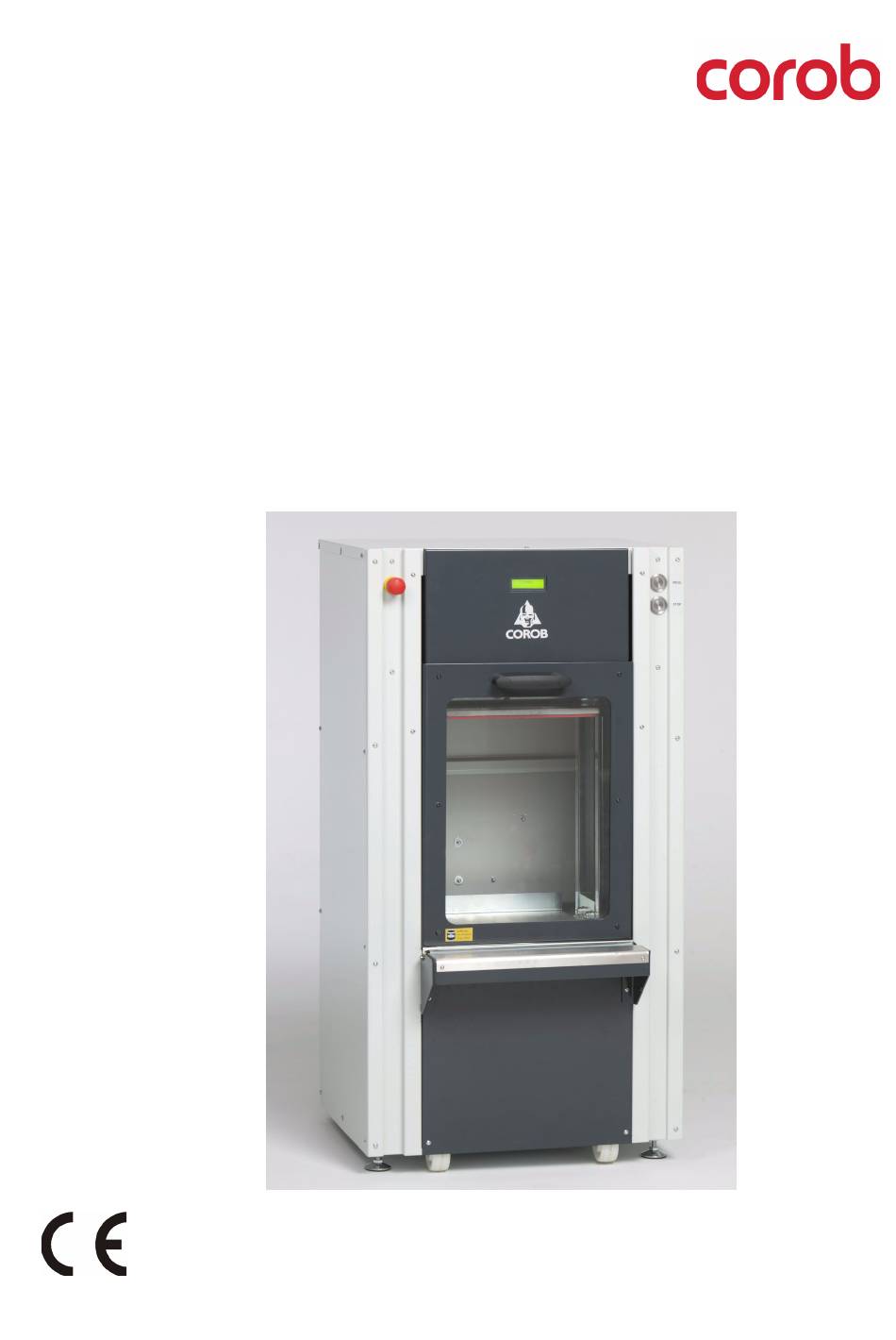

  • Page 1 EVOSHAKE 500 V2 Vibrational Shaker User manual V1.0 - RC (10/2019)
  • Page 2 COROB™ is a registered trademark and/or commercial trademark used on an exclusive basis by COROB Oy and its affil- iated companies (hereinafter “COROB”). A failure of a trademark to appear hereunder does not mean that COROB does not use the trademark in question nor does it constitute a waiver by COROB of any related intellectual property rights.
  • Page 3: Table Of Contents

    1 GENERAL INFORMATION ..............................2 1.1 Purpose and use of this manual................................2 1.2 Definitions ........................................2 2 FEATURES..................................3 2.1 Description of the machine ..................................3 2.2 EVOshake 500 v2’s parts ..................................3 2.3 Usable cans ......................................4 2.4 Identifying information..................................4 3 SAFETY INSTRUCTIONS ..............................5 3.1 Connecting and disconnecting the machine to the mains .....................5 3.2 Emergency stop .......................................5...
  • Page 4: General Information

    MAINTENANCE TECHNICIAN / INSTALLATION TECHNICIAN Specialist prepared and trained in a technical field (mechanical and electrical) and assigned by the manufacturer to work on the machine to perform machine installation, adjustments, repair breakdowns or carry out maintenance. EVOSHAKE 500 v2 - 2 -...
  • Page 5: Features

    FEATURES Description of the machine The EVOshake 500 v2 is an advanced and flexible vibrational shaker. It has optimal mixing time and speed. The EVOshake 500 v2 is easy to use and it is meant for paint shops. EVOshake 500 v2 has automatic clamping system which allows mixing of non-explosive paints contained into metal or plastic containers.
  • Page 6: Usable Cans

    Year of manufacture • Serial number (S/N) • Electrical specifications Do not remove or tamper with the identification plate in any way. Figure 2-2: The machine serial number, S/N, is in the type shield. EVOSHAKE 500 v2 - 4 -...
  • Page 7: Safety Instructions

    The shaker may only be serviced by a qualified service representative. The EVOshake 500 v2 shaker has been designed to be functional, safe and easy to use. Excellent design has removed several dangers posed by the machine. However, in order for the machine to function properly, it still has points that could cause a dangerous situation.
  • Page 8: Danger Caused By The Shaking Mechanism

    The movement of the clamping mechanism may cause personal injury. The EVOshake 500 v2 shaker is based on the principle of shaking action. The shaker is equipped with a clamping mechanism to fasten the can during shaking. Clamping and shaking can create a danger of crushing, cutting and entangling.
  • Page 9: Explosion Safety

    Explosion safety The EVOshake 500 v2 is not designed to be used in spaces where there is a danger of explosion. An explosive space is a room in which burning gas, vapours or mist from burning liquid or burning dust are mixed with air or explosives, causing a danger of explosion.
  • Page 10: Position Of Labels

    7. Label “Serial Number” Do not remove or make illegible the safety or instruction labels. Replace any label has become illegible or is missing, by requesting it to the manufacturer. UYYS0XXX Figure 3-5: Position of the labels. EVOSHAKE 500 v2 - 8 -...
  • Page 11: Transportation, Storage And Disposal

    Handling The EVOshake 500 v2 and its equipment have been placed on pallet for transportation, which can be handled with a forklift and a pump-operated cart. The package must be handled and stored upright WARNING Damaging, tilting or mishandling the packed machine may lead to malfunction when the machine is first used.
  • Page 12: Machine Installation

    Only a service representative authorised by the supplier may install the machine. Installation site requirements The structural design of the EVOshake 500 v2 is geared towards it being functional and user-friendly. To ensure ease of use, take into account the following details when installing the machine: 1.
  • Page 13 17mm 7. The EVOshake 500 v2 has two supporting feet in front of the machine and one in the back. Lift the front ones higher to ease the removal of the shaker. See figure 5-8 how to adjust the supporting foot.
  • Page 14 Figure 5-10: Get hold of the front of the machine. and one on the back. Figure 5-11: Steadily slide the machine Figure 5-13: Slide the EVOshake 500 v2 Figure 5-12: Tilt the shaker little to ease along the ramp. slowly to the ground.
  • Page 15: Electrical Connection And Start Up

    Preferred height is the standard opening height to which the upper plate opens after shaking the can. DANGER Neglecting safety instructions may result in an accident. Familiarise yourself with the safety instructions and instructions for use before using the machine. EVOSHAKE 500 v2 - 13 -...
  • Page 16: Instructions For Use

    Figure 6-19: Control devices are in the the machine. front of the EVOshake 500 v2. The EVOshake 500 v2 has control devices in front of the machine: • the emergency button on the top left corner, see fig. 2-1 on page 3 •...
  • Page 17: The Display

    Only qualified service personnel are allowed to service and repair the EVOshake 500 v2. The display The display shows the status of the EVOshake 500 v2, giving information about the process being done. When you start up the machine, switch the power on, the display lights up and shows what progam is selected.
  • Page 18: Loading Of Cans

    5. Close the door and the shaking cycle starts. 6. When shaking is finished, the upper plate rises, and the door opens. 7. Remove the can. During the whole shaking cycle, the PROG button green lamp is on. EVOSHAKE 500 v2 - 16 -...
  • Page 19: Changing The Language And The Preferred Height

    To declamp the upper plate to max open position, press the STOP button and simultaneously close the door => display says CLAMPING. 6.10 Troubleshooting The power to the EVOshake 500 v2 must be switched off and the machine disconnected from the mains for servicing and repairs. Th e door is locked and d o es not open normally First try following steps to open the door: 1.
  • Page 20: Ordinary Maintenance

    External cleaning Keep the EVOshake 500 v2 clean. In case of paint spills, clean the machine immediately. 1. Press the emergency button down. 2. Clean coverings, panels, plates and control devices of the machine, to remove dirt, dust and any colorant stains, using a soft and dry cloth, or slightly moistened with a mild cleansing solution.
  • Page 21: Technical Specifications

    850 mm 776 mm with front loading area Width 600 mm 800 mm Height 1160 mm 1330 mm Footprint 0.40 m 0.68 m 0.46 m wih front loading area Weight 214 kg 246 kg EVOSHAKE 500 v2 - 19 -...
  • Page 22: Declaration Of Conformity

    Failure to observe the instructions and maintenance rules set forth in the manual. • Making or having changes and/or repairs made on the machine by personnel outside the service organization authorized by the manufacturer and/or made using non‐original spare parts. EVOSHAKE 500 v2 - 20 -...
  • Page 23 You will need the following information from the type shield (See “2.4 Identifying information” on page 4) when you call for service: • type ( MODEL • serial number ( EVOSHAKE 500 v2 - 21 -...
  • Page 24: Appendix: Ec Declaration

    APPENDIX: EC DECLARATION EVOSHAKE 500 v2 - 22 -...
  • Page 25 EVOSHAKE 500 v2 - 23 -...
  • Page 26 EVOSHAKE 500 v2 - 24 -...
