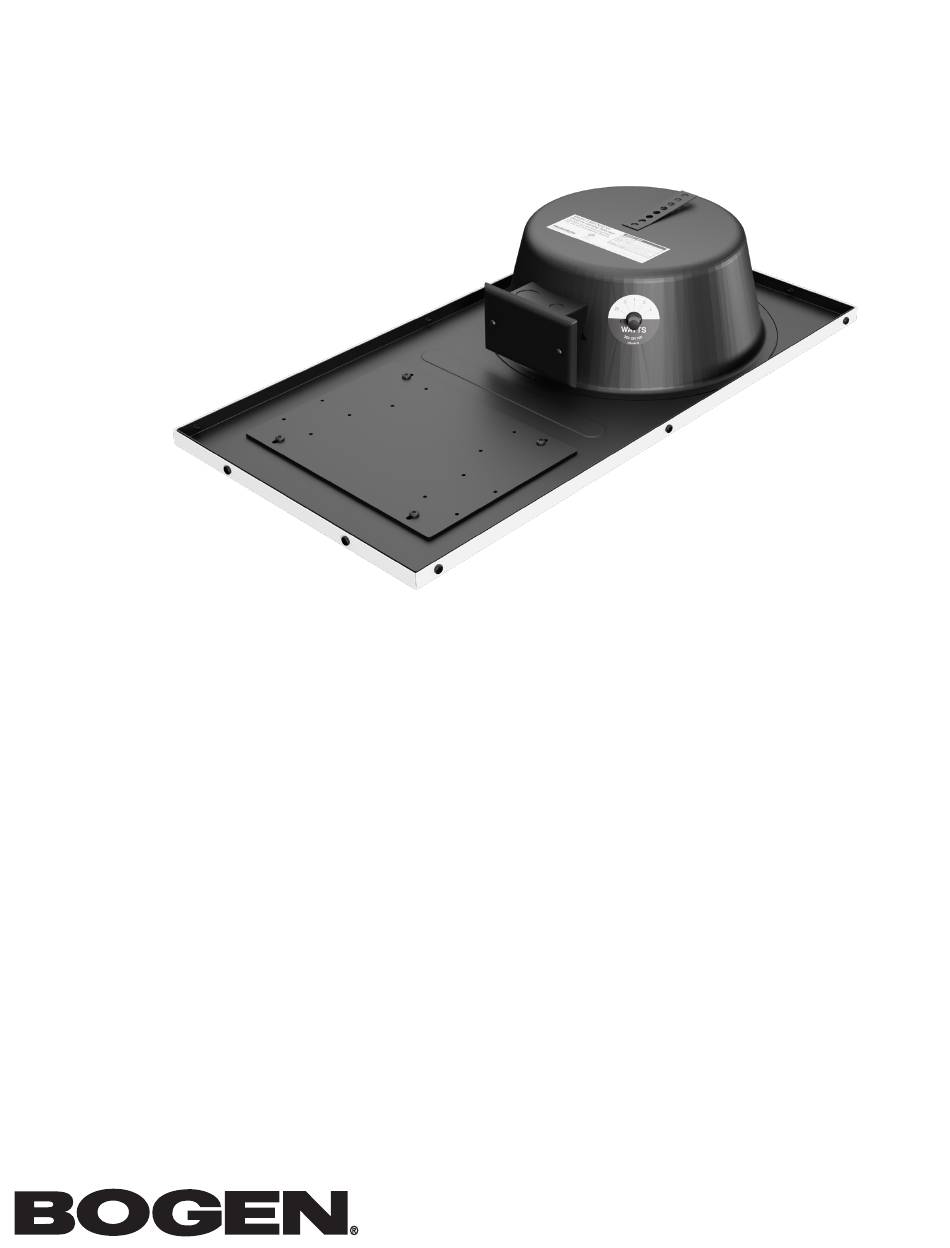

- Page 1 CSD1X2U-V2 70V, 25V, and 8Ω Speaker System Installation and Use Guide Specifications are subject to change. © Copyright 2023, Bogen Communications LLC 740-00201A 230630...
-
Page 2: Mounting Plate

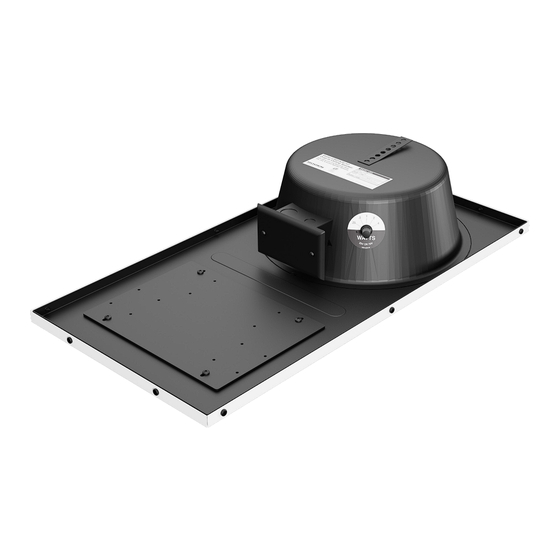

The CSD1X2U-V2 ceiling has an 8″ driver and a tap selector that allows it to be run as a ¼W to 4W speaker at 25V or Ω 70V. It also includes a wire that bypasses the transformer and allows the speaker to operate at 8 . -
Page 3: Wiring Instructions
Run, at minimum, a Cat 5 cable from the appropriate-sized PoE switch to the VoIP module. Wire the output of the Ω Ω VoIP module to the CSD speaker in the 8 configuration (see Figure 4). This has a 10W maximum at 8 operation. To CSD1X2U-V2 Speaker wired at 8Ω NQ-GA10P VoIP Intercom Module RELAY AUDIO 5V CH CL NC COM NO G ®... - Page 4 NQ-GA40P3 shown, can also be NQ-GA10PV, NQ-GA20P2, etc. from NQ-GAXMR1 to a CSD1X2U-V2 speaker and additional speakers if needed. 70V is also an option, but both outputs cannot be used simultaneously. If additional speakers are needed, proper care should be taken when wiring so the amplifier does not become overloaded.
-
Page 5: Ceiling Mounting Instructions
– – – CSD1X2U-V2 can be daisy-chained to additional NQ-GAXMR1 speakers tapped at 25V tapped at 25V Audio Transformer OUTPUT COM 25V 70V NQ-GA20P2 PoE+ Amplifier Module LINE OUT INPUT COM + ® Figure 8: NQ-GA20P2 PoE+ Amplifier Module connected to NQ-GAXMR1 Audio Transformer and speaker. -
Page 6: Two Year Warranty
Two-Year Warranty The CSD1X2U-V2 is warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.
