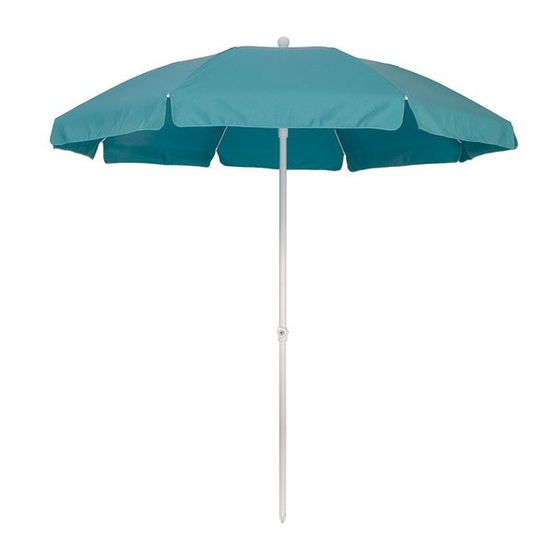

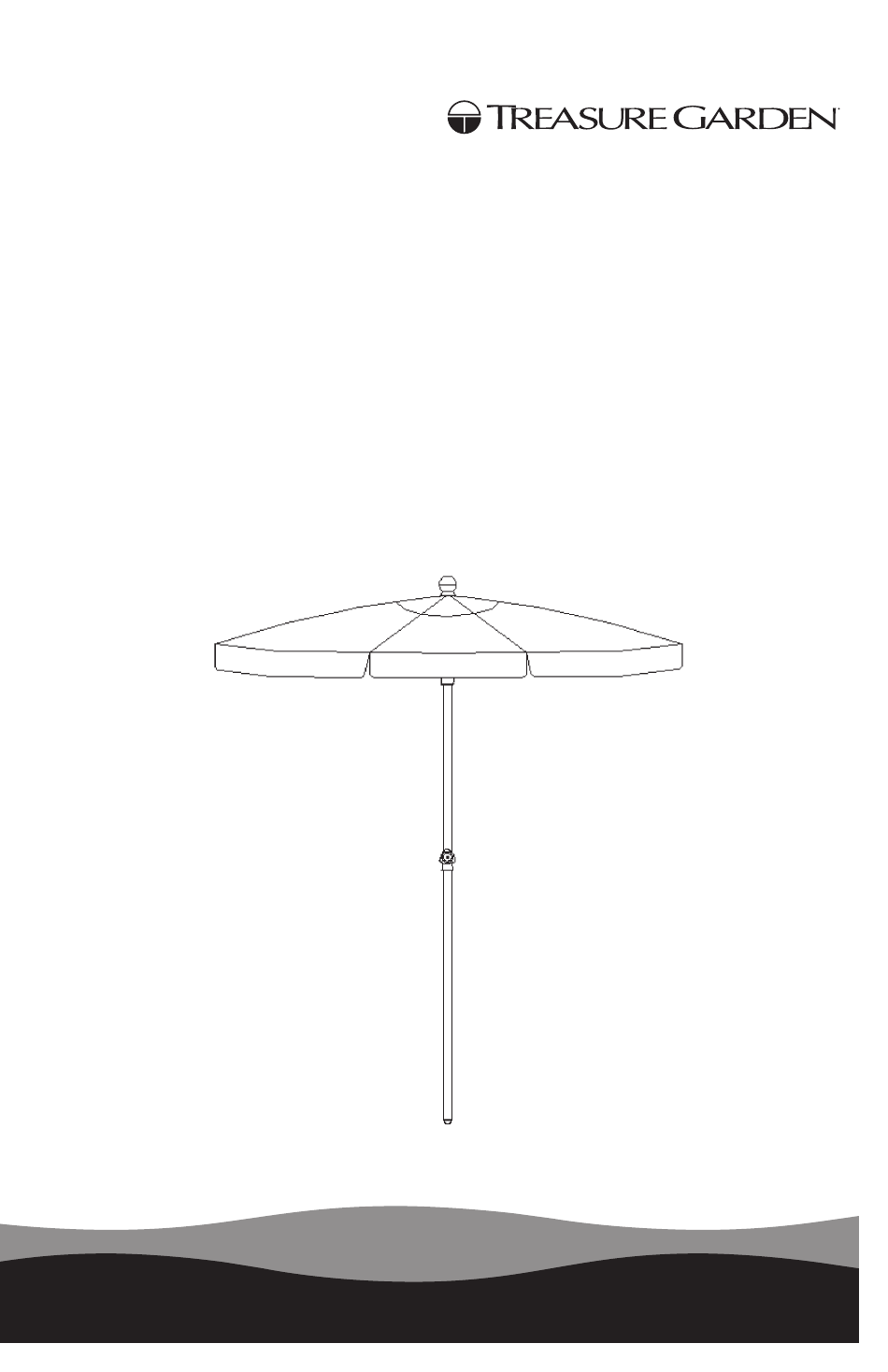

- Page 1 UB753HT 7.5’ Beach Umbrella Assembly and Operation Guide...
- Page 2 Thank you for your purchase of Treasure Garden’s Beach Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your beach umbrella, read and follow this Assembly and Operation information.
- Page 3 S T E P 1 Assembly Remove bottom pole and top pole with canopy from carry bag. Insert the top pole with canopy into the bottom pole (Fig. 1). Turn the knob clockwise to tighten poles together (Fig. 2). (Fig. 1) (Fig.
- Page 4 S T E P 2 Opening Beach Umbrella Untie the strap on the canopy and open the umbrella by pushing the runner upward until the runner (Fig. 3) reaches the top and locks into place. Your umbrella is now open and ready for use (Fig. 4). (Fig.
- Page 5 S T E P 3 Tilting Beach Umbrella Lift the lock tube with one hand (Fig. 5) and gently grab a rib of the umbrella with the other hand and pull down (Fig. 6). The umbrella will tilt in the direction you pulled down. To bring back to upright position, put one hand on the lock tube and grab the end of the umbrella with the other hand and push up back to upright position.
- Page 6 S T E P 4 Closing Beach Umbrella With the umbrella in a level position, push the button on the runner to unlock the runner from the pole. Hold runner and slide down pole slowly until the canopy is closed (Fig. 7). Note: May need to lift before closing.
-
Page 7: Warranty
WARRANTY: In the event that warranted factory service is required, Treasure Garden will Treasure Garden warrants this product assume the responsibility of the return (in residential use) to be free from freight charges on warranted product for defects in original materials and the first year only. - Page 8 ® www.treasuregarden.com ©2011 Treasure Garden, Inc. - All Rights Reserved. Initial 9/11...
