Summary of Contents for Treasure Garden UM801

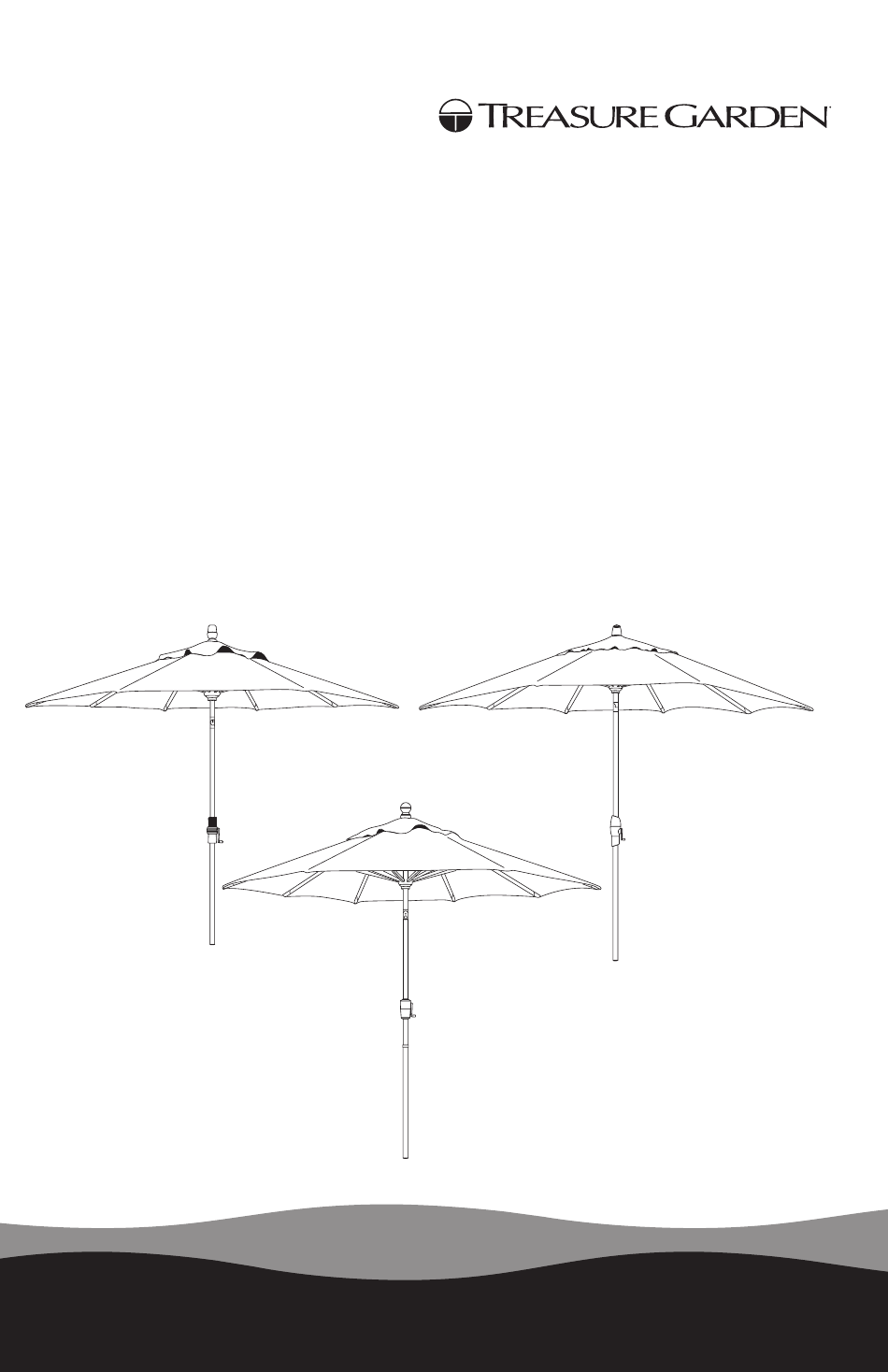

- Page 1 UM801/UM800/UM812/ UM810/UM920 Collar/Auto/Push Button Tilt Rib Replacement Assembly and Operation Guide...
- Page 2 • Phillips head screwdriver NOTE: Read these instructions completely before attempting replacement. These instructions are specifically for Treasure Garden’s collar tilt, auto tilt or push button series umbrellas. S T E P 1 Identify Broken Rib Crank open the umbrella and identify the broken rib (Fig. 1). Set the umbrella down sideways on a soft, flat surface.
- Page 3 For Push Button Tilt Models: S T E P 2 . 2 Remove Rib From Runner Using a philips screwdriver, remove screws from runner (Fig. 4) and set screw aside. Place the umbrella upside down (Fig. 5), being careful not to dislodge the ribs from the runner. Carefully pull up the bottom half of the runner from the top half (Fig.
- Page 4 Turn crank to lower canopy. Replace canopy back onto umbrella and reattach finial by turning clockwise (Fig. 15). Place umbrella upright in base. Your umbrella is now ready for use. (Fig. 15) www.treasuregarden.com ©2014 Treasure Garden, Inc. - All Rights Reserved. 10/14...
