Viking VGRC Specification Sheet

Standard Features & Accessories
All models include
• Both ovens
o Overall capacity—4.2 cu. ft.
(24-1/8"W. x 14-1/8"H. x 21-1/4"D.)
o AHAM Standard capacity—3.8 cu. ft.
(24-1/8"W. x 14-1/8"H. x 19-1/4"D.)
o Three heavy-duty racks/five rack
positions
o Two lights
• Right oven only—convection
bake/broil
o Exclusive combination of dual bake
burners and infrared broil burner, all
with automatic ignition
o Six functions—natural airflow bake,
convection bake, infrared broil,

Model Options

Double Griddle Range
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower
front panel, and side panels.
o Has black porcelain grates, black
porcelain burner caps, black porcelain
grate supports/burner bowls, and
black knobs/switches.
*Shown throughout with 6"H. backguard. See Installation Notes & Accessories for details.
ORDERING INSTRUCTIONS
First specify model number, and then color code (VGRC605-6GDSS). If ordering optional brass trim, specify code at end (VGRC605-6GDSSBR).
If ordering optional LP conversion, specify code at end (VGRC605-6GDSSBRLP).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M

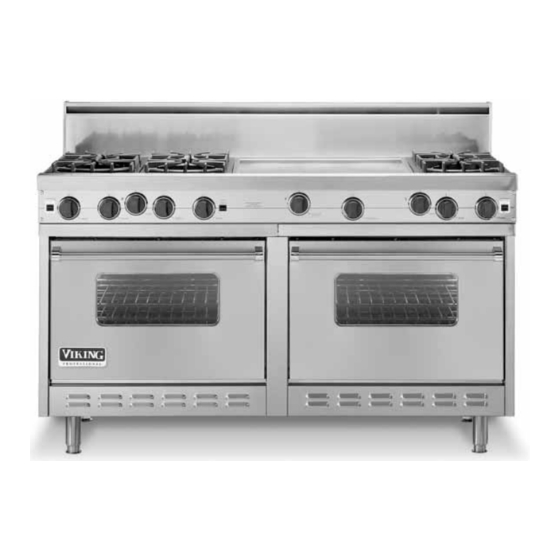

Professional Freestanding Gas 60"W.
Commercial Depth Open Burner Range
convection infrared broil,
convection dehydrate, and
convection defrost
• Left oven only
o Dual bake burners with automatic
ignition
o Four functions—natural airflow
bake, convection bake, convection
dehydrate, and convection defrost
• Exclusive VariSimmer™ setting for all
burners
• Removable porcelain burner bowls
• Drip trays with roller bearing glides
and two-quart drip pan
• Standard kickspace height
VGRC605-6GD*
Six-Burner/
• White (WH)
o Finish designates door front, lower
front panel, side panels, porcelain
grate supports/burner bowls,
porcelain center worktop, and
knobs/switches.
o Has black porcelain grates and black
porcelain burner caps.
o All finishes have black porcelain
grates, black porcelain burner caps,
and black knobs/switches.
• All finishes have stainless steel
handles/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.
• 1 - 8 8 8 - V I K I N G 1
COOKING
6GD models include
• Six 15,000 BTU stainless steel burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
• 24"W. thermostatically controlled steel
griddle/simmer plate (separate
burners/controls for left and right side)
6GQD models include
• Six 15,000 BTU stainless steel burners
with porcelain/cast iron caps and automatic
ignition/re-ignition
• 12"W. thermostatically controlled steel
griddle/simmer plate
• 12"W. grill with flavor generator plates
and automatic ignition/re-ignition
VGRC605-6GQD*
Six-Burner/
Griddle/Grill Range
• Brass Trim Option (BR)—nameplate,
window trim, handle, drip tray pull,
knob bezels, thermal-convection switch
bezel, and grate support side trim.
Brass components have a durable
protective coating for maintenance-
free normal use.
© 2 0 0 7 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
R E L E A S E D 1 2 / 1 / 0 7
