To access the system settings on the ViewSonic IFP50-3 Series model VS17117, follow these steps:

1. Open the Settings menu on the device.
2. Navigate to the System section.
3. In the System settings, you can access options such as:
- Clone to USB
- Display ID

These settings allow you to manage system-related configurations on the device.

This answer is automatically generated

Jim

January 24, 2025

Can you hook a tv app to this

1 comments:

Mr. Anderson

February 10, 2025

The ViewSonic IFP50-3 Series has a redesigned user interface that allows apps to be stored in a tray on the home screen. Users can access and organize their apps, suggesting that TV apps could be installed and used if they are compatible with the system. However, specific details on TV app compatibility are not provided.

This answer is automatically generated

Summary of Contents for ViewSonic IFP50-3 Series

Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
Page 3: Safety Precautions
Do not place any heavy objects on the device or connection cables. • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device. •...
Page 4 • Only use attachments/accessories specified by the manufacturer. • When a cart is used, use with caution when moving the cart/equipment combination to avoid injury from tipping over. • Disconnect the power plug from the AC outlet if the device is not being used for a long period of time.
Page 5: Table Of Contents
Contents Safety Precautions ............3 Introduction ..............9 Package Contents ....................9 Wall Mount Kit Specifications (VESA) ..............10 Product Overview ....................11 Front Panel | Control Panel | Rear Panel .............. 11 I/O Panel ........................ 13 Remote Control ..................... 15 Using Gestures ...................... 19 Select and Deselect an Object (Clicking) ............
Page 6 Using Your ViewBoard ..........27 Powering On/Off your ViewBoard ................27 Initial Launch Setup ....................28 vLauncher - Customizable Welcome Screen............30 vLauncher Message ....................30 Applications ......................31 Toolbar .........................33 On-Screen Display (OSD) Menu ................39 General Settings ....................40 Input Settings ......................41 Widget ........................
Page 7 Input Source ......................69 Rename Input Source ..................70 Source........................ 71 App ........................72 APP ........................73 System ........................75 Clone to USB ...................... 76 Display ID ......................77 Security ......................78 System Update ....................81 About Device ..................... 82 Embedded Applications and Settings ......
Page 8 RS-232 Protocol ............104 Description ......................104 RS-232 Hardware Specification ................104 LAN Hardware Specification ................105 RS232 Communication Setting ................105 LAN Communication Setting ................105 Command Message Reference ................105 Protocol ......................106 Set-Function Listing ..................... 106 Get-Function Listing .................... 112 Remote Control Pass-through Mode ..............
Page 9: Introduction
Package Contents • HDMI cable (3m) • Touch Pen x 2 • Power cable • Quick Start Guide • Remote control • RS-232 adapter • AAA battery x 2 • Clamp x 5 • USB cable (3m) • Screw x 8 •...
Page 10: Wall Mount Kit Specifications (Vesa)
building materials, please contact your nearest dealer. Model IFP5550-3/A/B - 55” 400 x 200 mm M8 x 25 mm IFP6550-3/A/B - 65” 600 x 400 mm M8 x 25 mm IFP7550-3/A/B - 75” 800 x 400 mm M8 x 25 mm IFP8650-3/A/B - 86”...
Page 11: Product Overview
Product Overview Front Panel | Control Panel | Rear Panel...
Page 12 Number Item Power indicator light Remote control receiver • • Tap to enter Energy Saving mode • Press and hold for at least two (2) seconds to enter Standby mode Go to the Home screen Return to the previous screen •...
Page 13: I/O Panel
I/O Panel Lower Right Side Lower Front Right • TOUCH, HDMI, and VGA are grouped by color; i.e. TOUCH 1 should be used with HDMI 1/2. • Under Android, USB...
Page 14 Number Port HDMI OUT Supports 1080p and 4K@60Hz. Connect USB devices such as hard disks, keyboard, USB 3.0 Android. • Touch signal output to external PC. • Network signal output to external PC when the Embedded Player has LAN port input. •...
Page 15: Remote Control
Remote Control SLEEP DISPLAY P.MODE FREEZE ALT+TAB ALT+F4 -/-- INPUT ASPECT MENU DESKTOP D.MENU D.TITLE START ENTER D.USB D.SETUP ESC/EXIT BACK CH.+ VOL+ PGUP SPACE CH.- VOL - PGDN...
Page 16 Number Item Mute/Unmute SLEEP Sleep Mode DISPLAY For Non-Android sources; display current input source P.MODE Blank Screen FREEZE Freeze Screen ALT+TAB Slot-in computer space bar Alt+Tab -/-- ALT+F4 Slot-in computer, close program window INPUT ASPECT Back to slot-in system main interface MENU Red / ALT Screen capture...
Page 17 1. Remove the cover on the rear of the remote control. 3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut. type. • It is recommended that you do not mix battery types. •...
Page 18 Remote Control Receiver Range ° 8 meters, 30 control’s signal to the receiver. 30° 30° SLEEP DISPLAY P.MODE FREEZE ALT+TAB ALT+F4 -/-- INPUT ASPECT MENU DESKTOP D.MENU D.TITLE START ENTER D.USB D.SETUP ESC/EXIT BACK CH.+ VOL+ PGUP SPACE CH.- PGDN VOL -...
Page 19: Using Gestures
Using Gestures Touch gestures allow the user to use pre-determined commands without using a keyboard or mouse. Using gestures on the ViewBoard, the user can select/deselect much more. Press and release the ViewBoard to Press and hold the ViewBoard with your mouse click.
Page 20: Moving An Object
Moving an Object Press and hold the object on the ViewBoard and slowly drag it with your Erasing Digital Ink on the ViewBoard and move your hand across the area which you wish to erase. ViewBoard to launch the General...
Page 21: Making Connections
USB Cable TOUCH VGA Cable USB Cable Computer TOUCH HDMI Cable HDMI IN To connect via HDMI: 1. Connect an HDMI cable from your external device to the HDMI IN port on the ViewBoard. 2. Connect a USB cable to the external device from the TOUCH 1 port of the ViewBoard.
Page 22: Connection
Serial Port Cable RS-232 Computer When you use a RS-232 serial port cable to connect your display to an external...
Page 23: Usb And Networking Connections
Just like any PC, it is easy to connect various USB devices and other peripherals to your ViewBoard. USB Peripherals Plug the USB device cable into the USB port. USB Cable USB Device Networking and Modem cables Plug the network cable into the LAN port. Network Cable Internet...
Page 24: Media Player Connection
HDMI IN HDMI Cable To connect to a media player: 1. Connect the HDMI cable to the HDMI ports on your ViewBoard and peripheral device. Plug in the power cord of your ViewBoard, and turn on the power supply switch. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.
Page 25: Spdif Connection
Optical Cable SPDIF Power amplifier / Stereo equipment To connect to an external sound system: SPDIF connector. Plug in the power cord of your ViewBoard, and turn on the rear-panel power supply switch. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.
Page 26: Video Output Connection
HDMI Cable HDMI OUT Projector To output video via a display device: 1. Connect an HDMI cable to the HDMI IN port of your display device, and the other end to the HDMI OUT port of your ViewBoard. Plug in the power cord of your ViewBoard, and turn on the power supply switch. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.
Page 27: Using Your Viewboard
Using Your ViewBoard 1. Ensure the power cord is connected, plugged into a power outlet, and the power The AC Power input and switch are 2. Press the Power Power 27 27...
Page 28: Initial Launch Setup
1. Select your Language: 28 28...
Page 29 3. Select your Time Zone to set the Date and Time: 4. Select your preferred System Mode: 29 29...
Page 30: Vlauncher - Customizable Welcome Screen
vLauncher - Customizable Welcome Screen vLauncher Message Both the vLauncher Title and can be customized by tapping on them. 30 30...
Page 31: Applications
Set Password. Down Arrow. 31 31...
Page 32 Up Arrow. 32 32...
Page 33: Toolbar
Toolbar Toolbar trigger icons are on the edge of the ViewBoard launcher providing access to your tools. To launch a tool: 1. Tap a Toolbar trigger icon. 2. Tap on your desired tool icon. however, users can go to: > Preference > toolbar.
Page 34 Icon Only for the Embedded Player source. Back Return to the Home Screen of the Embedded Player. Home Recent myViewBoard Record, view, and save the on-screen content. Recorder 34 34...
Page 35 Icon Highlighter Eraser Undo Redo Clean Save Exit Annotate the overlay of any input source with black, white, yellow, orange, red, pink, green, or blue ink. Highlighter Mark and highlight with yellow, grey, gold, orange, red, pink, green or blue ink. marking.
Page 36 Icon Screen Freeze Spotlight Stopwatch Timer Air Class Hide/Unhide Screen Capture Screen Freeze you can zoom in, zoom out, go back to full screen, and exit. Zoom in Zoom out Fullscreen Exit Spotlight More 36 36...
Page 37 Icon Stopwatch Tapping Start reset. Timer More Touch and swipe to adjust the numeric values, then click Start. reset. Hide/Unhide Hide or unhide the Tool bar trigger icons. 37 37...
Page 38 Icon Air Class More Screen Capture Take a screenshot of the current screen. 38 38...
Page 39: On-Screen Display (Osd) Menu
Long press anywhere in the vLauncher background. Press the INPUT ALT+TAB ALT+F4 -/-- INPUT ASPECT MENU DESKTOP D.MENU D.TITLE START 39 39...
Page 40: General Settings
To adjust the Backlight and enable/disable Flicker Free: Press INPUT on the remote control or long press the vLauncher background and touch General on-screen (if needed) to display the General Settings menu. Drag the brightness slider directly to adjust the backlight value, and/or touch On or Off to enable/disable the function.
Page 41: Input Settings
To select an Input Source: Press INPUT on the remote control, press the setting button on the front panel, or press the setting icon from the toolbar to display the Input Settings menu. Press / / / to select the input source you want. PC source will only display when the slot-in computer is connected.
Page 42: Widget
Widget Only available for the Embedded Player source. To add a widget to the vLauncher welcome screen: 1. Long press the vLancher background via touch to launch the OSD Menu. 2. Select Widget. 3. Touch and hold the desired widget. 4.
Page 43: Settings - Hdmi & Vga Input Source
Press MENU source in to launch the Audio, Screen, Display, and Adjust. 1. Press on the remote control and select the Audio menu. 2. Press / / / each value, or with the remote control by pressing ENTER 4. Touch the Mute slider directly to enable/disable mute, or press on the remote control.
Page 44: Screen Settings
1. Press on the remote control and select the Screen menu. 2. Press / / / 3. Adjust your preference by touching each value directly, or with the remote control by pressing ENTER. 4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.
Page 45: Display Settings
1. Press on the remote control and select the Display menu. 2. Press / / / 3. Adjust the Brightness, Contrast, Hue, and Sharpness directly by touching and ENTER to adjust the Drag the blue light slider directly to adjust the blue light value. 5.
Page 46: Low Blue Light Filter And Eye Health
Low Blue Light Filter and Eye Health The Blue Light Filter blocks high-energy blue light for a more comfortable viewing experience. must be: • Mode: Standard (Brightness and Contrast are 50) • Color Temperature: Filter • Blue light Filter: 0 When viewing screens for extended periods, it is recommended to take periodic frequent breaks.
Page 47 Eye and Neck Exercises Eye Exercises Exercises for the eyes (1) Keep the body and the (2) Move the eyes le and (3) Move the eyes to look head upright. Move the at objects at the right right slowly to look at eyes up to look at the upper direc on and then objects on the two sides.
Page 48: Adjust Settings - (Vga Only)
1. Press on the remote control and select the Adjust menu. 2. Press / / / 3. Adjust your preference by touching each value directly, or with the remote control by pressing ENTER. 4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.
Page 49: Settings - Embedded Player
When the ViewBoard is in the Embedded Player input source, press MENU on the menu. Bluetooth, and VPN, and establish a Wireless hotspot. • Wi-Fi, Wireless hotspot and Bluetooth settings will appear when LB-WIFI- 001(optional) has been installed. • Ethernet will disable automatically when Wi-Fi is enabled. Wi-Fi will disable automatically when Ethernet is enabled.
Page 50: Wi-Fi
Wi-Fi Setup and manage wireless access points. • On or • Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced • In Advanced On or and view Network card info. 50 50...
Page 51: Ethernet
Ethernet Set the local network and proxy. • Tap the drop down menu to connect/disconnect the Ethernet. • You can adjust Local network and Proxy • Tap Advanced to view Network card info and toggle Network auto reconnect. 51 51...
Page 52: Wireless Hotspot
Wireless Hotspot • Wireless hotspot On or • Tap Set up to set the Network name, Security, and Password. 52 52...
Page 53: Vpn
Setup and manage Virtual Private Networks. 1. Go to: > > VPN and tap Add VPN. 2. Key in the Name. 53 53...
Page 54 3. Select the VPN Type. 4. Choose to enable/disable and/or show Advanced 54 54...
Page 55: Share
Share SAMBA equipment. 1. To access, go to: > Share > SAMBA. needed. 3. Ensure the ViewBoard and client equipment are connected to the same network. 4. Log in to the ViewBoard with the client equipment. Input the ViewBoard’s IP address.
Page 56 5. Key in the user name and password, then select OK (if necessary). 56 56...
Page 57: Display
Display 57 57...
Page 58: Wallpaper
Wallpaper 58 58...
Page 59 use their own by tapping My Photo 59 59...
Page 60 Toggle Password for Screen Lock. movements of the picture in minutes. • To set up a password for screen lock, tap Set Password and enter the desired password. 60 60...
Page 61: Hdmi Out
HDMI Out 61 61...
Page 62: Preference
Preference View and adjust Touch, Language, , Boot, and Start 62 62...
Page 63: Touch
Touch Adjust and toggle Touch Sounds and Windows Ink Language Adjust and choose the preferred language from the available languages. 63 63...
Page 64: Keyboard & Input Method
Enable/disable the visual keyboard and/or change the default input method. • Tap on 64 64...
Page 65: Date & Time
Item Time Zone Time Format Date Format Select from the available date formats. 65 65...
Page 66: Boot Mode
Boot Mode Adjust the preferred boot up mode and set/reset a password. Item Normal Mode The embedded screen sharing Apps will run normally. Secured Mode The embedded screen sharing Apps will be removed. Disable Embedded OS will not appear. Password Reset ViewBoard 66 66...
Page 67: Startup & Shutdown
Set the Startup Input, Standby Mode, EnergyStar Mode, Startup, Schedule Item Startup Input Adjust the Startup Input preference. Decide what happens when you press the Power Standby Mode ViewBoard is On. Sleep Mode when the screen is idle EnergyStar Mode for one hour.
Page 68 Item Startup Time Switch Schedule 68 68...
Page 69: Input Source
Input Source...
Page 70: Rename Input Source
Rename Input Source Set labels for each input source that will be easily recognized when displayed. 70 70...
Page 71: Source
Source port auto switch. Item When enabled, if the current source does not have a signal, the Signal Auto Search Input Port Auto Switch plugged in. Energy Saving HDMI CEC 71 71...
Page 72: App
clear data, clear cache, and clear defaults. • Pre-loaded apps cannot be uninstalled. • Not all apps support the move to USB storage feature. • Not all apps support Clear Defaults. 72 72...
Page 73: App
• 73 73...
Page 74 • All, Download, or USB storage • 74 74...
Page 75: System
System View and adjust Storage, Security, System Update, and About device 75 75...
Page 76: Clone To Usb
Clone to USB 76 76...
Page 77: Display Id
Display ID Assign a number to remote control the display by RS-232/LAN. • To assign or change the Display ID, tap Change and input a number. The Display ID is for RS-232 users, and the range is 01~99. 77 77...
Page 78: Security
Security Review storage, and Unknown sources install • Tap on 78 78...
Page 79 • • Under • 79 79...
Page 80 • under Unknown source security. 80 80...
Page 81: System Update
System Update to the Internet (OTA). With just one click, users can update their version of Item for a new version. If a new version is found, the system will Auto Update Schedule Manual Update 81 81...
Page 82: About Device
About Device , and Asset Tagging. • Edit • Tap on to check open source licenses. 82 82...
Page 83: Embedded Applications And Settings
Embedded Digital Whiteboarding App myViewBoard. myViewBoard Move the Floating Bar. Switch between presentation and preparation modes. Paste from the clipboard onto the canvas. Click to open the web browser Go to the previous canvas. 1. New myViewBoard File Go to the next canvas. 2.
Page 84 Text Box Creates a Text box. Undo Button Undo previous actions. Redo Button Redo previous actions. Page Toggle Select pages, sort pages, delete pages. Button Show or hide the current host information. Whiteboard background management menu. 84 84...
Page 85: Viewboard Cast
ViewBoard Cast ViewBoard® to receive vCastSender laptop screens (Windows/Mac/Chrome) and • same subnet and across the subnet network. • Connected devices will show up under “Device List” on the same subnet • If the device does not show up under “Device List”, users will need to key-in the on-screen PIN-code.
Page 86: Cast Sender From Windows-Based Devices, Macbook, And Chrome Devices
Cast Sender from Windows-based, Macbook, and Chrome devices. Mac, Windows, Chrome Devices: 1. Make sure your device is connected to the same network as the ViewBoard. If the device is not listed, click Connect with PIN-Code and input the pin- code displayed on the ViewBoard.
Page 87: Phone/Tablet
based phone/tablet. Android/iOS: 1. Make sure your device is connected to the same network as the ViewBoard. 2. Scan the QR Code that is shown on the ViewBoard to download directly from the server, or download from the Google Play Store or the Apple Store. connect.
Page 88: Cast Out From A Mobile Device That Supports Annotation
Item Toggle Click to hide or display tool bar Home Click to return to the Home interface Return Folder Screen Click to share screen (Android 5.0 and above supported) sharing Touch Click to change to touch mode Clear Click to clear everything on the screen Camera Click to use the camera and send the image to the ViewBoard 88 88...
Page 89: Screen Recorder
Screen Recorder Capture everything that is displayed on screen in a video format. 2. Tap the record icon tap the check mark. 3. Select Start Now and a three (3) second countdown will begin. Screen recording discard it. 89 89...
Page 90: Air Class
Air Class ViewBoard will record the results for each device being used. • PC (Windows/Mac/Chromebook) and tablet/mobile (iOS/Android) devices, as well as the ViewBoard need to be linked to the same LAN network subnet. • Ports: TCP 8080...
Page 91 To launch Air Class: 1. Tap the tool bar trigger icon and select the more tools icon. Then select the Air Class icon. 2. Select “Enter the class”. Item Description Voter Judge Responder Selector Grouping Message Manager Exit Exit Air Class.
Page 92: Voter
Voter 1. Select the Single choice or icon to select the preferred answer type. 2. Tap BEGIN VOTING OK, the ViewBoard will show the 4. Tap FINISH VOTING to close the quiz.
Page 93 6. Choose the right answer to show the correct rate. 7. Click the Explain icon ( ) to further analyze the topic.
Page 94: Judge
Judge 1. Tap BEGIN VOTING OK, the ViewBoard will show the 3. Tap FINISH VOTING to close the quiz.
Page 95: Responder
5. Choose the right answer to show the correct rate. 6. Click the Explain icon ( ) to further analyze the topic. Responder OK to submit their answer.
Page 96: Selector
Selector 1. Select the “Selector’ icon. 3. Tap START Grouping...
Page 97: Message
Message To allow messaging: SEND. 4. The message will scroll across the top of the ViewBoard. Manager Exit Select to exit the Air Class interface.
Page 98: Other Default Applications
vSweeper 98 98...
Page 99: Screen Lock
Screen Lock Set a screen lock password and enable screen lock. If the user forgets the password, use the remote control and press INPUT-0-2-1-4 to restore the password to default. To set a screen lock password: 1. Go to: > Personal > Password for screen lock, or select the Screen Lock icon in the apps list.
Page 100: Chromium
Chromium...
Page 101: Folders
Folders 1. Storage Device Display Select the appropriate storage device. 2. Icons Item Click to exit. Exit Click to sort file. Sort Click to display file by thumbnail mode. Thumbnail Click to display file by list mode. List Click to select file. Select Click to add folder.
Page 102 3. File Type Menu Item Description All types OFFICE files Image stored by myViewBoard, Side Tool Note Bar, and remote control Screen Capture button. Picture Image files Media Audio and Video files 5. Main Display Area...
Page 103: Miracast
Miracast devices.
Page 104: Rs-232 Protocol
RS-232 Protocol with RS-232 protocol. • • • Remote control pass-through mode Below, “PC” represents all the control units that can send or receive the RS-232 protocol command. 1. Connector type: DSUB 9-Pin Male (or 3.5 mm barrel connector) 3. Pin Assignment: Female DSUB 9-Pin Pin # Signal Remark...
Page 105: Lan Hardware Specification
1. Connector type: 8P8C RJ45 2. Pin Assignment: Pin # Signal Remark Output from Display Output from Display Input to Display BI_D3+ For 1G case BI_D3- For 1G case Input to Display BI_D4+ For 1G case BI_D4- For 1G case frame - Baud Rate Select: - Data bits:...
Page 106: Protocol
Protocol allows you to control the Display behavior at a remote site through the RS-232 port. Length: Total Byte of Message excluding “CR” LFD ID Identification for each of Display (01~98; default is 01) ID “99” means to apply the set command for all connected displays.
Page 107 Name Length Command Type Command Value1 Value2 Value3 0x30 0x38 0x73 0x24 0x30 0x37 0x36 0x0D 0x32 Name Length Command Type 0x30 0x34 0x2B 0x0D 0x32 Name Length Command Type Command Value1 Value2 Value3 0x38 0x30 0x73 0x24 0x30 0x37 0x35 0x0D 0x32...
Page 108 Length ID Command Command Value Range Comments Type (ASCII) Code Code (Three ASCII (ASCII) (Hex) bytes) Power on/ off 000: STBY 1. The Power-on (standby) 001: ON via LAN control may works only under specific mode. To see display UG for details.
Page 109 Button lock 000: Unlock *See note in details 001: Lock Menu lock > 000: Unlock *See note in details 001: Lock Number 000~009 *3.1.1 Key Pad 000: UP *3.1.1 001: DOWN 002: LEFT 003: RIGHT 004: ENTER 005: INPUT 006: MENU/(EXIT) 007: EXIT Remote 000: Disable...
Page 110 Length ID Command Command Value Range Comments Type (ASCII) Code Code (Hex) (Three ASCII bytes) (ASCII) Contrast 000 ~ 100 Sharpness 000 ~ 100 Color & 000 ~ 100 Tint ‘ 000 ~ 100 Backlight On_Off 000: Off 001: On Color mode 000: Normal 001: Warm...
Page 111 Tiling-Mode 000: OFF (for video wall) 001: ON Tiling-Compen- 000: OFF (for video wall) sation 001: ON Bezel width com- pensation Tiling-H by V 01x~09x: H (for video wall) Monitors 0x1~0x9: V 1. 2nd digital for H monitors 2. 3rd digital for V monitors Tiling-Position 001~025...
Page 112: Get-Function Listing
Note that the “Value” byte is always = 000. Length: Total Byte of Message excluding “CR”. TV/DS ID Identification for each of TV/DS (01~98; default is 01). Command Type Identify command type, “g” (0x67h) : Get Command “r” (0x72h) : Valid command Reply “-“...
Page 113 Example 1: Get Brightness from TV-05 and this command is valid. The Brightness value is 67. Name Length Command Type Command Value1 Value2 Value3 0x30 0x38 0x67 0x62 0x30 0x30 0x30 0x0D 0x35 Name Length Command Type Command Value1 Value2 Value3 0x30 0x38 0x72...
Page 114 Response Length ID Command Command Comments Range Type (ASCII) Code Code (Three ASCII (ASCII) (Hex) bytes) Get-Brightness 000 ~ 100 000 ~ 100 1. For Android Get-Backlight *3.2.0 platform whose main mode is controlled by backlight and the other sources are controlled by bright- ness.
Page 115 Get-MAC address (for the model with LAN) Reply in new 32-byte format *3.2.0 Get-IP address (for the model with *3.2.0 LAN) Reply in new 32-byte format*3.2.0 Get-Serial number Reply in new 32-byte *3.2.0 format *3.2.0 Get-FW version Reply in new 32-byte *3.2.0 format *3.2.0 Reply: 0x 32 30 31 72 31 31 32 33 34 35 36 00 00 …...
Page 116 6. Get FW version example Assumed the FW version is 3.02.001 Send: 0x 38 30 31 67 38 30 30 30 0D (Get FW version) Reply: 0x 32 30 31 72 38 33 2E 30 32 2E 30 30 31 00 00…00 00 0D...
Page 117 Length ID Command Command Response Comments Range Type (ASCII) Code Code (Hex) (Three ASCII bytes) (ASCII) Get-Contrast 000 ~ 100 Get-Sharpness 000 ~ 100 Get-Color 000 ~ 100 Get-Tint 000 ~ 100 Get-Backlight 000: Off On_Off 001: On Get-PIP mode 000: OFF 001: PIP (POP) 002: PBP...
Page 118 2. Get Time example Time: 16:27:59 Send: 0x 38 30 31 67 33 48 30 30 0D (Get Time:Hour) Reply: 0x 38 30 31 72 33 48 31 36 0D (“H16”) Send: 0x 38 30 31 67 33 4D 30 30 0D (Get Time:Min) Reply: 0x 38 30 31 72 33 4D 32 37 0D (“M27”) Send:...
Page 119 C. Auto Reply *3.2.1 a query from the host whenever the following data/status is changed by the user through any of the available ways like: remote control unit, front keys, or touch screen. • Power On/Off • Input Select • Brightness •...
Page 120: Remote Control Pass-Through Mode
Remote Control Pass-through Mode When the PC sets the Display to Remote Control Pass through mode, the Display shall send a 7-byte packet (followed by “CR”) in response to remote control unit Display, but instead only sends the “Volume+” code to the PC over the RS-232 port. RCU Code1 RCU Code2 Name Length...
Page 121 VOLUME DOWN (-) MUTE CHANNEL/PAGE UP (+)/ BRIGHTNESS+ CHANNEL/PAGE DOWN (-)/ BRIGHTNESS- POWER SOURCES (INPUTS) SLEEP MENU DOWN LEFT (-) RIGHT (+) OK (ENTER, SET) EXIT (F1) GREEN (F2) YELLOW (F3) BLUE (F4) Special control sequence for POWER key under IR-pass through mode. 2-1.
Page 122 2-2. When Display is ON and receives the IR POWER code: Display will forward the 2-3. When SET-POWER LOCK is enabled, the Display will not respond to POWER key pressing. The VOLUME UP and VOLUME DOWN code will repeatedly output when you press and hold the keys.
Page 123: Appendix
Appendix Item Category Model P/N. IFP5550-3 IFP6550-3 IFP7550-3 IFP8650-3 IFP5550-3A IFP6550-3A IFP7550-3A IFP8650-3A IFP5550-3B IFP6550-3B IFP7550-3B IFP8650-3B VS18105 VS18106 VS17117 VS17118 Screen Size 54.5” 65.5” 74.5” 85.5” Input Signal 3 x HDMI 1 x VGA 1 x Audio In 1 x LAN (RJ45) 4 x USB Type A (3.0) 3 x USB Type A (2.0) Output Signal...
Page 124: Display Modes
Display Modes VGA Mode 640 x 480 60Hz, 72Hz, 75Hz 720 x 400 70Hz 800 x 600 56Hz, 60Hz, 72Hz, 75Hz 832 x 624 75Hz 1024 x 768 60Hz, 70Hz, 75Hz 1152 x 864 60Hz, 75Hz 1152 x 870 75Hz 1280 x 768 60Hz, 75Hz 1280 x 960...
Page 125: Troubleshooting
using the ViewBoard. Problem or Issue Remote Control is not working display’s remote control receiver. are installed correctly. 1. Check whether Sleep mode is enabled. unexpectedly 2. Check if there is a power outage in your area. 3. Turn on the display and see if the problem is with the signal and control system.
Page 126 Problem or Issue 1. Check that drivers are installed correctly. not work 2. Reinstall driver(s). 3. Check setup and align it. 4. Check whether the touch pen is working properly. Video Not Working Properly Problem or Issue No picture/ No sound 1.
Page 127: Maintenance
• • the surface. Disclaimer • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the device. •...
Page 128: Regulatory And Service Information
and relevant markings on the unit. FCC Compliance Statement device must accept any interference received, including interference that may with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. can radiate radio frequency energy, and if not installed and used in accordance is encouraged to try to correct the interference by one or more of the following measures: •...
Page 129: Declaration Of Rohs2 Compliance
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
Page 130: Energy Star® Statement
ENERGY STAR® statement that helps businesses and individuals save money and protect our climate As an ENERGY STAR® Partner, ViewSonic is determined to meet the ENERGY STAR® with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent...
Page 131: Copyright Information
Macintosh and Power Macintosh are registered trademarks of Apple Inc. ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are DPMS, DisplayPort, and DDC are trademarks of VESA. Disclaimer: IFP50-3_UG_ENG_1a_2020-06-17...
Page 132: Customer Service
Customer Service For technical support or product service, see the table below or contact your reseller. You will need the product’s serial number. Country/ Region Website Country/ Region Website Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ (China) www.viewsonic.com.cn www.viewsonic.com/hk/ Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
Page 133: Limited Warranty
ViewSonic® Smart White Board What the warranty covers: ViewSonic® warrants its products to be free from defects in material and in material or workmanship during the warranty period, ViewSonic® will, at its product. Replacement Product or parts may include remanufactured or refurbished parts or components.
Page 134 • To obtain warranty service, you will be required to provide: (a) the original dated (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • contact ViewSonic®.
Page 135 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages damages. • • Any claim against the customer by any other party.
Page 136: Mexico Limited Warranty
ViewSonic® Smart White Board What the warranty covers: ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product Replacement product or parts may include remanufactured or refurbished parts or components &...
Page 137 ViewSonic® service center. • ViewSonic®. Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages damages.
Page 138 Tel: 01(52)95-15-15-22-22 E-Mail: rrrb@sureste.com Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com Tijuana: FOR USA SUPPORT: ViewSonic® Av Ferrocarril Sonora #3780 L-C 381 Brea Canyon Road, Walnut, CA. 91789 USA Col 20 de Noviembr Tel: 800-688-6688 Tijuana, Mexico Smart White Board Warranty Term Template In UG...

This manual is also suitable for:

Vs18105 Vs18106 Vs17117 Vs17118

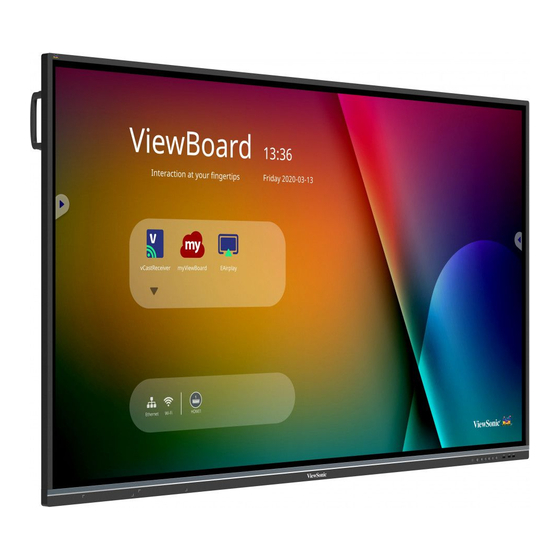

ViewSonic IFP50-3 Series User Manual

Safety Precautions

Introduction

Making Connections

Using Your Viewboard

Embedded Applications and Settings

RS-232 Protocol

Appendix

Regulatory and Service Information

Quick Links

Need help?

Questions and answers

Related Manuals for ViewSonic IFP50-3 Series

Summary of Contents for ViewSonic IFP50-3 Series

This manual is also suitable for:

Table of Contents
