Item #0000000000
Model #HB-7903-02
USE AND CARE GUIDE
WIRELESS MOTION ALERT
DOORBELL KIT
Questions, problems, missing parts?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 5 p.m., CST, Monday - Friday
1-844-760-3644
HAMPTONBAY.COM
Illustrations may vary from actual unit.
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wireless motion
alert doorbell kit.
We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY HB-7903-02
Summary of Contents for HAMPTON BAY HB-7903-02
- Page 1 Illustrations may vary from actual unit. THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wireless motion alert doorbell kit. We strive to continually create quality products designed to enhance your home. Visit us online to see...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Tools Required ........3 Safety Information ........2 Hardware Included .........3 Warranty ............2 Package Contents ........4 3-Year Limited Warranty ......2 Installation ..........4 Pre-Installation ..........3 Operation ...........6 Planning Installation ......3 Care and Cleaning ........8 Specifications ........3 Troubleshooting .........8 Safety Information PRECAUTIONS... -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Before installing the wireless motion alert doorbell kit, ensure that all parts are present. Compare the parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this wireless motion alert doorbell kit. -
Page 4: Package Contents

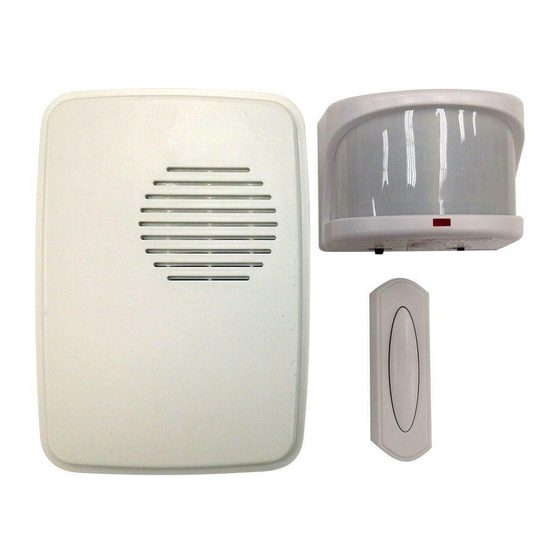

Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Doorbell Motion sensor Push button Installation Installing the doorbell □ Plug in the doorbell (A) at the desired location. Installing the batteries into the motion sensor □ Remove the screw and cover on the back of the motion sensor (B) using a small Phillips screwdriver (not included). - Page 5 Installation (continued) Removing the battery tab □ Remove the backs of the push button (C) by pushing in the tab on the bottom with a small flathead screwdriver (not included). □ Remove the orange battery tab from the push button (C). Testing the push button and doorbell □...
-
Page 6: Operation
Installation (continued) Mounting the push button Use either screws (BB) or double-sided tape (CC) to mount the push button (C). □ To mount with screws (BB), remove the back of the push button (C) by pushing in the tab on the bottom with a small flathead screwdriver. - Page 7 Operation (continued) Setting the sensor’s day detect The sensor (B) can be programmed to operate during DAY DETECT the daytime only (DAY ONLY) or both day and night (DAY/NIGHT). DAY/ ONLY NIGHT □ Remove the batteries from the sensor (B). □...
-
Page 8: Care And Cleaning
Operation (continued) Selecting a push button tune NOTE: All doorbells are designed to play only two different tunes no matter how many push buttons are used. The doorbell (A) has different selectable tunes for different push buttons (sold separately). The push button (C) set as the “REAR”... - Page 9 Troubleshooting (continued) Problem Possible Cause Solution □ □ The doorbell The day detect switch The sensor is functioning correctly. If a doorbell alert is sounds at night. is in the “DAY/NIGHT” not desired at night, slide the day detect switch to the position.
- Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 5 p.m., CST, Monday - Friday 1-844-760-3644 HAMPTONBAY.COM Retain this manual for future use. 208191-01A...
