Item #0000000000
Model #HB-7901-02
USE AND CARE GUIDE
WIRELESS DOORBELL AND
MAIL REMINDER KIT
Questions, problems, missing parts?
Before returning to the store, call Hampton Bay Customer Service
8 a.m. - 5 p.m., CST, Monday - Friday
1-844-760-3644
HAMPTONBAY.COM
Illustrations may vary from actual unit.
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wireless doorbell
and mail reminder kit. We strive to continually create quality products designed to enhance your home. Visit us online to
see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY HB-7901-02
Summary of Contents for HAMPTON BAY HB-7901-02
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wireless doorbell and mail reminder kit. We strive to continually create quality products designed to enhance your home. Visit us online to...
-
Page 2: Table Of Contents
Table of Contents Tools Required ........3 Table of Contents ........2 Hardware Included .........3 Safety Information ........2 Package Contents ........4 Warranty ...........2 Installation ..........4 3-Year Limited Warranty ......2 Operation...........6 Pre-Installation .........3 Care and Cleaning ........7 Planning Installation ......3 Troubleshooting ........7 Specifications ........3 Safety Information PRECAUTIONS NOTE: The mailbox sensor, push buttons, and doorbell... -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Before installing the wireless doorbell and mail reminder kit, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this wireless doorbell and mail reminder kit. Estimated installation time: 30 minutes The mailbox sensor will only work on mailboxes that have a vertical, tilt-style door. -
Page 4: Package Contents

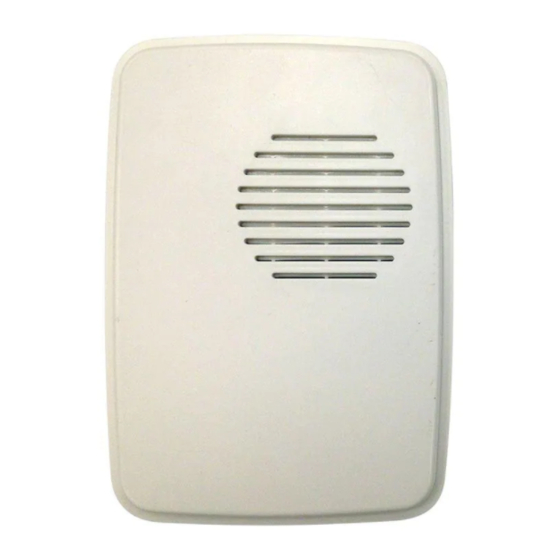

Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Doorbell Mailbox sensor Push button Installation Installing the doorbell Plug in the doorbell (A) at the desired location. Removing the battery tab Remove the backs of the sensor (B) and push buttons (C) by pushing in the tab on the bottom with a small screwdriver (not included). - Page 5 Installation (continued) Testing the push button and doorbell Temporarily position the push button (C) where it will be mounted. Press the push button (C) to verify the doorbell (A) and push button (C) work properly. If the doorbell (A) does not sound, move the doorbell (A) closer to the push button (C) and test again.
-
Page 6: Operation
Installation (continued) Mounting the sensor in a wall NOTE: When installed correctly, the red LED on the sensor mounted mailbox will flash when the mailbox lid is opened. Use double-sided tape (CC) to mount the sensor (B). Remove paper from both sides of the double-sided tape (CC) and apply to a clean surface. - Page 7 Operation (continued) Setting the wireless push Remove the single jumper inside the push button button (C) to play the selected musical tune. Add the single jumper inside the push NOTE: The two push buttons included in this kit will come button (C) to play only the Ding tune.
-
Page 8: Care And Cleaning
Care and Cleaning Use a dry cloth to clean the doorbell, sensor, and push buttons. Do not use cleaners or polishes. Do not use any fluids on the doorbell, sensor, and push buttons. Troubleshooting Problem Possible Cause Solution Doorbell does not Batteries not installed Make sure batteries are installed according to the sound. - Page 9 Troubleshooting (continued) Problem Possible Cause Solution Batteries seem Doorbell or push Metal reduces transmission range. Use 1/4 in. to 1/2 in. okay, but the button(s) is mounted (6 to 13 mm) wood shims to move the doorbell or push doorbell does on metal or near metal button(s) away from the metal surface.
- Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 5 p.m., CST, Monday - Friday 1-844-760-3644 HAMPTONBAY.COM Retain this manual for future use. 208190-01A...
