Pittsburgh 93294 Assembly & Operating Instructions

Pittsburgh 93294 Assembly & Operating Instructions

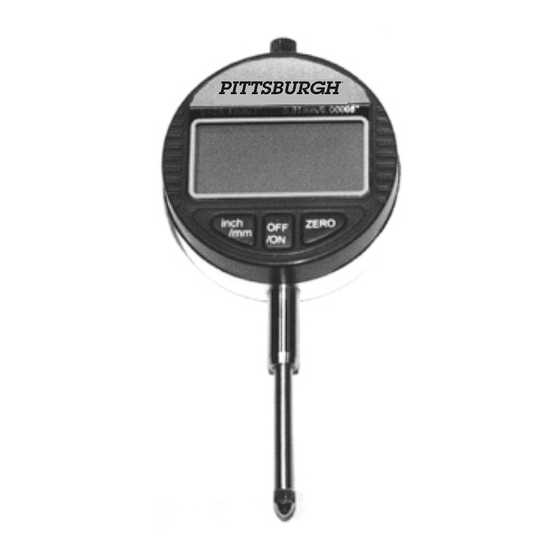

Digital indicator 0-1/2”/ 0-1”

Advertisement

DIGITAL INDICATOR 0-1/2" (93294)
DIGITAL INDICATOR 0-1" (93295)
ASSEMBLY & OPERATING INSTRUCTIONS
Copyright
2005 by Harbor Freight Tools
©
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn
proportionally. Due to continuing improvements, actual product may differ slightly from the
product described herein. Tools required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Indicator:
Dial Range:
All other specifications are the same for each Digital Indicator.
Battery:
Accuracy:
Operating Temperature: 0°C to 40°C
Face Diameter:
Ball Diameter:
Stem Length:
Resolution:
Dial Readings:
Manual Shutoff
Revised Manual 10h
Brought to You by www.snapwhole.com
Visit our Web Site at www.harborfreight.com

Technical Specifications

93295: 0-1"; 93294: 0-1/2"
93295: 0-1"; 93294: 0-1/2"
SR44 - 1.5 Volt Silver Oxide Battery (extra
+/- .001"
2-1/4"
.118"
.75" L x .375 in diameter
.0005"
Inches/mms
93294
93295
. All rights reserved. No portion of this manual or
®
battery included)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 93294 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pittsburgh 93294

  • Page 1 Brought to You by www.snapwhole.com DIGITAL INDICATOR 0-1/2” (93294) DIGITAL INDICATOR 0-1” (93295) 93294 93295 ASSEMBLY & OPERATING INSTRUCTIONS Visit our Web Site at www.harborfreight.com Copyright 2005 by Harbor Freight Tools . All rights reserved. No portion of this manual or ©...
  • Page 2 There are many applications for the Digital Indicator. On the following page is one example of how this product can be used: testing brake rotors for true. Make certain to clean off all brake components with brake parts cleaner before testing. SKU 93295/93294 For technical questions please call 1-800-444-3353. Page 2...
  • Page 3 3. Lock it up and store in a dry location to inhibit rust. Keep out of the reach of children. Before storing the instrument for extended periods of time, take out battery. Note: No replacement parts are available for this product. SKU 93295/93294 For technical questions please call 1-800-444-3353. Page 3 REV 10h...
