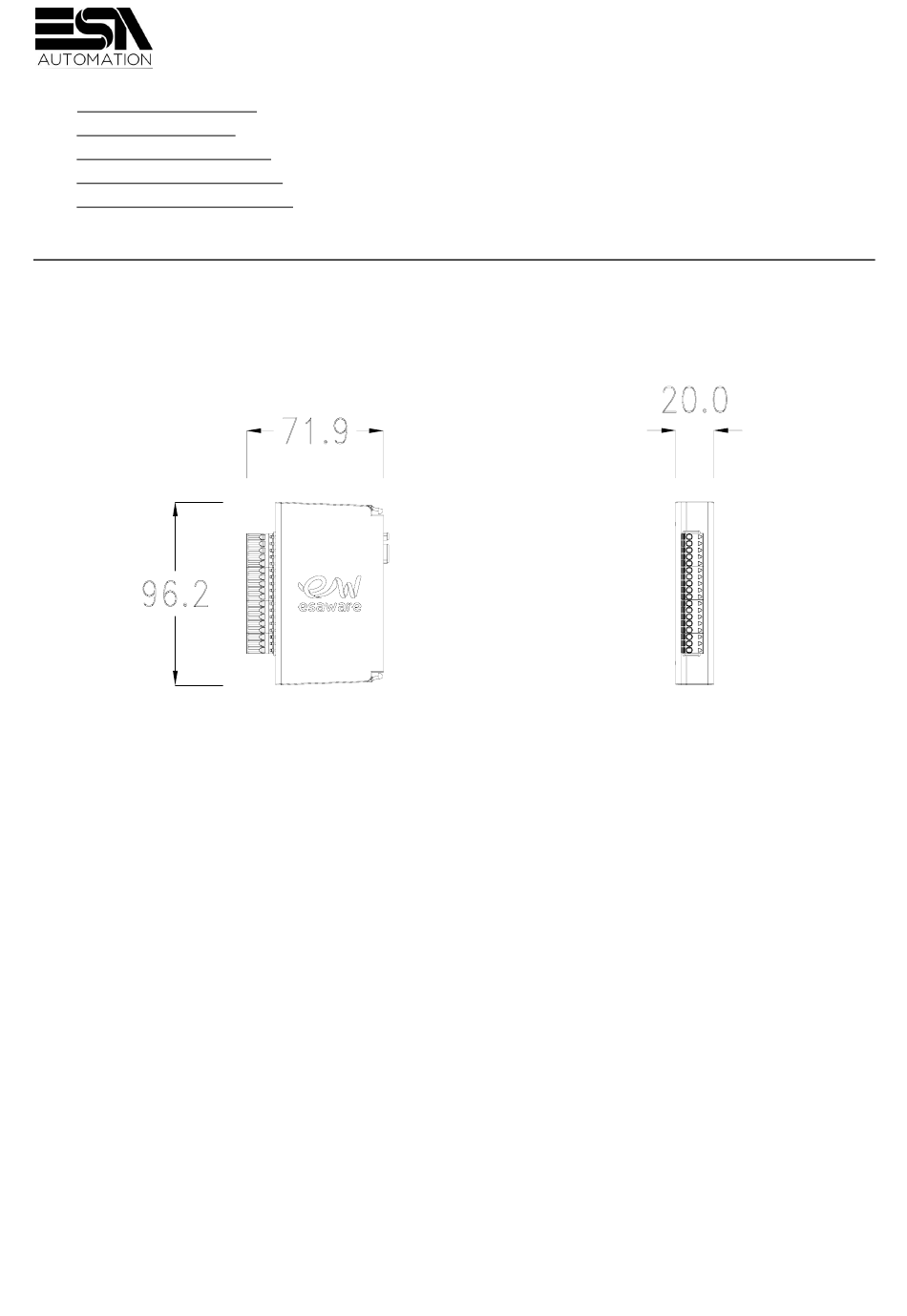

- Page 1 EW INGRESSI/USCITE EW INPUT/OUTPUT EW ENTRÉES/SORTIES EW EINGABE/AUSGABE EW ENTRADAS/SALIDAS Dimensioni / Dimensions / Dimensions / Abmessungen / Dimensiones EW600C Rev. 0 Date: 10/06/2015 405.1300.233.0...
- Page 2 Montaggio EW600 su terminale EW / Assembly of terminal EW600 EW / Montage du EW600 sur terminaux EW / Montage des Terminals EW600 EW / Montaje del terminal EW600 EW Spegnere il EW / Switch off EW / Éteindre le EW / Das EW ausschalten / Apague el EW CLICK CLICK Rimozione EW600 da terminale EW / Removal from terminal EW600 EW / Retrait...
- Page 3 Collegamenti elettrici / Electrical Connections / Connexions électriques / Elektrische Anschlüsse / Conexiones Eléctricas Spring connector 0,14 – 1,5 mm 30 – 14 AWG 9 - 10mm...
- Page 4 Collegamenti elettrici / Electrical Connections / Connexions électriques / Elektrische Anschlüsse / Conexiones Eléctricas EW600C02N00 - I/O FAST INPUT 2IN – Opto-isolated Max. frequency 100KHz – Input voltage 5-30V Function (software selectable) Incremental Differential Up/Down Pulse+Direction pulse input phase input (4x) input input Pulse...
- Page 5 Collegamenti elettrici / Electrical Connections / Connexions électriques / Elektrische Anschlüsse / Conexiones Eléctricas Function: Differential phase (4x) Differential input mode Single ended input mode 0VDC 0VDC 0VDC 0VDC /Z * /Z * 0VDC 0VDC Not Connected Not Connected * Connect only if the signal is configurated by software Function: Up/Down Differential input mode Single ended input mode...
- Page 6 Reset * /Reset * /Reset * 0VDC 0VDC Not Connected Not Connected * Connect only if the signal is configurated by software ESA elettronica S.p.A. Via Padre Masciadri, 4/A 22066 Mariano Comense (CO) ITALY Tel. ++39.031757400 Fax ++39.031751777 Web: www.esa-automation.com E-mail:...
