DMT MYOGRAPH SYSTEM 112PP User Manual page 12

1.2.2 PULSATILE PRESSURE MYOGRAPH - 112PP
Outlet pressure transducer
connection pipe
3-way Outlet valve
Outlet pressure
transducer
Screw for adjusting the
P2 arm in the vertical
direction
Outlet connecting pipe
Silicone tube connecting
perfusion outlet pipe and
right Glass Cannula
12
Micropositioner for vertical
adjustment of Glass Cannulas
Force Transducer housing
Force transducer pin
Fixation plate for left
Glass Cannula
Left Glass Cannula Chamber Window

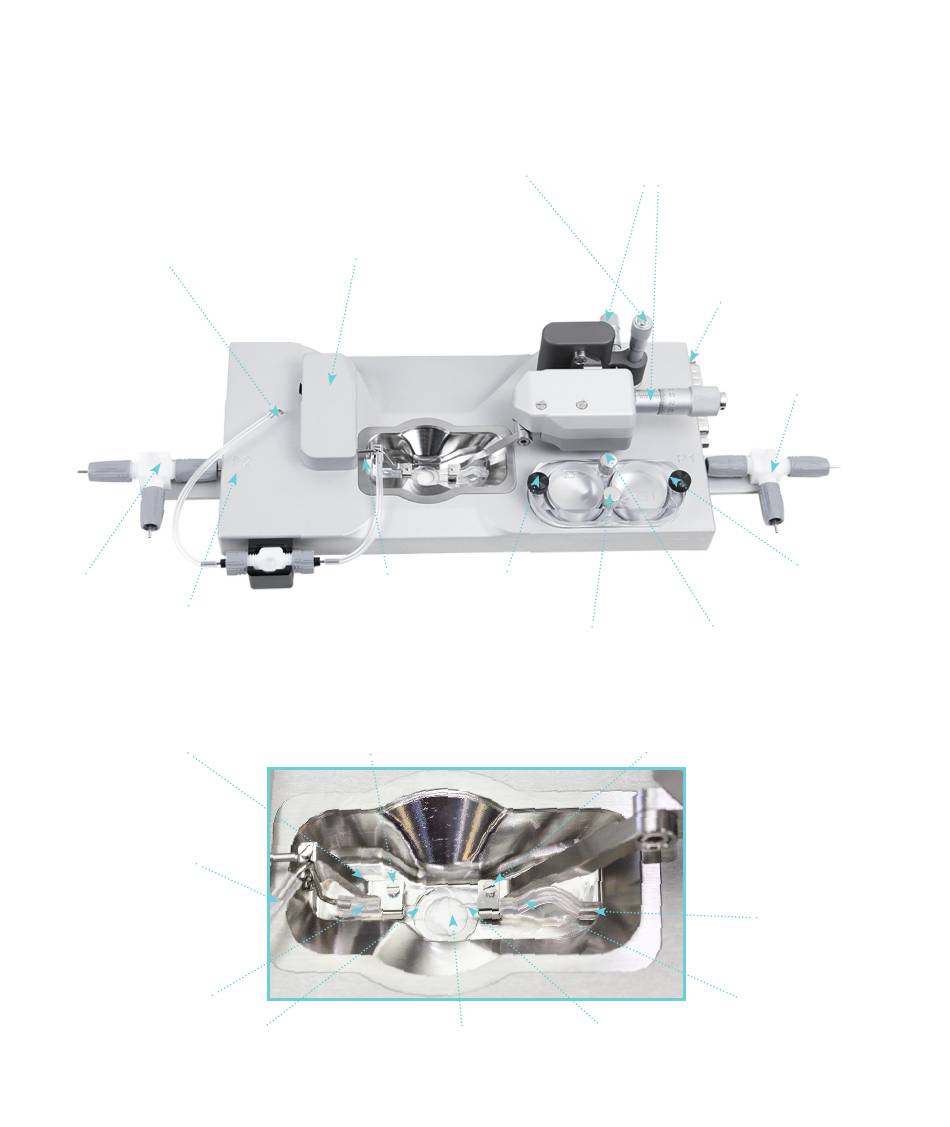

Figure 1.2 Pressure Myograph - 112PP with close-up detail of the chamber
Micropositioner for
horizontal adjustment of
Glass Cannulas
Pulsation
Chamber 2
Pressure Release screw
for Pulsation Chamber1
Fixation plate for right
Glass Cannula
Right Glass Cannula
25 pin serial port for
communication with
Pressure Interface
3-way Inlet valve
Pulsation
Chamber 1
Pressure Release screw
for Pulsation Chamber2
Perfusion inlet pipe
Silicone tube connecting
perfusion inlet pipe and
right Glass Cannula
