1.2 PRESSURE MYOGRAPHS

1.2.1 PRESSURE MYOGRAPH - 114P
Outlet pressure transducer
connection pipe
3-way Outlet valve
Screw for adjusting the
P2 arm in the vertical
direction
Outlet connecting pipe
Silicone tube connecting
perfusion outlet pipe and
right Glass Cannula
Micropositioner for vertical
adjustment of Glass Cannulas
Force Transducer housing
Outlet pressure
transducer
Fixation plate for left
Glass Cannula
Left Glass Cannula

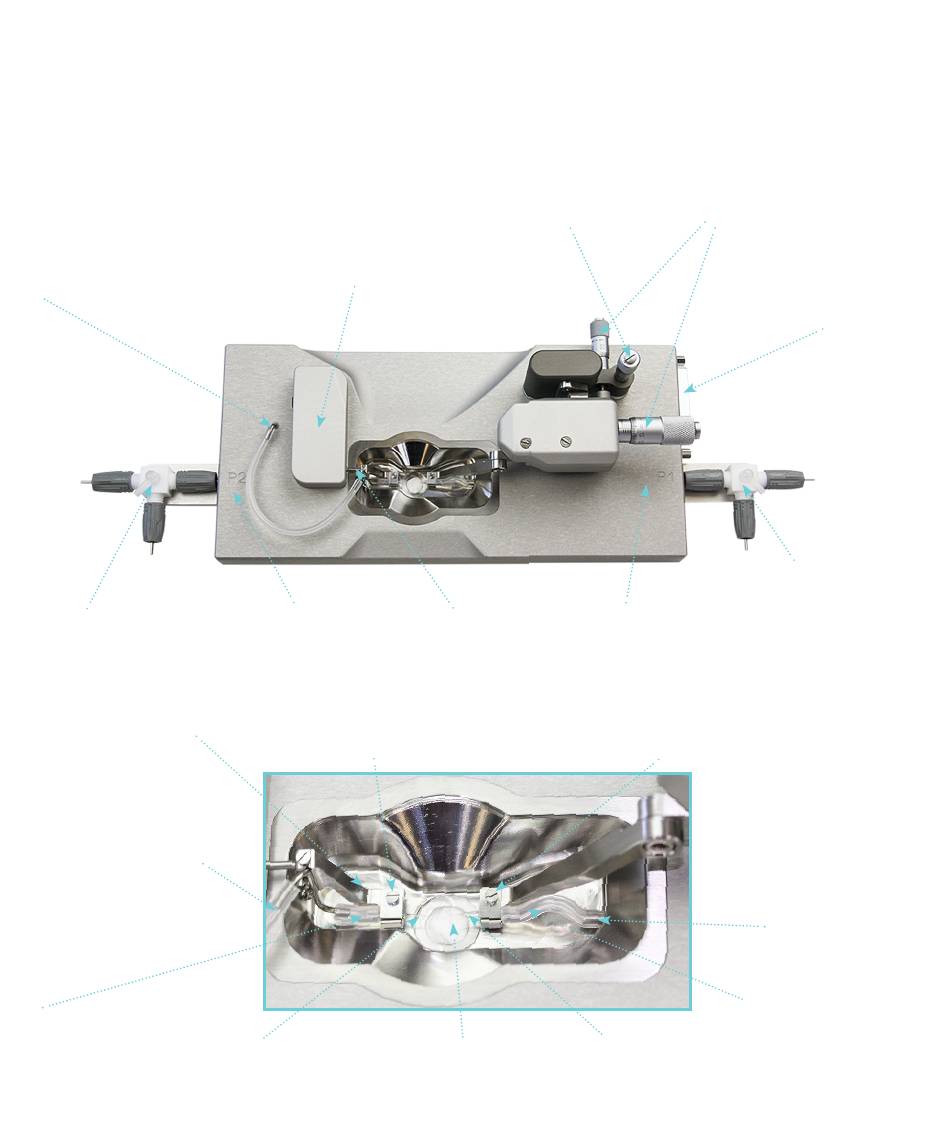

Figure 1.1 Pressure Myograph - 114P with close-up detail of the chamber
Inlet pressure
Force transducer pin
transducer
Right Glass Cannula
Chamber Window
Micropositioner for
horizontal adjustment of
Glass Cannulas
25 pin serial port for
communication with
Pressure Interface
3-way Inlet valve
Fixation plate for right
Glass Cannula
Perfusion inlet pipe
Silicone tube connecting
perfusion inlet pipe and
right Glass Cannula
