24V DC port for power
ON/OFF switch
Connection port for Myograph chamber
10
Analogue recorder output – connection to external data acquisition
software (optional)

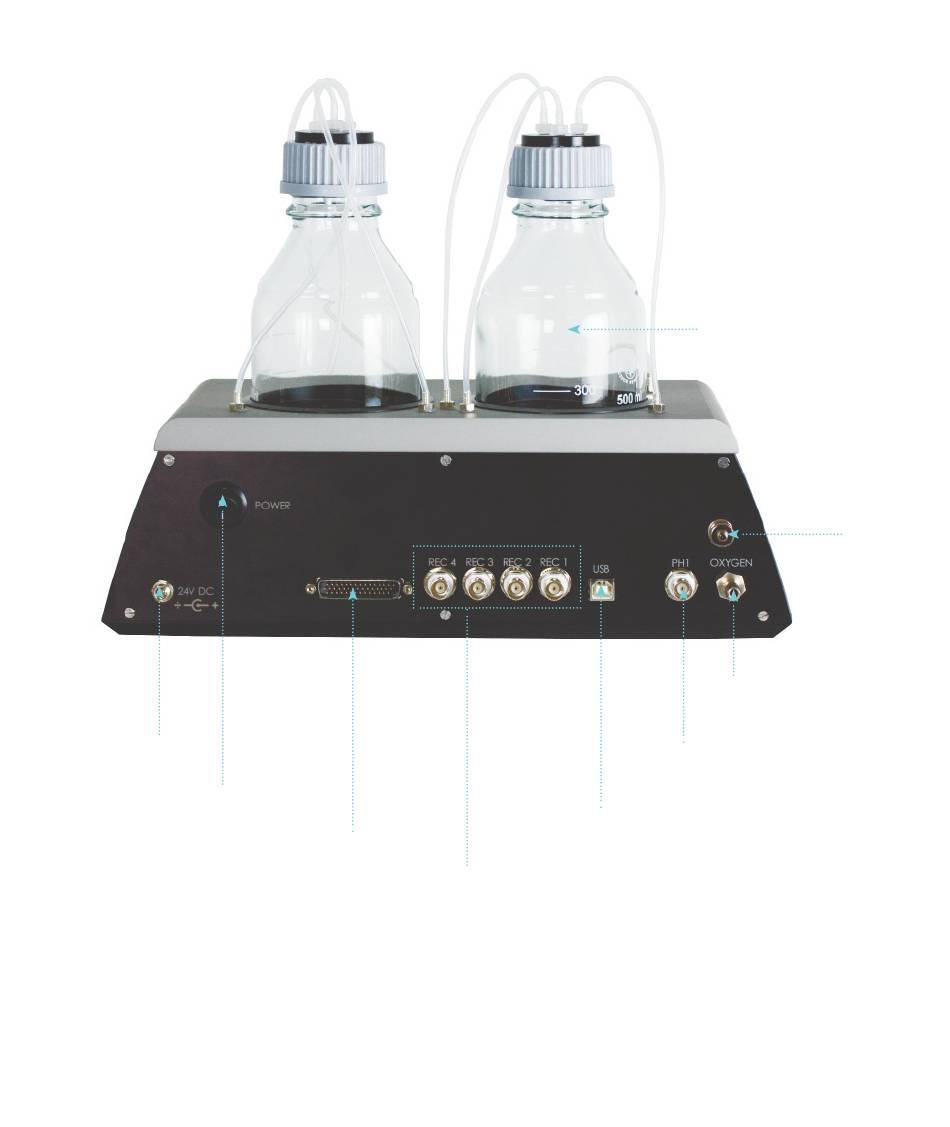

Figure 1.2 Pressure Interface - rear
2 x 500 ml Schott Duran bottles
Ground connection
Inlet for oxygen/carbogen
to pressure bottles (max
1 bar)
Connection port for pH electrode
(optional)
USB connection port for
computer
