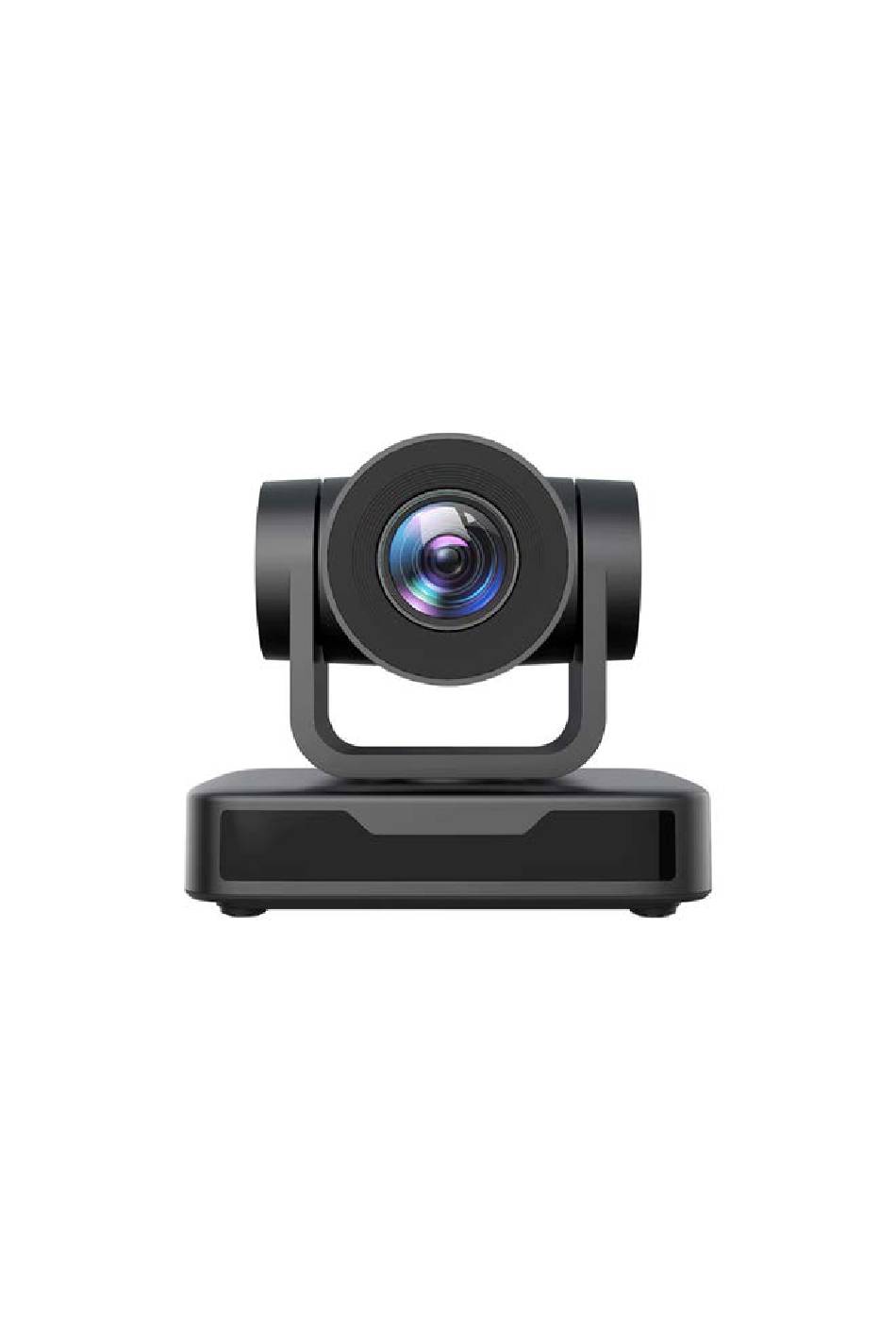

FULL HD PTZ CAMERA
User Manual
（V1.0）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-PTZ703-710U2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prestel HD-PTZ703-710U2

Summary of Contents for Prestel HD-PTZ703-710U2

  • Page 1 Prestel HD-PTZ703-710U2 FULL HD PTZ CAMERA User Manual （V1.0）...
  • Page 2 Attentions This manual introduces functions, installations and operations for this PTZ camera in details. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.

  • Page 3: Table Of Contents

    Content 1. Camera Installation ..............................3 1.1 Interfaces and Connection ..........................3 1.2 Power-on Initial Configuration ......................... 3 1.3 Video Output ..............................4 1.4 Mounting Brackets ............................4 2. Product Overview ..............................6 2.1 Camera Introduction ............................6 2.1.1 Model ................................. 6 2.1.2 Dimension ..............................6 2.1.3 Accessory ..............................7 2.2 Main Features ..............................7...

  • Page 4: Camera Installation

    1. Camera Installation 1.1. Camera Introduction Figure 1.1 Product Interfaces 1. Camera Lens 5. Screw Hole for Tripod 9. USB 2.0 Interface 2. Remote Control Receiving 6. RS232 Control Interface（Input） 10. DC12V Input Power Supply Indicator Socket 3. Camera Base 7.

  • Page 5: Video Output

    1.3 Video Output USB2.0 Video Output a. USB 2.0 video cable connection: as shown in Figure1.1 label 9 b. Connect the camera and the computer via USB2.0 video cable, open the video software and select the image device to output the video. 1.4 Mounting Brackets Notes: Ceiling or wall mounting brackets can only be mounted on template and concrete wall.
  • Page 6 2）Ceiling Mounting...

  • Page 7: Product Overview

    2. Product Overview 2.1 Product Introduction 2.1.1 Model Model No. — XXX 03---3X Optical Zoom Lens 10---10X Optical Zoom Lens Figure 2.1 Product Model 2.1.2 Dimension...

  • Page 8: Accessory

    Figure 2.2 Product Dimension 2.1.3 Accessory Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power adapter Wall Mount IR Remote Control Ceiling Mount RS232 Cable User Manual USB2.0 Cable USB2.0 video cable: If USB2.0 video cable is required for power supply without power adapter, in which power is supplied by red end and USB video signal is transmitted by black end;...

  • Page 9: Technical Parameter

    fantastic color rendition.  Full HD Resolution: 1/2.9 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30 fps.  Multiple Optical Zoom Lens: 3X/10X optical zoom lens.  Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology. ...

  • Page 10: Interface Instruction

    Exposure Auto / Manual On/Off Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve >50dB Input/output Interface Video Output USB2.0 Interface, A Type Interface Video Compression MJPG, H.264, H.265 Format Control Interface RS232 (IN/OUT), RS485 Control Protocol VISCA/Pelco-D/Pelco-P Power Interface HEC3800 outlet (DC12V) USB Feature...

  • Page 11: Rs-232 Interface

    Figure2.4 Wiring Diagram 2.4.2 RS-232 Interface 1）RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI...
  • Page 12 2）RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR Commander Signal IR OUT No Connection 3）RS232(DB9) Port Definition Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready...

  • Page 13: Application Instruction

    3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration The remote control receiving indicator flashes after power on, the pan-tilt turns left to the lowest left to the lowest, and then turns to the HOME position (both the horizontal and vertical positions are in the middle), while the movement first shrinks and then stretches.
  • Page 14 1) In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. 2) When a key-combination is required, do it in sequence. For example,“ 【*】+【#】+ 【F1】”means press“【*】”first and then press“【#】”...
  • Page 15 ZOOM +: press【ZOOM +】key to zoom in ZOOM - : press 【ZOOM -】key to zoom out Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released. 5. Set and Clear Presets Set Preset: press 【SET PRESET】...

  • Page 16: Menu Introduction

    【MENU】: Open / close the OSD menu 【HOME】: Camera lens back to the middle position; Confirm button; Enter next menu 【↑】 【↓】 ：Choose item 【←】 【→】 ：Modify values 【BLC ON/OFF】 ：Turn on or off the back light compensation 8. Camera Remote Control Address Setting 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No.

  • Page 17: System Setting

    [↑↓] Select: For selecting menu [← →] Change Value: For modifying parameters [MENU] Back: Press [Menu] to return [Home] OK: Press [Home] to confirm 3.3.2 System Setting Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter into the (System Setting) as shown below, SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 18 Color: Enter into color setting Image: Enter into image setting Focus: Enter into focus setting Noise Reduction: Enter into noise reduction 1）Exposure Setting Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】key and enter into the (Exposure sub menu) as shown below, EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 19 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity High [↑↓]Select [← →]Change Value [Menu]Back WB Mode: Auto, Manual, One Push, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 6500K,7000K Saturation: 60%,70%,80%,90%,100%,110%,120%,130%,140%,150%,160%,170%,180%,190%,200% Red fine-tuning: -10~10 (only available in automatic mode) Blue fine-tunable: -10~10 (only available in automatic mode) RED GAIN: 0~255(only available in Manual mode) BLUE GAIN: 0~255(only available in Manual mode)

  • Page 20: P/T/Z

    DCI: Dynamic Contrast: Off/1～8 Minimum Illumination: On/Off 4）Focus Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow, FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto AF-Zone AF-Sensitivity [← →]Change Value [↑↓]Select [Menu]Back Focus Mode: Auto/manual AF-Zone: Up/middle/down AF-Sensitivity: High/middle/low 5）Noise Reduction Move the pointer to the (NOISE REDUCTION) in the Menu, click the【HOME】and enter the (NOISE...

  • Page 21: Version

    P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by zoom Zoom speed Acc Curve Slow [← →]Change Value [↑↓]Select [Menu]Back Depth of Field: Only effective for the remote controller, On/ Off; (When zooming in, the PT control speed by remoter will become slow) Zoom Speed: Set the zoom speed for the remote controller, 1~8 Image Freezing: On/Off Accelerating Curve: Fast/Slow 3.3.5 Version...

  • Page 22: Serial Port Communication And Control

    RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [← →]Change Value [↑↓]Select [Menu]Back [Home]OK Restore default: YES/NO. Color style and video format cannot be restored to factory default Note: If the address of former remoter is not 1 but another one from 2, 3, 4, the corresponding camera address will restore to 1 when all parameters or system parameters are restored.

  • Page 23: Visca Protocol Control Command

    4.1.2 VISCA Protocol Control Command Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF...
  • Page 24 Command Function Command packet Note Shutter priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode Iris priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode Bright 8x 01 04 39 0D FF Bright mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF...

  • Page 25: Visca Protocol Inquiry Command

    Command Function Command packet Note P=0-E 0:60% 1:70% 2:80% 3:90% 4:100% CAM_ColorSaturation Direct 8x 01 04 49 00 00 00 0p FF 5:110% 6:120% 7:130% 8:140% 9:150% 10:160% 11:160% 12:180% 13:190% 14:200% CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) 8x 01 04 06 06 02 FF Turn on the menu screen...
  • Page 26 y0 50 03 FF Manual Focus y0 50 04 FF One Push mode CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position y0 50 00 FF Auto y0 50 01 FF 3000K y0 50 02 FF 4000K y0 50 03 FF One Push Mode...

  • Page 27: Pelco-D Protocol Command List

    CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF p: Gamma setting ab cd : vender ID ( 0220 ) mn pq : model ID ST ( 0510 ) 、 y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF U2( 0512 )、U3 ( 0513 ) mn pq rs tu vw FF rs tu : ARM Version...

  • Page 28: Pelco-P Protocol Command List

    Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position Value Low 0xFF Address 0x00 0x5D Value High Byte Response Byte 4.3 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed...

  • Page 29: Troubleshooting

    2) Use soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting the video quality. 5.2 Troubleshooting 1) No video output a.

  • Page 30: Copyright Statement

    6. Copyright Statement All the contents in this manual and its copyright are owned by the company. No one is allowed to imitate, copy, or translate this manual without the company’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
