- Page 2 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Setting up your system -------------------------------------------------------------------------------------4 Care during use ----------------------------------------------------------------------------------------------4 Welcome -----------------------------------------------------------------------------------------------------------5 Package contents -------------------------------------------------------------------------------------------5 Getting to know your ZOTAC Inspire Studio -----------------------------------------------------------6 Front view -----------------------------------------------------------------------------------------------------6 Rear view ------------------------------------------------------------------------------------------------------7 Installing Hardware inside ZOTAC Inspire Studio----------------------------------------------------8 Installing Optane memory module (optional) ---------------------------------------------------------9... -
Page 4: Product Specifications
ZOTAC Inspire Studio Product Specifications q Microprocessor support v Intel Core i7-9700 (8-core 3.0 GHz, up to 4.7 GHz) q Onboard Graphics support v ZOTAC GeForce RTX 2060 Super Mini w/ 8 GB GDDR6 ® v Three DisplayPort 1.4, one HDMI 2.0b (Max 4 output) -
Page 5: Safety Information
ZOTAC Inspire Studio Safety information Your ZOTAC Inspire Studio is designed and tested to meet the latest standards of safety for informa- tion technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. -
Page 6: Welcome
ZOTAC Inspire Studio Welcome Congratulations on your purchase of the ZOTAC Inspire Studio. The following illustration displays the package contents of your new ZOTAC Inspire Studio. If any of the below items is damaged or missed, contact your retailer. Package contents •... -
Page 7: Getting To Know Your Zotac Inspire Studio

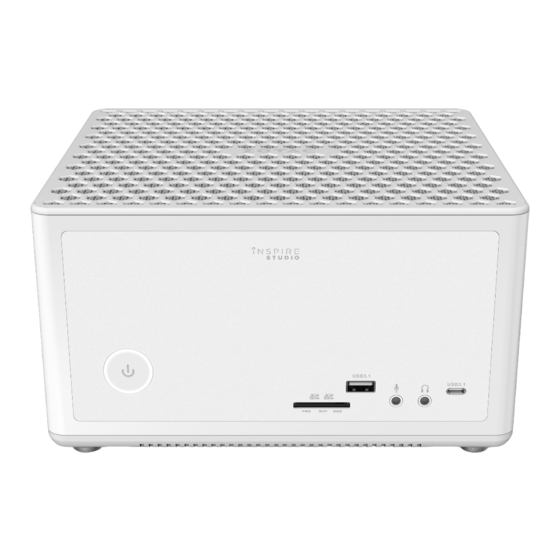

ZOTAC Inspire Studio Getting to know your ZOTAC Inspire Studio Front view Refer to the diagram below to identify the components on this side of the system 1. Power switch The power switch allows powering ON and OFF the system. The ring LED can be disabled in BIOS setting. -
Page 8: Rear View
ZOTAC Inspire Studio Rear view Refer to the diagram below to identify the components on this side of the system. 1. WiFi antenna connectors The WiFi antenna connector supports WiFi antenna module. 2. USB 3.1 ports The USB 3.1 port supports the SuperSpeed USB 3.1 device. Use this port for USB 3.1 devices for maximum performance with USB 3.1 compatible devices. -
Page 9: Installing Hardware Inside Zotac Inspire Studio
ZOTAC Inspire Studio Installing Hardware inside ZOTAC Inspire Studio Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC Inspire Studio. 1. Rotate and remove the thumb screws. 2. Gently remove the cover as shown below. -
Page 10: Installing Optane Memory Module (Optional)
ZOTAC Inspire Studio Installing Optane memory module (optional) 1. Locate the Optane memory slot and remove the two screws. 2. Insert an Optane memory module into the slot at a 45 degree angle. 3. Gently press down on the Optane memory module, and install the screw. -
Page 11: Setting Up Your Zotac Inspire Studio
ZOTAC Inspire Studio Setting up your ZOTAC Inspire Studio You need to connect peripherals before using your ZOTAC Inspire Studio. - Page 12 Follow the on-screen instructions to complete the initial setup of Windows. This process may take several minutes. When your ZOTAC Inspire Studio is not in use, unplug the power adapter or switch off the AC outlet to save on power consumption.
-
Page 13: Using Your Zotac Inspire Studio
Note 2: Enter the network security key if necessary. Configuring audio output Follow the steps below to enable audio output when connecting the ZOTAC Inspire Studio to a TV or receiver via DP/HDMI adapter. Access the Sound settings via the system Control Panel. -
Page 14: Intel ® Optane Tm Technology (Optional)
ZOTAC Inspire Studio Intel Optane technology (optional) ® Intel Optane is a new ultra-high-speed memory technology with 3D XPoint memory media, ® compatible with NVMe storage protocol. The program SetupOptaneMemory.exe is included in the driver DVD and USB flash drive (X:\ OptaneMemory\SetupOptaneMemory.exe). - Page 15 ZOTAC Inspire Studio...
- Page 16 ZOTAC Inspire Studio...
- Page 17 ZOTAC Inspire Studio...
- Page 18 ZOTAC Inspire Studio Restart the system, the following dialog box will display. Click “Yes”. When the Intel Optane Memory interface displays, click “Enable”. ®...
- Page 19 ZOTAC Inspire Studio...
- Page 20 ZOTAC Inspire Studio Click “Restart” to complete enabling the Optane Memory. When the Optane Memory is successfully enabled, the created Intel Optane ® information will show in Device Manager > Disk drivers.
-
Page 21: Disabling Intel ® Optane Tm Memory
ZOTAC Inspire Studio Disabling Intel Optane memory ® Double-click the Intel icon in the lower right corner of the desktop. - Page 22 ZOTAC Inspire Studio When the Intel Optane Memory interface displays, click “Disable”. ® Click “Restart” to complete disabling the Optane Memory.
- Page 23 ZOTAC Inspire Studio When the Optane Memory is successfully disabled, the disabled Intel Optane ® information will show in Device Manager > Disk drivers.
- Page 24 ZOTAC Inspire Studio...
- Page 25 ZOTAC Inspire Studio 291-MB389-04...
