- Page 2 ZOTAC. Products and corporate names mentioned in this manual may not be reg- istered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Installing a hard disk -------------------------------------------------------------------------- 10 Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 11 Positioning your ZOTAC ZBOX --------------------------------------------------------------- 13 Installing the stand ----------------------------------------------------------------------------- 13 Installing your ZOTAC ZBOX to a monitor ----------------------------------------------- 13 IR receiver --------------------------------------------------------------------------------------- 14 Remote control --------------------------------------------------------------------------------- 14 Function keys ------------------------------------------------------------------------------- 14... -
Page 4: Product Specifications
ZOTAC ZBOX Product Specifications q Chipset v AMD M1 q Product Size v 188mm x 188mm x 44mm q Microprocessor support v AMD E-450 (Dual-core, 1.65 GHz) q Operating systems: v Supports Windows XP 32 bit/64 bit, Windows Vista 32 bit/64 bit and Windows... -
Page 5: Safety Information
ZOTAC ZBOX Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor- mation technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system. -
Page 6: Welcome
ZOTAC ZBOX Welcome Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or missed, contact your retailer. Package contents • 1 x ZOTAC ZBOX •... -
Page 7: Getting To Know Your Zotac Zbox

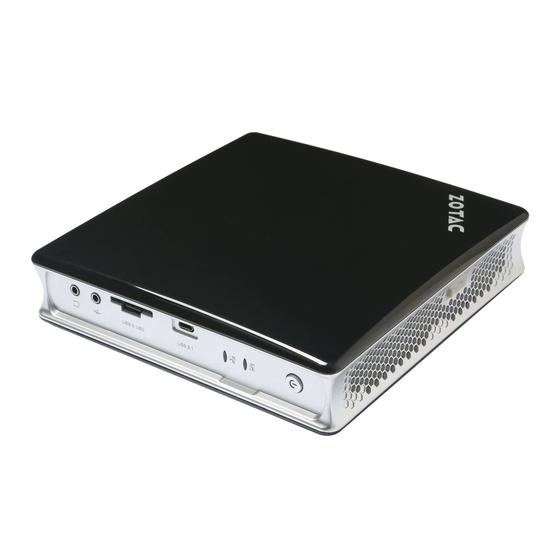

ZOTAC ZBOX Getting to know your ZOTAC ZBOX Front view Refer to the diagram below to identify the components on this side of the system 1. Headphone/Audio Out jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplified speakers or headphones. -
Page 8: Rear View
ZOTAC ZBOX Rear view Refer to the diagram below to identify the components on this side of the system. 1. WiFi antenna connector The WiFi antenna connector supports WiFi antenna module. 2. USB 3.0 ports The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible with USB 2.0/1.1 devices. -
Page 9: Installing Hardware Inside Zotac Zbox
ZOTAC ZBOX Installing Hardware inside ZOTAC ZBOX Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX. 1. Unscrew. 2. Gently remove the cover as the image below. Installing a memory module 1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module into the slot at a 45 degree angle. -
Page 10: Removing The Memory Module
2. Gently press down on the memory module until it locks into place by the arms of the memory slot. Note: This ZOTAC ZBOX accomodates two DDR3 SO-DIMM memory modules. You must install at least one module in one of the two slots. -
Page 11: Installing A Hard Disk
ZOTAC ZBOX Installing a hard disk 1. Locate the hard disk bracket and remove the thumb screw. 2. Lift up on the plastic flap. 3. Insert a 2.5-inch SATA hard disk into the bracket at a 45 degree angle and gently slide into the connector. -
Page 12: Setting Up Your Zotac Zbox
1. Connecting a WiFi antenna module Connect a WiFi antenna module to the WiFi antenna connector. Note: When using the ZOTAC ZBOX, please be sure that the WiFi antenna module is connected to the WiFi antenna connector for the better performance of the WiFi/Bluetooth. - Page 13 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the ...
-
Page 14: Positioning Your Zotac Zbox
Installing your ZOTAC ZBOX to a monitor You can also install your ZOTAC ZBOX to the back of a monitor. To do so: Secure the VESA mount to your monitor with four screws (HNM/M4x8). Place your ZOTAC ZBOX on the VESA mount noting the correct alignment and then secure the PC to the VESA mount with a coin. -
Page 15: Ir Receiver
Enjoy more of your favorite entertainment by MCE (Media Center Edition) remote controller with USB IR receiver (connecting to USB 2.0 port). External USB IR receiver Remote control ZOTAC ZBOX Giga is shipped with a remote control. Follow the instructions below to use the remote control. Function keys Navigation Buttons Playback Buttons ... -
Page 16: Lithium Cell Installation
ZOTAC ZBOX Lithium cell installation 1. Locate the arrow on the rear cover of the remote control, and push the cover as the arrow direction. 2. Remove the rear cover, and insert the CR2032 lithium cells into the battery jar at a 45 degree angle. -
Page 17: Installing Drivers And Software
Note: For best compatibility, please only use the USB 2.0 ports as the OS installation source drive connection. Installing system drivers Before you can use the full features of the ZOTAC ZBOX, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX driver DVD: •... -
Page 18: Using Your Zotac Zbox
Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers. Restart the system. Using your ZOTAC ZBOX Configuring wireless connection To connect to a wireless network, follow the instructions below: Double-click the crossed wireless network icon (pic) on the notification area. -
Page 19: Using A Dynamic Ip (Pppoe Connection)
Configuring audio output via an HDMI device Follow the steps below to enable audio output via HDMI when connecting the ZOTAC ZBOX nano to a TV or receiver via HDMI. Access the Sound settings via the system Control Panel. Under Playback devices, click “AMD HDMI Output”. - Page 20 ZOTAC ZBOX...
- Page 21 ZOTAC ZBOX 291-MA233-00...
