Instruction Manual
Customer Service
US: 1-800-645-2986

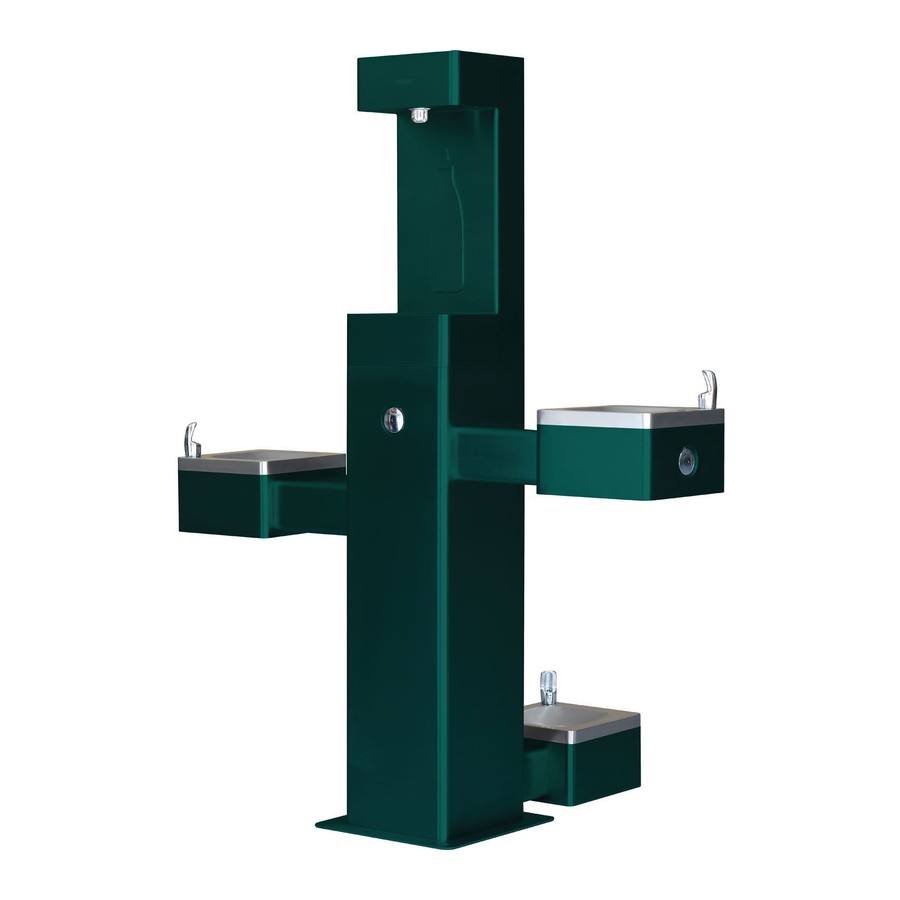

Outdoor Bi-Level Drinking Fountain
Models 761221, 761221BK,
761221BL & 761221GN
Note: This unit is designed to be installed on the surface of an existing or new concrete slab.
Included are the necessary vandal-resistant stainless steel bolts and washers needed
to anchor this unit. Installer must provide a 1-1/2" PVC drain line (if applicable) and water supply
line. All connections are made inside the item through the access doors, as shown in the drawings.
It is recommended to install a shut-off valve (not included) on the water supply.
Manual de Instrucciones
Servicio de atención al Cliente
México: 01.800.681.6940
w/ Bottle Filler & Pet Station
WARNING
• All installation work must be performed by authorized
service personnel.
• Two or more people are recommended to lift and
install the unit.
• To avoid the risk of property damage and/or personal
injury, ensure the mounting surface is adequate to support
450 lbs.
• Check local codes for plumbing requirements prior
to installation.
• Refer to Rough-In Guide (page 4) prior to installation.
• Thoroughly flush all water supply lines of all foreign
matter before connecting to the fixture.
• Check for any leaks before use.
• DO NOT attempt to repair or replace any part of this
fountain unless it is specifically recommended in this
manual. All other services should be referred to a
qualified technician.
• For use with clean, clear potable drinking water only.
• Shut-off water supply during installation to reduce the
risk of water damage.
• Freezing Caution: Before freezing temperatures occur,
refer to the Draining and Winterization section of this
manual (page 13) for proper preparation.
• Installation of a trap on the water drain line may be
necessary; remove trap before winterization draining.
• Failure to follow safety warnings and/or
installation instructions will void warranty.
Distribucion Industrial Globales S DE RL DE CF
1
Manuel d'instruction
Service à la clientèle
Canada: 888-645-2986
Advertisement
Related Manuals for Global 761221
Summary of Contents for Global 761221
- Page 1 • Freezing Caution: Before freezing temperatures occur, refer to the Draining and Winterization section of this manual (page 13) for proper preparation. Models 761221, 761221BK, • Installation of a trap on the water drain line may be 761221BL & 761221GN necessary;...
- Page 2 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station BOTTLE FILLER SPOUT DRAIN PAN PEDESTAL PEDESTAL ARM BUBBLER DRAIN PUSH BUTTON DRINKING FOUNTAIN PET STATION BASE COLOR OPTIONS: SS316 SS316 GREEN SS316 BLACK SS316 BLUE WWW.GLOBALINDUSTRIAL.COM BOTTLE FILLER OUTDOOR PEDESTAL DRINKING FOUNTAIN PET STATION...
- Page 3 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station SPECIFICATIONS 316 Stainless, Laminar Flow, Heavy Duty, Vandal Resistant Features: Finish: SS Finish, Black(BK), Blue(BL), Green(GN) Power: No Electrical Required Bubbler Vandal Resistant Activation Type: Push Button Mounting Type: Floor Mount/Free Standing Product Dimensions: 47-3/4"L x 28-1/2"W x 60-1/4"H...
- Page 4 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station...
-
Page 5: Installation
Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station INSTALLATION • It is recommended that 2 or more people install this unit. • This fountain must be mounted on a solid, flat surface with adequate strength (concrete pad recommended) capable of supporting 450 lbs. - Page 6 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station 2. INSTALL BUBBLERS 2a. Unscrew and remove 2b. Locate the hole on the drinking 2c. Bubblers are now nut and washers from fountain pan surfaces. Align and properly installed. Bubblers (P1).
- Page 7 Instruction Manual Outdoor Bi-Level Drinking Fountain w/ Bottle Filler & Pet Station 4. ATTACH BOTTLE FILLER TO PEDESTAL 4. ATTACH BOTTLE FILLER TO PEDESTAL Using a phillips-head screwdriver, assemble the bottle filler to the pedestal using H4 (x8) M6 x 10 pan head screws. 5.
- Page 8 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station 6. CONNECT WATER INLET LINES • Install a shut-off valve (not included) on the water supply. • All water connections and drains must comply with local codes. Though the rear access windows, connect water inlet lines as illustrated below: Connect (P5) to Spout Connect Inlet Adapter (P2) to Union T-Connector (P3)
- Page 9 Instruction Manual Outdoor Bi-Level Drinking Fountain w/ Bottle Filler & Pet Station WATER INLET LINE CONNECTION BREAKDOWN: SIDE VIEW FRONT VIEW (39-1/4”) (2”) (51-1/4”) (21-3/4”) Install Shut-off Valve (Not Included) (51-1/4”) WATER SOURCE P4: Straight Flow Check Valve: All Water Inlet Connec�ons: OPERATION OF QUICK CONNECT FITTINGS 3/8”...
- Page 10 Instruction Manual Outdoor Bi-Level Drinking Fountain w/ Bottle Filler & Pet Station 7. CONNECT WATER DRAIN LINES • All water connections and drains must comply with local codes. • Through the rear access windows, connect water drain lines as illustrated below. NOTE: All drain lines attach with quick connect connections.
- Page 11 Instruction Manual Outdoor Bi-Level Drinking Fountain w/ Bottle Filler & Pet Station WATER DRAIN LINE CONNECTION BREAKDOWN: SIDE VIEW FRONT VIEW Confirm with local codes for trap and other drainage requirements Reinstall access panel on the base of the pet station pan BEFORE connecting (P11) Drain Tube to (P10) T-Shape Drain Connector;...
- Page 12 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station 8. ATTACH PET STATION TO PEDESTAL Using provided torx key wrench (H1) or torx drill bit (H2), attach the pet station to the pedestal using H8 (x4) M6 flat head screws. H8 (x4) START-UP Initial water flow may have sputter due to air in the water lines;...
- Page 13 Outdoor Bi-Level Drinking Fountain Instruction Manual w/ Bottle Filler & Pet Station STREAM HEIGHT ADJUSTMENT To adjust the water stream height, insert a small flathead screwdriver through the access hole in the center of the push button and turn the adjustment screw. Turn clockwise to raise the stream height and counterclockwise to lower the stream height.
