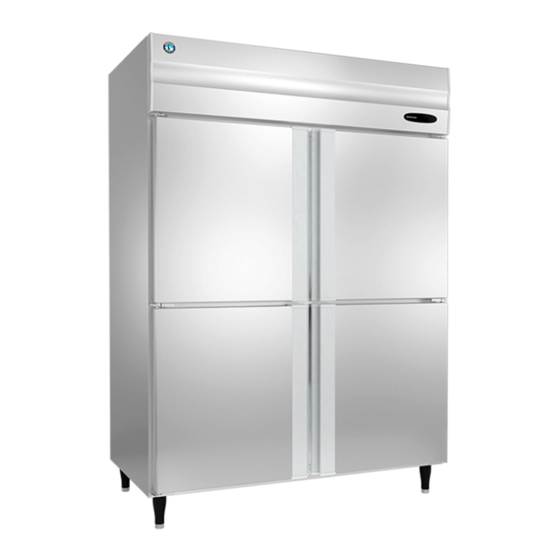

- Page 1 COMMERCIAL REFRIGERATOR / FREEZER HRW - Series HFW - Series HRFW - Series INSTRUCTION MANUAL (ORIGINAL INSTRUCTIONS) 1000529...
-
Page 2: Table Of Contents
CONTENTS PAGE I. INSTALLATION INSTRUCTIONS----------------------------------------------------------1 1. CONSTRUCTION--------------------------------------------------------------------------1 2. ACCESSORIES-----------------------------------------------------------------------------2 3. LOCATION-----------------------------------------------------------------------------------2 4. SETUP----------------------------------------------------------------------------------------3 5. SHELF AND SHELF CLIP---------------------------------------------------------------4 6. ELECTRICAL CONNECTIONS--------------------------------------------------------4 7. DRAIN CONNECTIONS-----------------------------------------------------------------7 II. OPERATING INSTRUCTIONS------------------------------------------------------------8 1. START UP-----------------------------------------------------------------------------------9 2. FRONT PANEL----------------------------------------------------------------------------9 3. CABINET TEMPERATURE SETTING------------------------------------------------9 4. DEFROST---------------------------------------------------------------------------------11 5. INDICATOR LIGHTS-------------------------------------------------------------------1 1 6. -
Page 3: Installation Instructions
ENGLISH I. INSTALLATION INSTRUCTIONS WARNING Do not wet the product or use it in potentially wet conditions. This 1. CONSTRUCTION may cause electrical leakage, Keep Dry 1.1 (HRW-147MS4/HFW-147MS4) resulting in electric shock or fire. The refrigerated unit contains R134a/ Ÿ Machine Compartment Refrigeration Unit... -
Page 4: Accessories
ENGLISH PRODUCT OUTSIDE DIMENSIONS IN MM (WITH LEGS): 1.3 (HRFW-77MS4) HRW-77/ HFW-77 700 (W) x 810 (D) x 2050 (H) Machine HRW-147/ HFW-147 1400 (W) x 810 (D) x 2050 (H) Compartment Refrigeration Unit FW-77 700 (W) x 810 (D) x 2050 (H) HRW-77-HG 700 (W) x 810 (D) x 2050 (H) HRW-147-HG... -
Page 5: Setup
ENGLISH Avoid a site where dripping is not allowed. ¬ Especially, a side-by-side or back-to-back installation (possibly with other manufacturer's unit) may cause condensation between the two units, resulting in dripping onto the floor. Do not expose the unit to direct sunlight or higher ¬... -
Page 6: Shelf And Shelf Clip
ENGLISH 6. ELECTRICAL CONNECTIONS LOCK IMPORTANT This appliance is provided with no power switch or earth leakage circuit breaker, but with over-current protection only. Install an earth leakage circuit breaker with overload protection rated at least 15A on the main power supply. - Page 7 ENGLISH ELECTRICAL WIRING HOSHIZAKI COMMERCIAL REFRIGERATOR DIAGRAM HRW-77 COMPRESSOR OVER LOAD CIRCUIT PROTECTOR TECUMSEH BREAKER AMBIENT DEFROST O.L.P THK9417 AIR SENSOR SENSOR SINGLE PHASE 230V ~, 50HZ 2 POLE 2 POLE CONNECTOR CONNECTOR (BLUE) (WHITE) 3 POLE CONNECTOR (RED) RELAY...
- Page 8 ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR HFW-77 COMPRESSOR OVER LOAD KULTHORN CIRCUIT PROTECTOR AE 2425ZK-SR BREAKER AMBIENT DEFROST O.L.P AIR SENSOR SENSOR SINGLE PHASE 230V ~, 50HZ 2 POLE 2 POLE CONNECTOR CONNECTOR (WHITE) (BLUE) 3 POLE CONNECTOR (RED)
-
Page 9: Drain Connections
ENGLISH ELECTRICAL WIRING DIAGRAM HOSHIZAKI COMMERCIAL REFRIGERATOR HRFW-77 OVER LOAD CIRCUIT PROTECTOR COMPRESSOR BREAKER AMBIENT DEFROST O.L.P AIR SENSOR SENSOR SINGLE PHASE 230V ~, 50HZ 2 POLE 2 POLE CONNECTOR CONNECTOR (BLUE) (WHITE) TEMPERATURE 3 POLE CONNECTOR INDICATOR SENSOR (RED) -
Page 10: Operating Instructions
ENGLISH The drain outlet is at the bottom of the body. Use 8. Do not store bottles or cans near the air ¬ outlet. They may freeze up and break, the accessory to connect the drain hose. causing a risk of injury. 1) Insert the 18 mm diameter end of flexible hose 9. -
Page 11: Start
ENGLISH 3. CABINET TEMPERATURE SETTING 1. START UP IMPORTANT 1) Plug in the unit. 1.The temperature range given below is only the adjustable range. The actual cabinet temperature depends on the ambient 2) The compressor and condenser fan motor will temperature and other conditions. - Page 12 + 2°C. 1) Open the front panel Set temperature (compressor off temperature) Off-cycle defrost (HRW series): -2 to + 12°C 2) Temperature setting: Heater defrost (HFW series): -7 to -23°C Press the set key for 1 second the screen displays Heater defrost (HRFW series): -16 to -23°C...
-
Page 13: Defrost
ENGLISH 4. DEFROST 6. SHUT DOWN Automatic defrost cycle 1) Before shutting down the unit, move the stored foods into another . The automatically defrosts the evaporator 4 hours 2)Unplug the unit or press up/power key from (refrigerator) or 3 hours (freezer) after the controller for 3 seconds . -
Page 14: Before Calling A Service Agent
If the problem still (4) Too packed with foods beyond load line. exists, immediately contact an authorized Hoshizaki service company. 2. When contacting a service company, let them know the model name, serial number, date of installation (see warranty card) and state of the trouble. -
Page 15: Disposal
Hoshizaki warrants to the original owner/user that all Disposed with other household wastes throughout the Hoshizaki branded products shall be free of defects in European union. To prevent possible harm to the material and/or workmanship for the duration of the environment or human health from uncontrolled waste “warranty period”.
