Wen MB500 Manual

Wen MB500 Manual

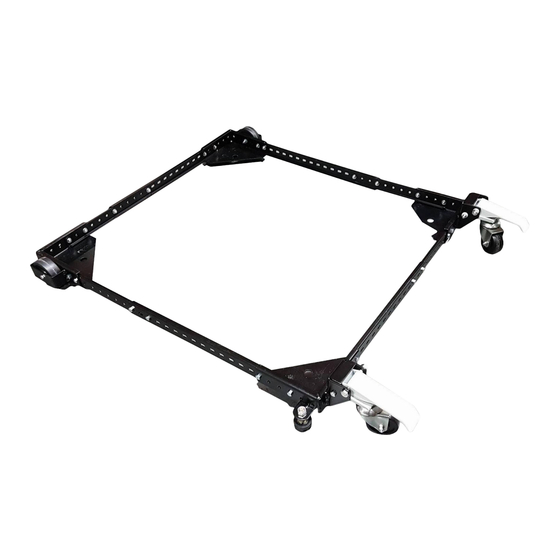

500-pound capacity universal mobile base
Hide thumbs Also See for MB500:

Advertisement

Quick Links

Download this manual
For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
500-POUND CAPACITY
UNIVERSAL MOBILE BASE
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Model # MB500
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB500 and is the answer not in the manual?

Questions and answers

Related Manuals for Wen MB500

Summary of Contents for Wen MB500

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Exploded View and Parts List Assembly Operation Warranty TECHNICAL DATA Model Number: MB500 Maximum Weight Capacity: 500 lbs (225 kg) Minimum Square Size: 11.8˝ x 11.8˝ (300 mm x 300 mm) 35.4˝ x 35.4˝ (900 mm x 900 mm) Maximum Square Size 19.7˝...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. 1.

  • Page 4: Specific Rules For The Mobile Base

    GENERAL SAFETY RULES 14. REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from the saw before turning it on. 15. KEEP GUARDS IN PLACE AND IN WORKING ORDER. 16. DO NOT OVERREACH. Keep proper footing and balance at all times. 17.

  • Page 5: Exploded View And Parts List

    MB500-108 Lever Spacer Step 5 MB500-009 Foot Lever Step 5 MB500-109 Lever Lock Washer MB500-010 Short Side Rail S10 MB500-110 M8 Nut Step 6 MB500-011 Long Side Rail S11 MB500-111 M6x12 Hex Screw Step 6 S12 MB500-112 M6 Flanged Nuts...

  • Page 6: Assembly

    ASSEMBLY WARNING: Do not operate the mobile base until it has been fully assembled according to the instruc- tions. Follow all warnings to reduce the risk of personal injury or machine damage. TOOLS NEEDED (not included): • Tape measure • 13mm (1/2 in.) wrench •...
  • Page 7 ASSEMBLY STEP 3: ASSEMBLE THE SWIVEL PLATES Parts Needed: • Two swivel plates (7) • Two M6x70 hex screws (S5) • Two M6 lock nuts (S3) • 10 mm wrench From the outside of the front corner bracket (4 or 5), insert the M6x70 hex screw (S5) through the lower hole of the caster flange and the swivel plate (7).
  • Page 8 ASSEMBLY STEP 6: ASSEMBLE THE RAILS Parts Needed: • Four short side rails (10) • Four long side rails (11) • Twenty-four M6x12 hex screws (S11) • Twenty-four M6 flanged nuts (S12) • 10mm wrench 1. Carefully measure the footprint of the machine that will be placed onto the mobile base. Add about 1 inch to the dimension to allow clearance for the fasteners.

  • Page 9: Operation

    OPERATION 1. Place the fully assembled mobile base on a level surface. 2. Carefully plan the orientation of the machine onto the mobile base. When the mobile base is in the raised posi- tion, the foot lever side will be lifted 1.2 inches (30 mm) higher that the fixed wheel side. To minimize the risk of the machine being tipped over, the heaviest weight should be positioned at the foot lever side.
  • Page 10 LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
  • Page 12 THANKS FOR REMEMBERING...
