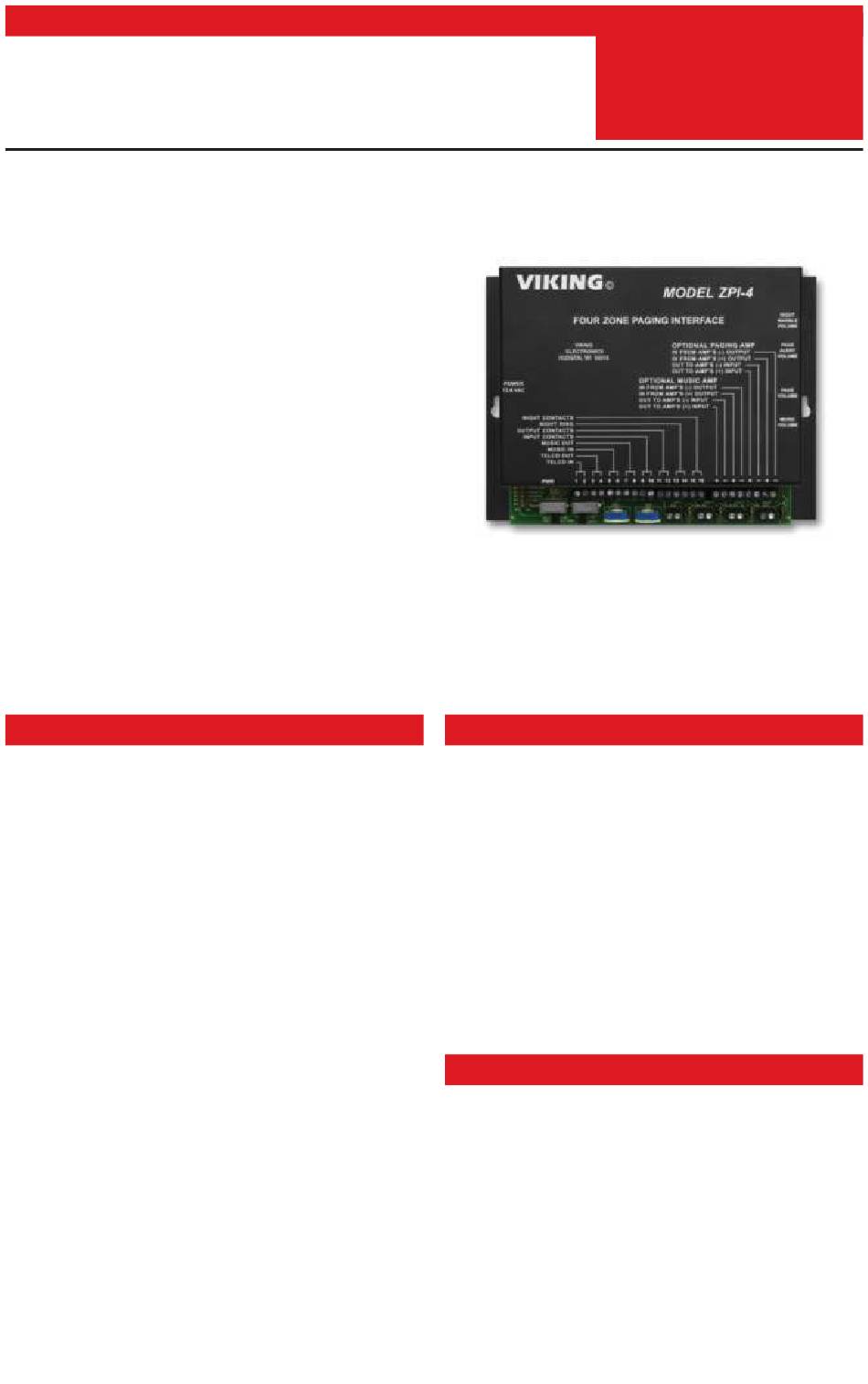

Four Zone Paging Interface
The ZPI-4 is a four-zone touch tone
controlled
paging
switching a line level signal (600 ohms) to
amplifiers, an amplified signal to 70V
speakers, or an amplified signal (200 watts
maximum) to 8 ohm speakers.
The ZPI-4 features balanced audio circuitry
throughout for low noise and compatibility
with balanced paging system inputs and
outputs.There are separate level controls for
paging
and
background
background music can be disabled on a
per-zone basis. Also provided is a night bell
with adjustable volume activated by a dry
contact
closure
PABX/KSU station.
Features
• Touch Tone control of four zones, expandable
to 8 zones
• Switches line level signal to amplifiers or
amplified signal to speakers (amplifier(s) not
included)
• Balanced audio circuitry for low noise
• Night bell warble with adjustable level from
contact closure or ringing analog station
• Input provided for background music
• Separate paging and background music level
adjustments
• Background music automatically mutes in
paged zone(s) in all but single amplifier mode
• All-call and five group call patterns, selected by
Touch Tones
• Selectable page alert tone with adjustable level
• Interfaces with ringing analog station ports,
paging ports and unused phone system trunk
ports
• Disconnects on silence, CPC, busy, touch
tone "#" or time-out
• Screw terminals for all input/output connections
PRODUCT
MANUAL
system
capable
music,
or
a
ringing
of
and
The ZPI-4 is compatible with ringing analog
PABX/KSU station ports (disconnects on
silence, CPC, busy, Touch Tone "#" or time-out)
analog
as well as unused trunk inputs, and will
interface directly with standard paging ports.
• Multiple zone paging for phone systems with
paging ports, unused analog station ports or
unused trunk inputs
• Multiple department manufacturing business
• Multi-level warehouse
• Multiple building office complex
www.vikingelectronics.com
Information: (715) 386-8861
Power:
provided
Dimensions: 211mm x 160mm x 46mm (8.30" x
6.30" x 1.80")
Shipping Weight: 1.5 kg (3.2 lbs)
Environmental: 0° C to 32° C (32° F to 90° F)
with 5% to 95% non-condensing humidity
Relay Contacts:
each (350W@70V, 200W@8Ohm)
REN: 0.5 A
Artificial Talk Battery Voltage: 24V DC
Connections: (32) cage clamp screw terminals
ZPI-4
Four Zone
Paging Interface
July 8, 2020
Applications
Specifications
120V AC/13.8V AC, 1.25A adapter
5 Amps@30V DC/250V AC
