TP-Link TL-MR6400 Quick Installation Manual

Quick Installation Guide

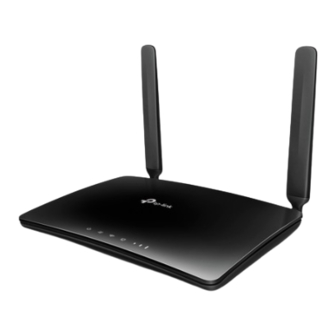

300Mbps Wireless N 4G LTE Router
TL-MR6400
Connect the Hardware
Verify the Hardware
Connection
Enjoy the Internet
Verify the hardware connection by checking the
following LEDs' status. If the Internet LED is
on, your router is connected to the internet
successfully.
Power Internet Wireless
On On On
Note: If the Internet LED does not turn on, please refer to FAQ > Q2.
Wired: Connect your computers to the router's LAN ports via Ethernet cables.
Wireless: Connect wireless devices using the SSID (network name) and Wireless
Password printed on the product label at the bottom of the router.
3
2
Connect the power adatpter
to the router and push in to
turn on the router.
For better internet connection, make sure 3 or 4 bars of the
Signal Strength LED are lit. Otherwise, try relocating the
router to a location that may receive a stronger mobile internet
signal, such as near a window.
Wireless TL-MR6400
1
Install the 4G LTE antennas and
position them upwards.
Insert the SIM card into the slot until
you hear a click.
Note: Micro or Nano-SIM card must be converted using a
standard SIM card adapter provided by TP-Link.
Wired
