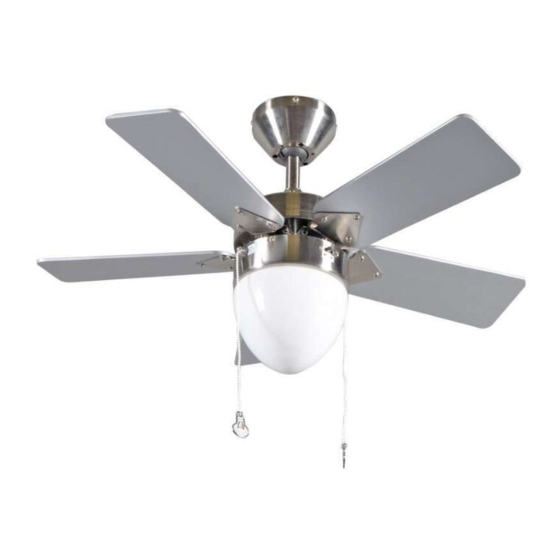

Qazqa 89522 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Item:89522
www.qazqa.com
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 89522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qazqa 89522

Summary of Contents for Qazqa 89522

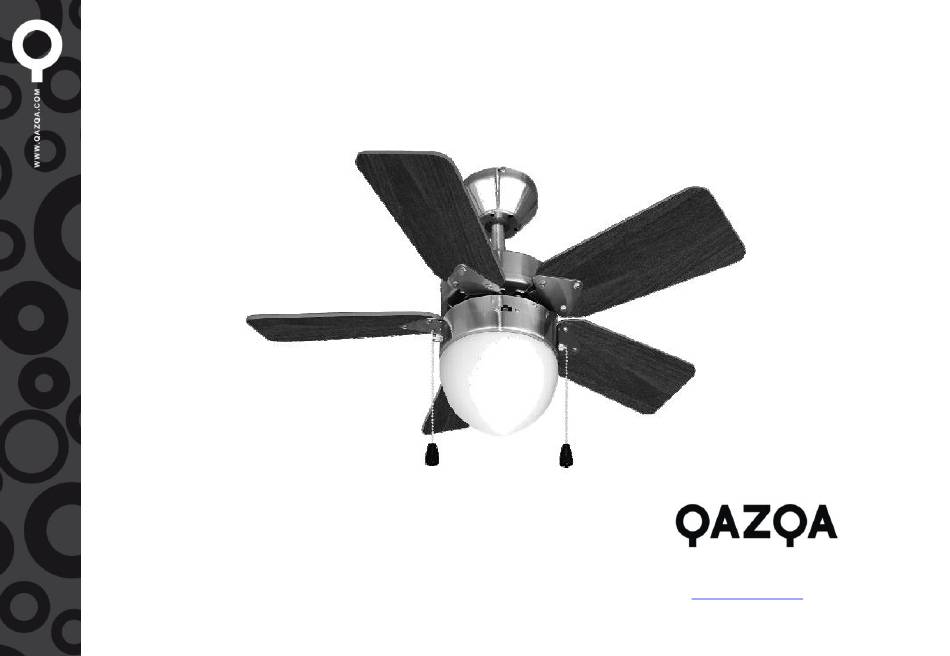

  • Page 1 Item:89522 www.qazqa.com...

  • Page 2: Warning Symbols

    1. Warning symbols Read the instructions Caution Lamp 2. General Safety Instructions Read this instruction manual thoroughly before using the appliance and save it for future reference and if necessary pass the instruction manual on to a third party. WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.
  • Page 3 1) General  Before carrying out any work on the fan, disconnect it from the electrical supply!  Check if the electrical specifications of this appliance are compatible with your installation. The suppler accepts no responsibility for any physical injury or material damage resulting from incorrect use or installation of this fan.
  • Page 4 Electrical safety The appliance should be installed by authorized electrician only acc. to national wiring rules. Specific Safety Rules The fan is to be installed so that the blades are more than 2.3 m above the floor Environmental protection CAUTION! Electrical products must not be thrown out with domestic waste.
  • Page 5 6. The ceiling fan (element) PARTS DESCRIPTION 1. MOUNTING PLATE 2. J HOOK (FOR TEMPORARY HANG UP THE FAN WHEN WIRING CONNECTION) 3. SCREWS 4. SCREWS 5. HANGER BALL 6. UPPER CANOPY 7. DOWNROD 8. CROSS PIN 9. SCREWS 10. COTTER PIN 11.
  • Page 6 7. Installation of the ceiling fan Install the mounting plate by screw (Fig.1) Insert downrod over upper canopy (Fig 2) Then, insert the cross pin over yoke and Cotter pin(Fig3) Connect the wire as the fig show (Fig 4)
  • Page 7 5. Make sure the wiring correct, if you are not sure, pls consult qualified electrician (Fig.5) “L” Black +Brown wire Blue wire “N” Green & yellow wire 6. Hang up the fan and assembly the mounting plate with the motor set by 4 side screws (Fig 6) 7.
  • Page 8 11. Now, the fan is completed (Fig 11) If the fan or light kit is PARTIALLY pre-assembled, you can skip the assembly procedures to next step...

  • Page 9: How To Use

    8. How to use - One pull chain switch is for light control, another one for speed control - The speed can be selected by pressing the speed chain HI-1 pull, MED –2 pull, LOW—3 pull, OFF----4 pull - Light on off can be controlled by pressing the light chain ON-1 pull, OFF–2 pull...

  • Page 10: Troubleshooting

    11.Trouble shooting TROUBLE PROBABLE CAUSES SUGGESTED REMEDY 1. Fan will not start A/ Fuse or circuit breaker blown. A/ Check main and branch circuit B/ Loose power line connections fuses or circuit breakers. to the fan. B/ Check line wire connections to fan C/ Check speed controller’s position.
  • Page 11 PREFACE Your ceiling fan may sometimes have wobble problem when operate due to irregularity in blades or the blade holder. Also, improper assembly in the mounting system may cause some additional problem also bearing crooked. The following procedure to remedy such problem is strongly recommended by us from our past experience in handling the wobble problem.
