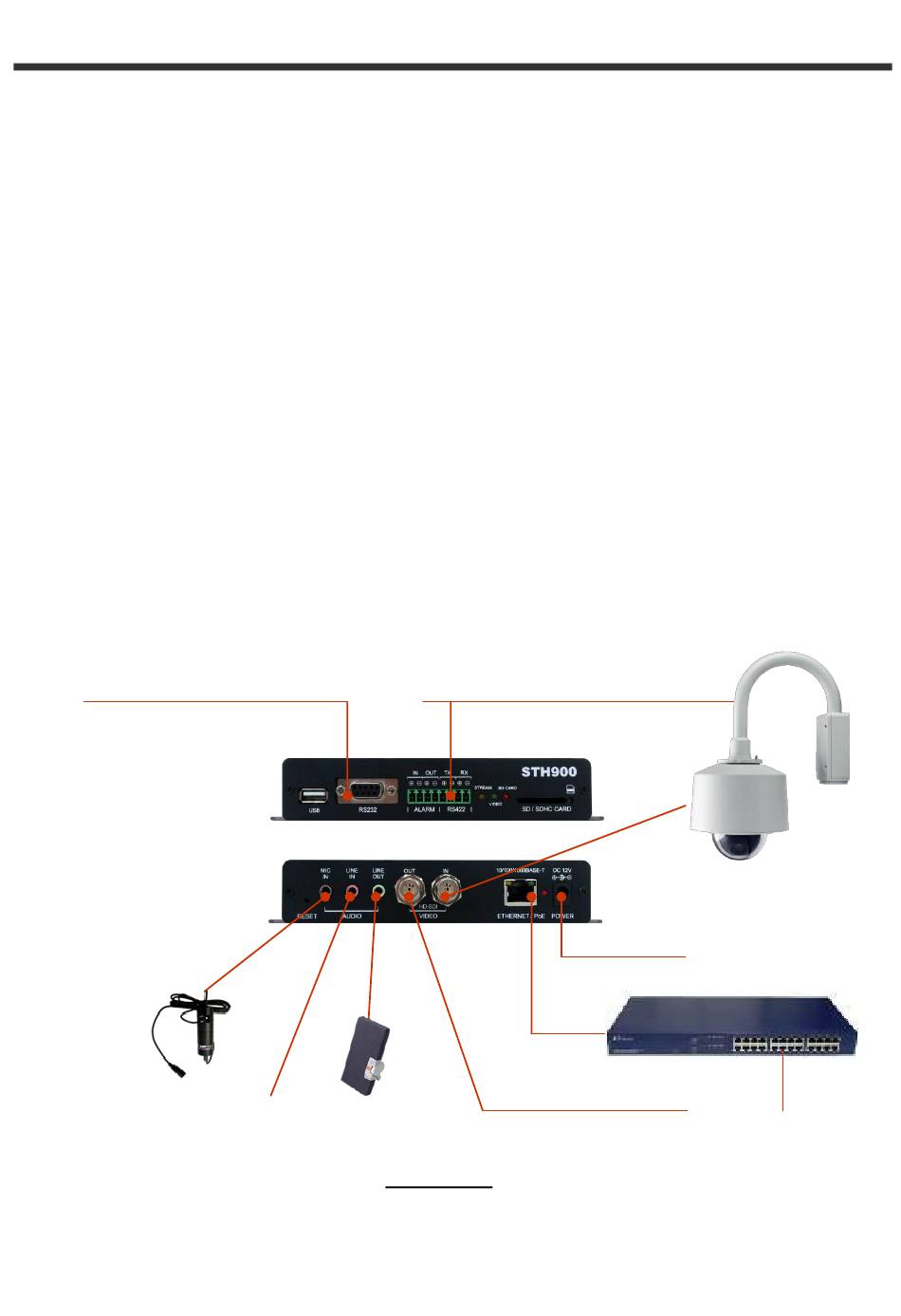

Basic connection

(1) POWER – DC 12V 1A
(2) ETHERNET - LAN cable (RJ45 jack), The opposite side is connected to the PC or network
device like HUB.
(3) Video Input – video signal by HD-SDI output (coaxial cable, BNC jack)
Expert connection
(1) RS232 : an external device control (ex. electronic display (board))
(2) Sensor (Alarm Input) : dry contact (N.O or N.C are available.)
(3) Alarm (Alarm Output) : relay switch (Nominal Voltage 5VDC, 1A)
(4) SD / SDHC card slot : 4GB~16GB SD / SDHC is available
(5) RS422 (RS485) : an external device control (PTZ driver
(6) MIC IN : microphone input
(7) LINE IN : Line Level input (Ø 3.5 stereo jack, use amplified mic.)
(8) LINE OUT : Line Level ouput (Ø 3.5 stereo jack, 8Ω)
(9) Video Output : for maintenance (BNC jack)
Device control (ex. Electronic)
display)
Front ◀
Rear ◀
Mic.
CamPilot STH900
Speaker
Amplified Mic.
PTZ control by RS422 (485)
)
Video Output: for maintenance
Connection
5
Connection
▶ TX + / - is used)
PTZ camera (HD-SDI output)
Power
HUB
Network
