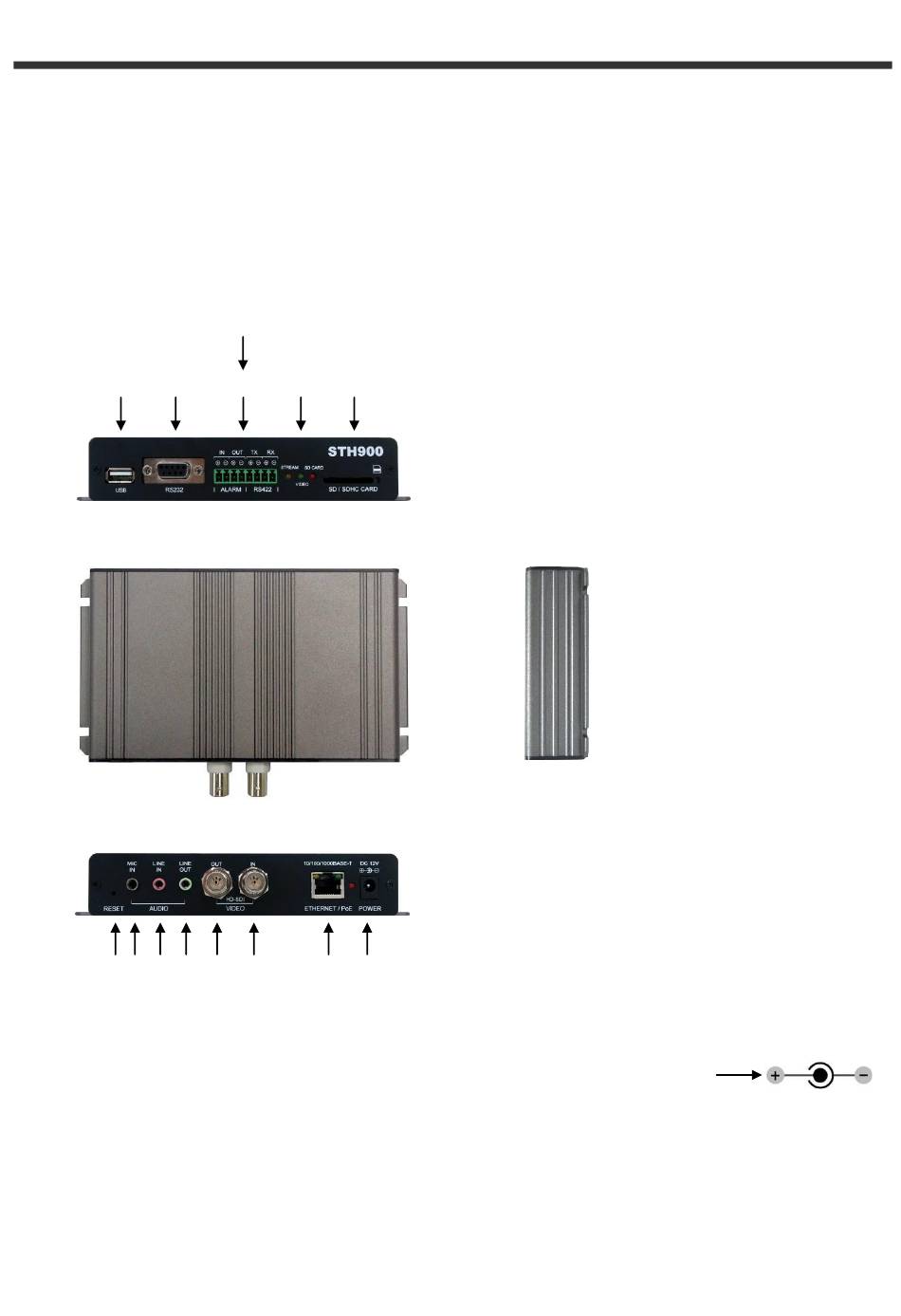

Features and Appearance
CamPilot STH900 is a Network Video Transmitter that transmits real-time high-
resolution digital video and audio data with H.264 high compression rate over Internet or
Intranet.
1 2
1 2 3 4
< 8 Pin connector>
3 4 5
5 6 7 8
1. USB : Reserved
2. RS232
3. ALARM IN / OUT, RS422
4. LED (STREAM, VIDEO, SD CARD)
- STREAM (Yellow) : ON on the accessing status
- VIDEO (Green) : ON when the HD-SDI is inputted.
▶ Front
- SD (Red) : ON when the local storage is detected.
5. SD / SDHC CARD (slot)
▶ Top
▶ Rear
1. Reset (factory Default switch)
2. Audio – MIC IN (Ø 3.5 stereo jack)
3. Audio – LINE IN (Ø 3.5 stereo jack)
4. Audio – LINE OUT (Ø 3.5 stereo jack)
5. Video output (HD-SDI, BNC connector)
6. Video input (HD-SDI, BNC connector)
7. Ethernet (10/100/1000 Base-T LAN)
8. Power (Ø 5.5x2.1,12V 1A)
3
Overview
▶ Side
